Product Description

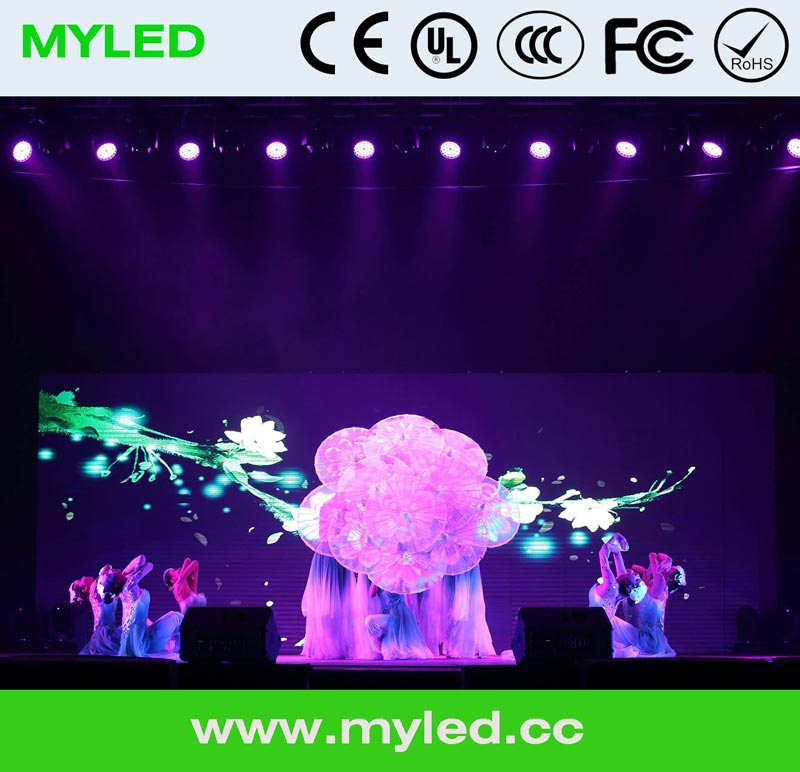

P10mm SMD Full Color LED Display Billboard
1, CE, RoHS, FCC, C-Tick authorized;
2, ISO9001: 2008 QC system;
3, 100, 000 hours life span;
4, water proof, dust proof;
5, AC 90V to 240V power input;
6, video, flash, animation, graphic, text available;
7, PC controlled in real time;
8, installation structure drawing offered FOC;
9, easy for installation;
10, 2 years warranty offered;
11, 1% spare parts offered FOC;
12, training in our factory offered FOC;
13, on-line remote service is available;
14, EXW, FOB, CIF accepted;
15, factory visiting and inspecting is welcome;
16, OEM service offered;
17, models available:
P4mm, P5mm, P6mm, P7.625mm, P8mm, P10mm, P12mm, etc. For indoor use;
P10mm, P12mm, P16mm, P20mm, P25mm, P31.25mm, etc. For outdoor use;
LED Specification |
1 | LED Chip Brand | Red: Opto / Epistar Green & Yellow: Silan |
2 | Wave Length (nm) | R: 625nm; G: 525nm; B: 470nm |
3 | Pixel Configuration | SMD 3 in 1 |
Module & Cabinet Specification |
4 | Physics Distance Between Pixels | 10 mm |
5 | Physics Pixel Density | 10, 000Pixel/m² |
6 | Module Dimensions (W x H) | 320mmX 160mm |
7 | Physics Pixel / Module | 32 x 16 = 512 |
8 | Cabinet Dimensions ( W x H xT) | 960mm X 960mm X 160mm |
9 | Physics Pixel / Cabinet | 96 x 96 = 9216 |
10 | Cabinet Weight | 45 kg |
11 | Cabinet Material | Steel Cabinet / Aluminum Cabinet |
12 | Cabinet Frame | Standard Frame Simple Frame (without backdoor) Lifting Frame (specially for rental use) |
Screen Specification |
13 | Brightness | 1000cd/m² |
14 | Viewing Distance (min, max) | 5 - 300m |
15 | Power Consumption / Screen | MAX : 800 w/m² ; Average: 200 w/m² ; |
16 | Drive Mode | 1/4 scan, constant current driving |
17 | Refresh Rate | 600 HZ |
18 | Frame Rate | 60HZ |
19 | Display Flatness | 0.5mm |
20 | Maintenance | Back maintenance, replace the module |
21 | Led Life Span | 100, 000 hours |
22 | Supply Voltage | AC220V/50HZ, ± 10%; AC110V/60HZ, ± 10% |
23 | Operating Temperature | -20º C~+50º C |
24 | Operating Humidity | 10%-90% |
25 | Storage Temperature | -40º C~+60º C |
26 | Viewing Angle | Horizontal: 120° ; Vertical: 65° |
27 | Grey Scale | Red, green, blue each 16k |
28 | Display Colors | 4096 Billion |
29 | IP Rating | IP20 no water proof, no dust proof |
30 | Aging Time in Factory | More than 72 hours constantly |
Control |
31 | The Software | LED Studio |
32 | System Supported | Win 98 / 2000 / 2003 / XP / WIN7 |
33 | Control Mode | Real Time Control (Synchronous) |
34 | Display Capability | Flash, Video, Graphic, Text |
35 | Signal Supported | RGB, VGA, DVI, etc. |
