Prod Model: |
BL-MR16-3SEMI |
Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
Characteristic: |
High Power and Saving Energy |
Main Market: |
North American, Europe and Australia |
Certificate: |
CE, RoHS |
Power Consumption: |
5.1W |
Weight: |
35g |
Lumens: |
Ww: 240lm Cw: 350lm |
LED Type/ Qty: |
Semi/3PCS |
Dimmability: |
Yes |
Size: |
50x55mm |
Warranty: |
3 Years |
Usage: |
Room |
IP Rating: |
IP65 |
Power Source: |
AC |
Life: |
50000h |
Diffuser: |
Borosilicate Glass |
Base Material: |
Aluminum |
Electric Current Type: |
AC |
Input Voltage: |
85~145V AC or 190~265V AC |
Emitting Color: |
Yellow or White |
Certification: |
CE&Rohs |

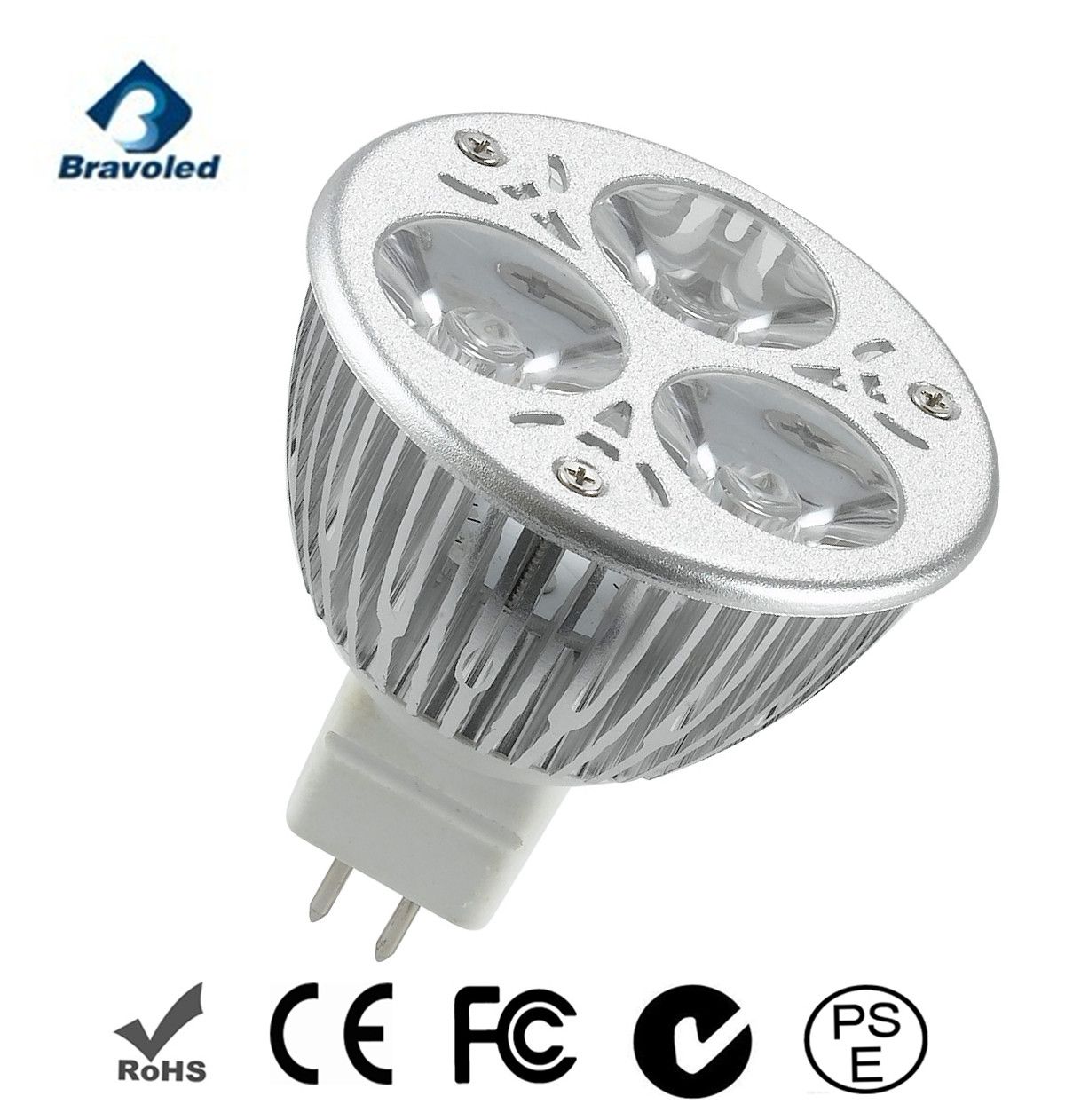

Product Description
* item number: Bl-MR16-3semi
* bulb type: High power LED 3x1w & 3x2w & 3x3w MR16 bulb
* LED chip q'ty: 3PCS LED
* base type: Gu5.3
* LED type: Semiled
* available input voltage: 12V~24V AC/ DC
* applicable dimmers: Triac dimmer for lutron, teviton, legrand, CE, orsam etc.
* input power: 3x1w: 3.3W
3x2w: 4.3W
3x3w: 5.1W
* output power: 3x1w: 2.7W
3x2w: 3.4W
3x3w: 4.1W
* total length: 50 x 55mm
* output current: 3x1w: 320ma
3x2w: 340ma
3x3w: 400ma
* lumen output: 3x1w ww: 180m, cw: 240m
3x2w ww: 205lm, cw: 280lm
3x3w ww: 240lm, cw: 350lm
* color range: 2, 700~6, 500k
* beam angle: 15, 30, 45, 60, 90, 120 degrees
* reflector efficiency: 90%
* life span: >50, 000 hours
* body temperature: <65° C
* LED working temperature: <72° C
* CRI: Ra> 80
* net weight: 35g
* housing material: Aluminium extrustion
* no UV or IR radiation
* certification: CE, RoHS, c-tick.
Item Number |
BL-MR16-3SEMI |
Voltage |
12~24V AC/DC |
Lumens |
WW: 240lm
CW: 350lm |
Dimmable |
YES |
Dimension |
¢ 50 x 55mm |
Available Base |
MR16 |
Weight |
35g |
LED Type/ Qty |
SEMI/ 3pcs |
Power Consumption |
5.1W |
