North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Control System:
Asynchronous or Synchronous
Warranty:
2 Years
Technical Support:
Life Long
Training:
in House Factory Training and on Site Training
Display Type:
LED Video Display
Tube Chip Color:
Full Color
IP Rating:
IP65
Pixel Configuration:
1R, 1G, 1B
Display Function:
Video Display
Scanning Mode:
1/4 Scan
Certification:
CCC
Average Power Consumption:
350W / m²
Pixel Pitch:
10.66
Pixel Density:
8800
Product Description

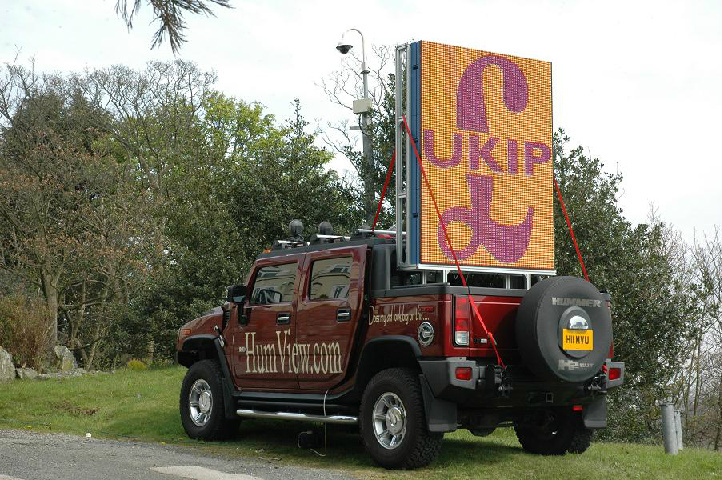

P10.66 DIP Outdoor Screen
Features:
1.1R1G1B with high brightness LED
2.High contrast
3.Lower power consumption
4.High refresh rate to give better color rendition
5.Able to eliminate the mosaic to show good ripple-free video images
6.Special design which can make our P10.66 LED panel both front and rear side maintainance accessible. This will greatly cut down the maintain cost.
7. Ultra high brightness (12000 Nit) with low average power consumption (200W/M2).
8. High refresh rate (greater than 1200 Hz) with software adjustable, suitable for filming.
9. High grayscale ( with perfect visual performance.
10. High Contras ratio (2000:1) with black mask and black coating technique.
11. Wide viewing angle (greater than 140 °in horizontal).
12. IP65 protection rating.
13. Fast and easy to assemble and dismantle.
14. High reliability and long lifespan (MTBF ≥ 5000 hours).
Optional for upgrade:
UltraHigh refresh rate (greater than 48000 Hz) with software adjustable, suitable for filming.
High gray-scale (16bits) with realistic visual performance.
On-site pixel by pixel brightness and color correction bring greater uniformity.
HIVISI WAS THE LED SIGN SUPPLIER FOR 2010 GUANGZHOUASIAN GAMES P10.66 OUTDOOR LED SIGN.
P10.66 outdoor full-color LED display
Item
Details
Parameters
Pixel
Physical
10.66mm
Pixel Configuration
1R1G1B
Module
Module resolution
24*24 pixel
Module Size
256*256 mm
Cabinet
Physical resolution
96*96 pixel H*W
Cabinet Size
1024*1024mm H*W
Physical density
9216 pixels/cabinet
Module quantity
16pcs=4(H)*4(W)
Material
steel
Weight
57KGs
Electricity
parameter
Brightness
9000 nits
Brightness adjusted
100 grade by software or by Auto-optic induced
Color processing
8 bits (256)
Display color
16 millions
Color temperature(k)
7,200k
Physical density
8800 pixels/per square meter
Whole display flatness
≤ 1mm
Best view distance
6 - 45m
View angle
V≥50° H≥110°
Storage temperature
40 degree -60 degree
Working temperature
2 degree - 60 degree
Driving Method
Constant driving current Scan: 1/4
Refresh frequency
up to 3000Hz
Frame rate
25 - 75Hz
Humidity(RH)
10% - 90%
Protection grade
Front IP65, Rear IP54 if not specified
Working voltage
DC 5V
Power supply
AC 110V ±10% / 220V ±10%
Average power consumption
220w/per square meter
Max power consumption
660w/per square meter
MTBF
10,000 hours
Screen lifetime
100,000 hours
Control
System
Control System
Linsn
Signal Interface
DVI
Communication distance
CAT5cable:≤100m Fiber Cable:≥500m
Signal transfer mode
dot to dot synchronized with computer monitor
About Hivision
Guilin Hivision Technology Co., Ltd. Was founded in 1994, starting as a spin-off of a Bank Database System with LED display project at Computer Science department of Guilin Electronic Engineering University. Through the years, Hivision has grown from a small startup to a full-fledge LED sign and light manufacturer.
Hivision is an ISO9001 certified LED manufacturer with extensive in-house R&D capabilities.
Why choose Hivisi?
In-house LED package ability
We complete the entire LED manufacturing process in-house. Our fully automated LED production process includes from die and wire bonding to package, populating, wave soldering and so on.
Three-step QC process with 1st class inspection equipments
Our strict QC process involves 3-step:
1. Incoming Quality Assurance -BOM
2. Inspection Process Quality Control -Producing
3. Final Quality Assurance - Finished product
Throughout these process, we conduct brightness, white balance, vibration and turning-in tests starting with modules, then panels and completed displays. Once finished, we perform high-pressure water resistance assessments to conform to IP65 standards.
Lastly, we assemble the LED cabinets for video aging and on-site simulations, as well as aesthetic inspections on cabinets and internal components. And prior to shipment, all spare parts are evaluated one last time.
Backed by heavy investment and a strong R&D team composed of 20 professionals with average ten years' experience covering software, firmware, hardware, and mechanical engineering, we are able to provide to you customized need.
Aftersales service
When you receive your shipment, you will find an array of materials to assist you with installation and operation. Documentation and user manuals, as well as software will provide you with all the information that you need to get your LED displays up and running.
Technical support
Free training for operation, maintenance and trouble shooting before the shipment in factory
Life-long free Technical support through Skype and Teamviewer (remote operating your computer).
We strive to understand, inspire and enable our customers and partners to turn their large image dreams into results with known outcomes. We are keeping the aim to add value, through our industry leading competence, with a complete range of high impact screens for permanent installations as well as the rental and staging markets. If you are looking for a reliable partner to realize your project, Hivisi is the right man for the job.
