Prod Model: |
UP-B230M |
Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
Display: |
Blue LCD Display |
Gobo: |
17 Fixed Gobos + Open |
Color: |
14 Colors + Open |
Ballast: |
Electronic Ballast |
Prism: |
8-Faced Prism |
Material: |
Aluminum Alloy |
Emitting Color: |
Changeable |
Control Channel: |
16CH |
Strobe: |
Combined Type Double Strobe |
Control Mode: |
Dmx Signal Control |
IP Rating: |
IP20 |
Certification: |
RoHS |
Light Source: |
Osram P-VIP 230W 7r |
Voltage: |
AC110~240V |
Product Description

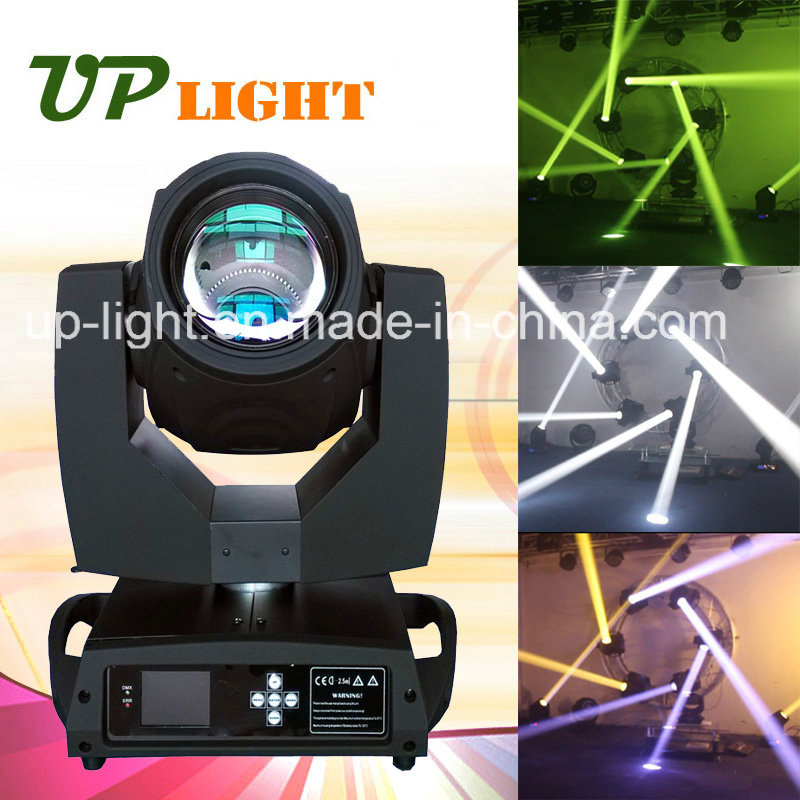

moving head sharpy 230w 7r beam dj light
Youtube Beam Demo
https://youtu.be/9ILMNZMzj-Q
https://youtu.be/-UZwem5vDlI
Input voltage:100-240V, 50/60Hz
Machine Power:500W
Light source:Osram P-VIP 230W;PHILIPS MSD Platinum 7R;YODN MSD Platinum R7 230W;
Color system:One color wheel with 14 colors + white. Color fitters can be changed.
Gobo system:One fixed Gobo wheel with 17 gobos +open with shaking function.
Channel :16CH;
Beam angle:0° ~8 °
Color temperature: 8, 500 K
Average life: 2, 000 h
Lens:3pcs Yilong lens group
Strobe:Support mechanical strobe & adjustable speed stobe effect
Prism:8-faced prism(16/24prism for option);
Focus:0%~100% linear focusing
Frost:0%~100% linear frost
Control mode:DMX512 signal control with 3 pin interfaces & LCD display
Ballast :Electronics ballast and AC/DC power supply. Power factor is more than 99%,
THD<20%.
Head movement:- PAN = 540° - TILT = 270°, 8bit/16bit precision scanning with auto position correction;
It is 100% high copy Claypaky.
Environment temperature:-15° C ~45° C
IP rating:IP20
Shell material:Aluminum alloy composites plastic
Package size:523*337*511mm
Gross weight:19KG
Channel list:
Channel | function |
Ch 1 | Pan |
Ch 2 | Tilt |
Ch 3 | Pan fine |
Ch 4 | Tilt fine |
Ch 5 | Pan/Tilt speed |
Ch 6 | Dimmer |
Ch 7 | Strobe |
Ch 8 | Atomization |
Ch 9 | Color |
Ch10 | Color fine |
Ch 11 | Gobo |
Ch 12 | Gobo shake |
Ch 13 | Prism |
Ch 14 | Prism rotate |
Ch 15 | Prism amplification |
Ch 16 | Focus |
Ch 17 | Lamp on/off |
Ch 18 | Reset |
