| Prod Model: |
MHS 575II |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
Product Description
Moving Head Light, Moving Head Wash, Moving Head Spot, Stage Lighting, DMX Light,
Stage Light, Professional Lighting, Disco Light, DJ Light, DJ lighting

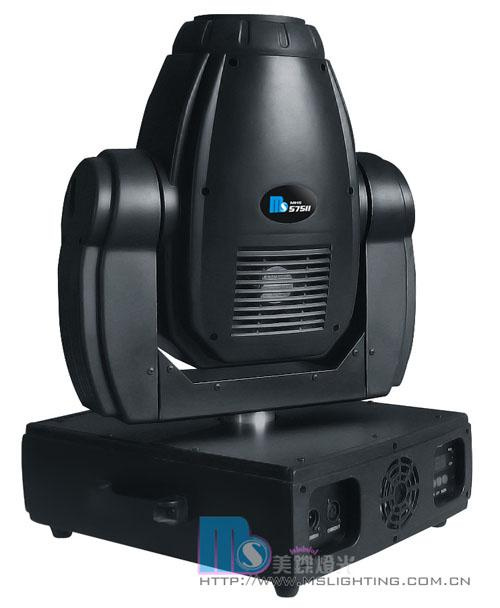

MHS 575II spot
Channels: 12CH
Power: 220V 50Hz/60Hz
Lamp: HMI 575W
Power Consumption: 680W
Gobo wheel: 7 gobos + open
Color wheels: 7 colors + open
Prism wheel: 3-facet prism
Color wheel: 7 high purity over heat glass color slices(white, red, yellow, blue, green, Orange light blue, light red, rainbow effect)
Gobo wheel: 5 high dense aluminum gobos + 1 glass gobo + 1 effect gobo + open + rainbow effect
Focusing: Motorized focusing
Prism: 3-facet prism, prism rotation, speed adjustable
Protection: High dense temperature-control over heat circuit
Control signal: DMX 512 12CH
Power supply: 220V 50-60Hz
Lamp: HMI / MSI 575W discharge lamp
Average life: 750 hours
Lens system: High dense quartz lens complex
Cooling and Ventilation: Super power
Protection: Automatic over heat protection and anti-disturbance circuit
Housing: Fire-resistant ABS lacquered under high temperature Hanger is safe and stable, convenient for unloading, with horizontal, slant, reverse options.
DMX 12CH:
CH 1:
CH 1: Color Wheel
CH 2: GOBO WHEEL
CH 3: Gobo Rotation
CH 4: Dimmer/ Shutter/Strobe
CH 5: Pan
CH 6: Tilt
CH 7: Pan Fine
CH 8: Tilt Fine
CH 9: Pan/Tilt Speed
CH 10: Prism & Prism Rotation
CH 11: Focus
CH 12: Reset.
MS Lighting is a professional stage lighting manufactory in China, Our products are LED Light, moving head light(spot/wash, 150W-1200W), DMX scannner, effect lights, disco lights, laser etc.
Our products are very popular by professional from all walks of life; It makes the perfect stage effect with the others stage lighting products. We have excellent quality products and the best after-sales service.
The aim of our work is your satisfaction
This is the good factory that your first choice.
