| Prod Model: |
JNT-888 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Certificate: |
CE |
| Color: |
White Light+Cmy Color Change System |
| Lamp Weight: |
132kg |
| Packing Size: |
780*870*1630mm |
| Body Material: |
Aluminum Alloy |
| IP Rating: |
IP65 |
| Operating Voltage: |
220-240V |
| Projection Distance: |
4km |
| Lighting Bulbs & Tube: |
Xhm3kw/4kw/5kw//7kw Xenon Bubble |
| Application: |
TV Tower, Skyscraper, Stadium, Hotel, Park |
Product Description

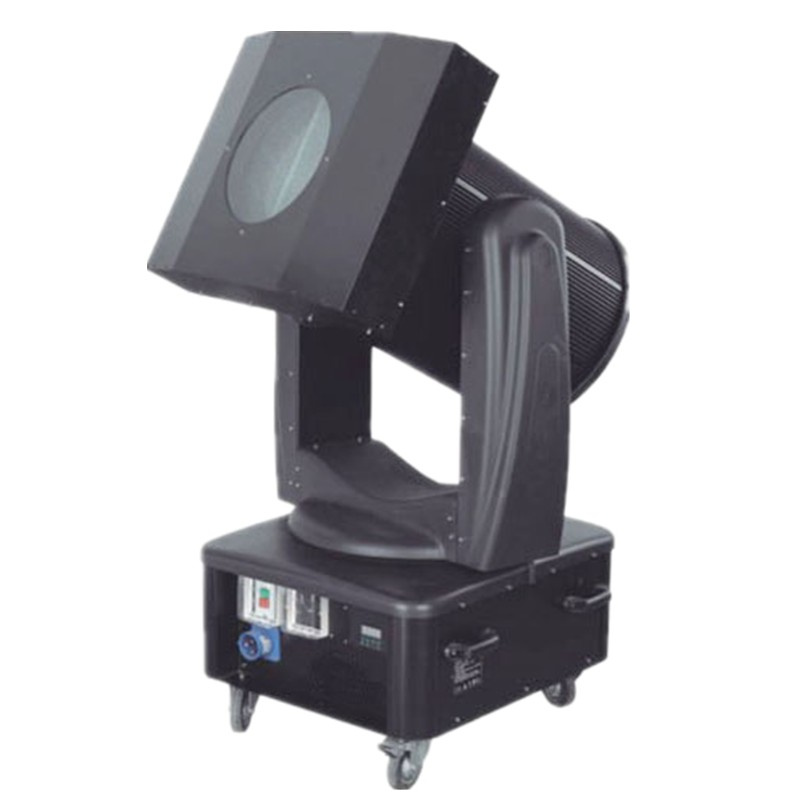

Moving Head Color Change Search Light
Outdoor floodlight can be widely used in TV tower, skyscraper,
stadium, grand hotel, theme park, amusement park,
tourist attractions and large outdoor performance.
Function information: Special design reflective bowl.
Produce a maximum brightness output. White light+CMY color change system,
can be combined in various colors. Parallel light output,
projection distance up to 4km, beam diameter: 250mm.
The airframe has the overheating, overload, short circuit,
voltage loss protection, shockproof, waterproof (LED) electronic set and liquid crystal display.
| Voltage: AC220V-240V 50Hz / 60Hz | Power: 2500W/3500W/4200W/5600W/7500W |
| Light bulb: XHM3KW/4KW/5KW//7KW Xenon bubble | Bulb life: 800 hours |
| Color: White light+CMY color change system, Combined into seven color | IP Code: IP65 |
| X-axis: 360& deg; , is equipped with the automatic error correction function, can automatic correction lamps position. X-axis fine-tuning: 5.4& deg; , position accurately | Y-axis: 224& deg; , has the photosensitive error correction function, can automatic correction lamps position. Y-axis fine-tuning: 5.4& deg; , position accurately |
Size of lamp: 700*790*1430mm
Packing size: 780*870*1630mm | Lamp weight: 132KG Including packing: 162KG |
Control signal: DXM-512 program of the single machine go function, Program of multiple master-slave synchronization function control signal reset function. X axis y reverse.
|
Thank you for your time to reading,If u have any quetion,
Pls contact me:Katlin
Guangzhou JINNAITE Stage Lighting Equipment Factory is a professional manufacturer of stage lighting and outdoor lighting. Our products are also CE-certified and RoHS Directive-compliant. The main products are: Outdoor searchlight, Moving head light, Laser light, LED PAR light, LED effect light, Light controller, Follow spot light, Beam light, Stage effect machines. Our products can be widely used in places of entertainment like DJ, Club, all kinds of stage, party, and outdoor building. We offer comprehensive services from design to product assembly. Send us your custom requirements and we'll have a sample ready in just three days. Why not contacting us for high quality products with competitive price!
