Model No Rubik 6
Pixel pitch6.64 mm
Density22682pixel /m2
Pixel configurationRGB 3-in-1 SMD
Brightness(White)2600 nit
Optima visual distance5m
Max.power consumption280W/ m2
Average.power consumption93W/ m2
Recommendation size

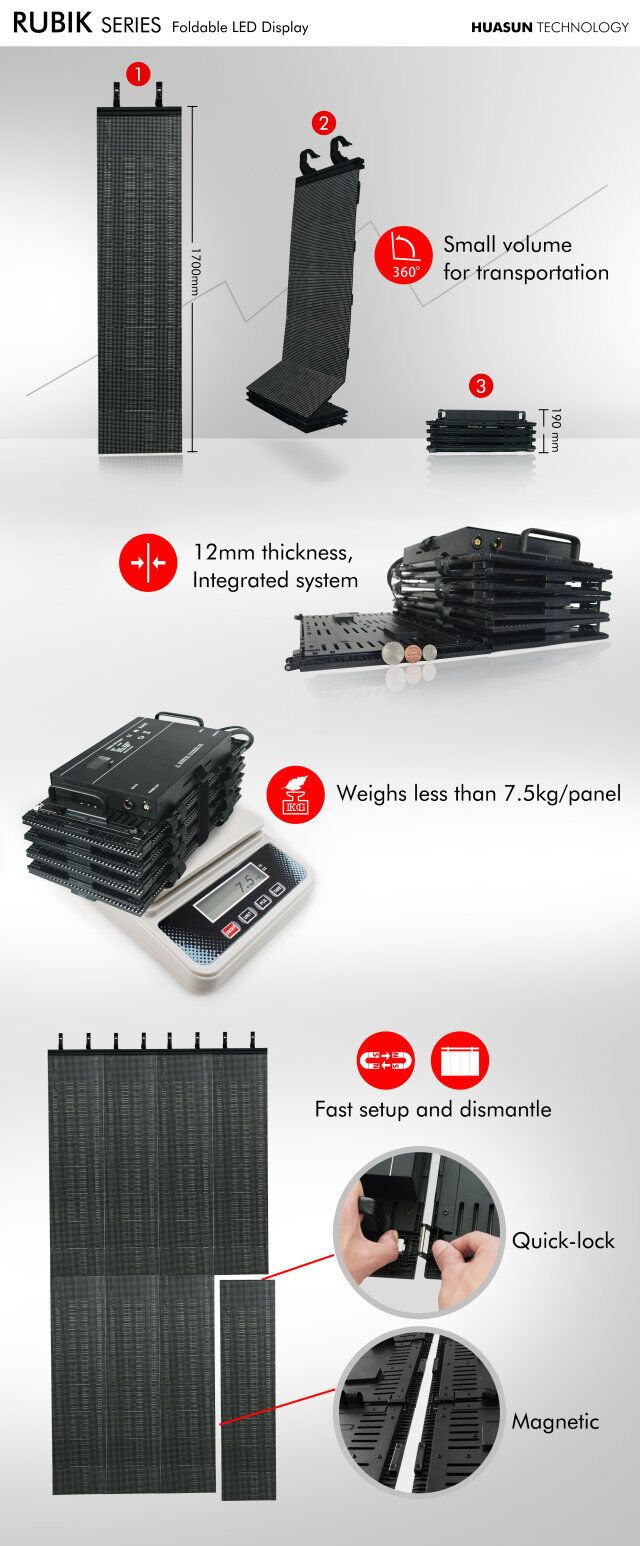

(Size can be customized)W=425mm L=1700mm T=25mm
Weight10.5Kg/sq.m
Work voltageDC 24V
Brightness level16 levels
Bit depth per color16 bit
Bit depth per pixel48 bit
Visual angleHorizontal:120 degree ; Vertical:120 degree
Refresh rateMore than 7000Hz
Display mode1280X1024
Drive modeConstant current
Signal type
AV,S-Video,VGA,CVBS,HDMI,DVI
Control distanceHSYV; less than 100m
Body structurePlastic,Metal
Ingress protectionIP 54
Ambient temperature-20~+50 degree
Relative humidity10%~90%
InstallationHang
Power systemPower-600,Power-1200,Power system
Applications:
