| Prod Model: |
LS-HBN420-LITE |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Structure: |
6*7 |
| Light Efiiciency: |
160lm/W |
| Lumen: |
67200lm |
| Available Angle: |
10, 25, 40, 60, 90, 120 Degree |
| Reference Direct Replacement: |
1000-1400W Metal Halide |
| Lamp Holder: |
Ring |
| MOQ: |
1 Set |
| Price With Bridgelux Chip: |
640 USD |
| Price With CREE Chip: |
890 USD |
| Package: |
Wooden Case Package |
| Lamp Body Material: |
Aluminum Alloy |
| IP Rating: |
IP66 |
| Certification: |
UL |
| Color Temperature: |
Optional |
| Beam Angle: |
Optional |
| Power: |
420W |
Product Description

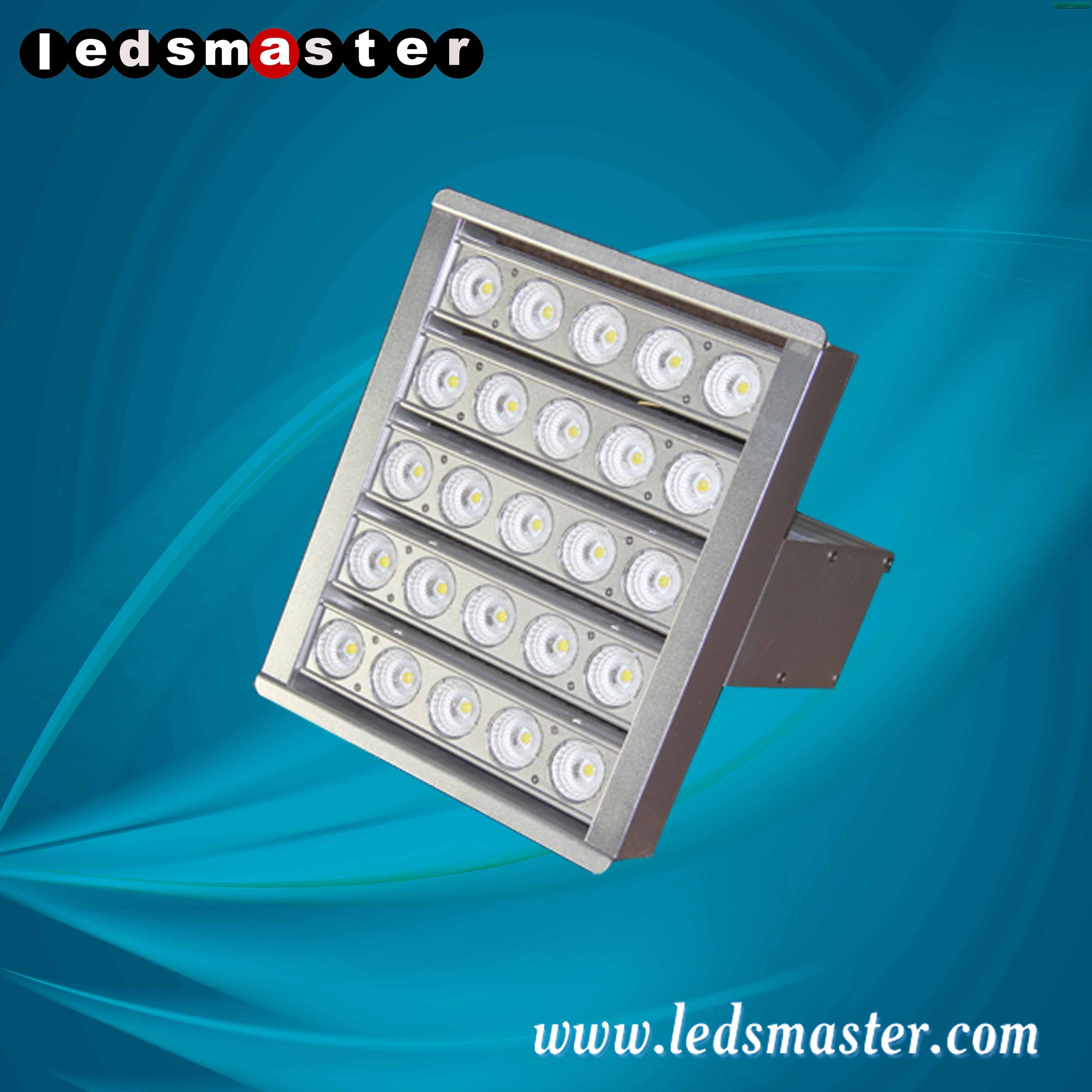

Ledsmaster 400W LED high bay light dimmable waterproof industrial factory
Feature
* Solar led Lighting in the world!
* PremiumPrecise Optical Lens System, 2-10 times brighter than conventional light
* Modular Design, Easier Maintenance
* Direct Heat Path Technology, 2-5 times better stability
* Anti-Glare System, suitable for any occasions
* IP66, underwater use support
* 5 Years Warranty!
TECHNICAL PARAMETER
No. | Model No. | Power | Light efficiency | Lumen (White) | Equal Lumen (White) | Available Angle | Reference Direct Replacement | Color Temperature | Light Body Size
LxWxH (mm)
exclude holder | Light Weight
(kg) | Working Voltage |
|
| 1 | LS-HBN100-LITE | 100W | 140lm/W (CREE 120lm/W) | 12000lm | 24000lm | 10,25,40,60,90,120 degree | 200-300W
Metal Halide | 2800-3500K
5000-6000K
6500-7500K
(6500-7500K not available in CREE) | 300X160X215 | 3.5 | 90-295V AC |
| 2 | LS-HBN150-LITE | 150W | 140lm/W (CREE 120lm/W) | 18000lm | 36000lm | 10,25,40,60,90,120 degree | 300-450W
Metal Halide | 300X225X215 | 5.5 | 90-295V AC |
| 3 | LS-HBN200-LITE | 200W | 140lm/W (CREE 120lm/W) | 24000lm | 48000lm | 10,25,40,60,90,120 degree | 450-600W
Metal Halide | 300X290X215 | 6.5 | 90-295V AC |
| 4 | LS-HBN250-LITE | 250W | 140lm/W (CREE 120lm/W) | 30000lm | 60000lm | 10,25,40,60,90,120 degree | 500-650W
Metal Halide | 355X300X215 | 8 | 90-295V AC |
| 5 | LS-HBN300-LITE | 300W | 140lm/W (CREE 120lm/W) | 36000lm | 72000lm | 10,25,40,60,90,120 degree | 800-1000W
Metal Halide | 420X300X215 | 9.5 | 90-295V AC |
| 6 | LS-HBN420-LITE | 420W | 140lm/W (CREE 120lm/W) | 50400lm | 100800lm | 10,25,40,60,90,120 degree | 1000-1400W
Metal Halide | 485X350X215 | 13.5 | 90-295V AC |
| 7 | LS-HBN560-LITE | 560W | 140lm/W (CREE 120lm/W) | 67200lm | 1344000lm | 10,25,40,60,90,120 degree | 1200-1400W
Metal Halide | 485X450X215 | 16.5 | 90-295V AC |
| 8 | LS-HBN640-LITE | 640W | 140lm/W (CREE 120lm/W) | 76800lm | 1536000lm | 10,25,40,60,90,120 degree | 1200-1400W
Metal Halide | 550X450X215 | 19 | 90-295V AC |
| 9 | LS-HBN720-LITE | 720W | 140lm/W (CREE 120lm/W) | 86400lm | 172800lm | 10,25,40,60,90,120 degree | 1600-1800W
Metal Halide | 615X450X215 | 21 | 90-295V AC |
Company file
Ledsmaster Technology Co,Ltd was established in 2005,
located in BaoAn ,Long Hua ,Shenzhen City ,Guangdong province ,China.
As a professional manufacturer of LED lights with years of experience ,
Ledsmaster have succesfully acquired more market shares around the world
and gained the great reputation for reliable professional and classic services .
We manufacture led light such as flood light, fish lighting, street light, highbay light, billboard light,
widely applied to indoor and outdoors.
