| Prod Model: |
BL-WS3A-36W LED Wall Washer |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Dimension: |
335*143*200mm |
| Weight: |
4.8kg |
| IP Grade: |
IP65 |
| Color: |
White /RGB |
| Light Way: |
RGB |
| Sample/OEM Service: |
Acceptable |
| Power: |
36W |
| Light Efficiency: |
70-80lm/W |
| Life Time: |
50000hrs |
| Style: |
Decorative |
| Material: |
Aluminum |
| Certification: |
CE |
| Voltage: |
90-264V AC |
| Shape: |
Rectangular |
| Light Source: |
Edison Chip |
Product Description

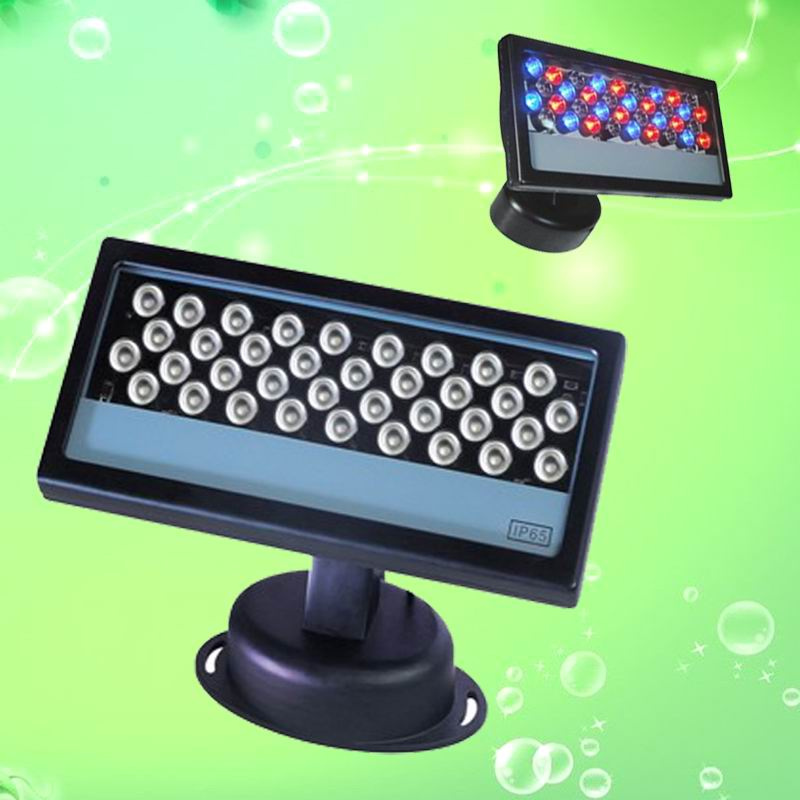

Name: LED Wall Washer / China LED wall washer /LED wall washer IP65 /RGB LED wall washers
Type: LED Bl-WS3A-36W
16 million color in DMX RGB mode
Beam angle: 15/ 30/ 45 Symmetrical light distribution
Communication: DMX512 or DMX512A
Optics: Optical grade PC collimator
Max throw distance: 20 meter max
Housing: Molded aluminum alloy with black powder coat finish
DMX capability: Built in DMX512 decoder
DMX connectors: 3 pin XLR male and female connector with 0.3m wire length
Auto program: 10 preset color changing programs, selectable by user
Humidity range: 0% to 95% non-condensing humidity
Dimension(L*W*H): 335*143*200 mm
Weight: 4.8kg
|
Brightled wall washer light series |
|
|
|
|
|
Picture |
LEDchip |
LED Qty(pc) |
Power(w) |
Size(mm) |
Voltage |
Color |
View angle |
|
BL-WS3A48W |
Edison |
36 |
36 |
335*148*205 |
100-240v AC |
W/WW/CW/RGB |
15-60 |
|
BL-WS3A12W |
Edison |
12 |
12 |
500*75*160 |
|
BL-WS3A15W |
Edison |
15 |
15 |
620*75*160 |
|
BL-WS3A18W |
Edison |
18 |
18 |
740*75*160 |
|
BL-WS3A24W |
Edison |
24 |
24 |
1000*75*160 |
|
BL-WS3A30W |
Edison |
30 |
30 |
1240*75*160 |
|
BL-WS3A36W |
Edison |
36 |
36 |
1480*75*160 |
Brightled Lighting Technology Co., Limited, is a national high-tech enterprise of energy saving, focusing on design, R&D, production, export and technical support of LED light source and products.
Brightled Lighting not only has an excellent R&D team and management team, but also has strategic cooperation with experts, consultants, etc in the LED lighting field. Through 11 years development, Brightled Lighting owns core technology and experiences in LED Lighting products development, optical design, mould development, etc. We have developed many series of LED lighting products, including Series universal for both Outdoor and Indoor application, Series for Project and Landscape lighting, Series for Indoor Decoration, Series for Power LED lighting. Most of our products have gained CE, UL, RoHS certificates and so on.
"High quality products and best service" is the first article of our company core values. We regard it as our mission to provide high quality products with the best service at a most reasonable price in the industry and to deal with customers in an honest and responsible manner.
Bright LED Change life Bright.
