| Prod Model: |
L-FW5050RGB15GJT |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Type: |
Decoration Table Lamp |
| Style: |
European |
| Usage: |
Festival, Landscaping, Commercial, Home |
| Light Source: |
with Light Source |
| Base Type: |
LED Fountain Light |
| Certification: |
PSE, Reach |
| Emitting Color: |
RGB |
Product Description
Quick Details
Light Source: LED
Item Type: Light Strips
LED Light Source: LED
Type: Flex LED Strips
Input Voltage(V): DC5v
Lamp Power: 10w
Working Temperature(ºC): -20 - 50
Working Lifetime(Hour): 50000
Certification: CE, RoHS
Emitting Color: Changeable, RGB
Place of Origin: Guangdong, China (Mainland)
Brand Name: LF
Model Number: L-FW5050RGB15GJT
product name: led strip light dmx strip DC5V 30leds
IC type: LPD6803 LED
Led/m: 30
IC/m: 30
LED chip type: Epistar
Image Pixel: 30
Waterproof Grade: IP67
Max Power: 10w
warrenty: 2 years
Packaging & Delivery
Packaging Details: | led strip light dmx strip DC5V 30leds, Anti-static,plastic packaging ,carton box |
|---|
| Delivery Detail: | 3~10 after confirm the order |
|---|

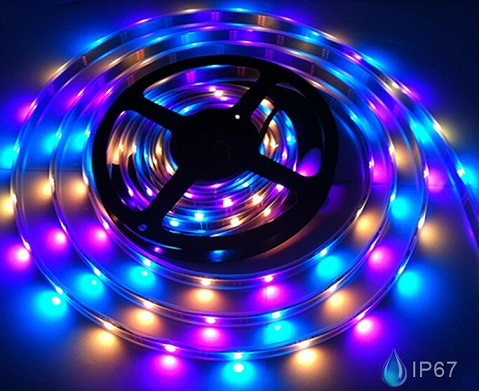

led strip light dmx strip DC5V 30leds
Parameter:
1) Voltage: DC5V
2) IC type: LPD6803
3) IC quantity: 30pcs/meter 6803 led strip
4) LED type: SMD5050 RGB
5) LED quantity: 30pcs/meter
5) Pixel: 30pcs/meter
7) Max power: 10W/meter
8) Bit: 5
9) Greyscale: 32
10) Size: 5000x12x3mm (non waterproof)
11) Package: 5meters/reel/anti-static bag
Connection:
1) Signal wire: DC+, CLK, DAT, GND
2) DC+ and GND connect to power supplier; CLK, DAT and GND connect to controller
3) Relative Controller: SPI controller support LPD6803; when use DMX decorder, can connect to DMX system
4) Support online control
Color:
1) Each pixel can be controlled individually
2) Can show any color
3) Can be used as flexible led display screen to show image and video
Installation Notice:
1) Make sure the connection is correct according to the diagram
2) Pay attention to the parameters limit of voltage. DO NOT run over the peak value
3) Keep the surface of installation clean and smooth avoid breaking off
4) Avoiding the crook area just the position of LED and other components, in order to protect the product and extend the life span of the product
