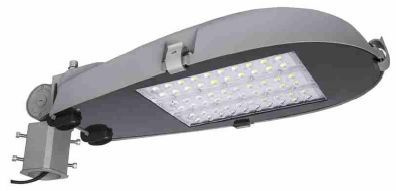

| Prod Model: |
SP-1009 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Size: |
690*300*120mm |
| Power: |
50W/80W |
| Beam Angle: |
170d/130d |
| Arm Hole: |
60mm/48mm |
| Arm Sort: |
Flex Arm/ Straight Arm |
| Lamp Luminous Efficiency(Lm/W): |
90 |
| Warranty: |
2 Years |
| LED Chip: |
Bridgelux Chip |
| Driver: |
Meanwell Driver |
| Certification: |
RoHS |
| Color Temperature: |
Cool White |
| IP Rating: |
IP65 |
| Lamp Body Material: |
Aluminum Alloy |
| Power Supply: |
Solar |
| Application: |
Street |
Product Description
1. Material:
Aluminum Alloy Housing
Strengthen glass
Processed Surfece and Spray Painted
2. Standard Specifications:
Beam Angle: 170° Cool-White: 5000~6000K 90~260V/AC
3. Optional Parts:
Beam Angle: 130° : Warm White 3000~4000K 12/24V/DCAbove may be changed with standard part to fit the specification required for your unique project.
4. Application: Street, High Ways, Bridges, Buildings, Squares, Markets.
Warranty: 2 Years
RoHS
|
CE
|
Safty Class11
|
IP 65 |
50Hz~60Hz
|
Protection Class 2
|
Recyclable
|
Item
NO. |
Input(V/AC) |
Power(w) |
Luminous flux(lm) |
Color temperature(K) |
Color rendering index(Ra) |
Size (mm) |
|
SP1009 |
90~260 |
30 |
6400 |
5000~6000 |
80 |
¢ 870*300*120 |
|
50 |
8000 |
