Prod Model: |
HTU-42W |
Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
Wattage: |
42W(28W~182W Available) |
Warranty: |
3 Years for Whole System |
Life: |
50,000h |
Power Source: |
DC |
Electric Current Type: |
DC |
Emitting Color: |
White |
Usage: |
Street |
Base Material: |
Aluminum |
Input Voltage: |
24V |
Diffuser: |
Tempered Glass |
IP Rating: |
IP65 |
Certification: |
ISO9000, CE, RoHS, CCC, SGS |
Product Description
1. Abstract

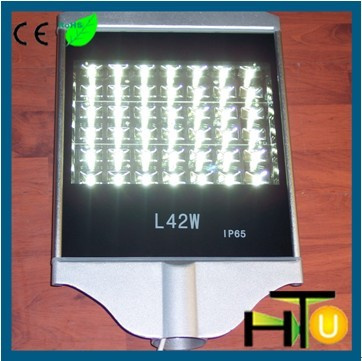

(1)LED Street Light
(2)CE&RoHS; IP 65
(3)Warranty 3 years
(4)High luminous
(5)Energy saving>80%, Environment friendly
2. Can be customzied upon demands
S. N. |
POWER |
VOLTAGE |
COLOR |
LUMINOUS |
DIMENSION |
WEIGHT |
HTU-28W |
28W |
24V DC, 85-265V AC |
5500K-6500K |
2520lm± 3% |
325× 315× 80mm |
4.865kg |
HTU-42W |
42W |
24V DC, 85-265V AC |
5500K-6500K |
3780lm± 3% |
390× 315× 80mm |
5.72kg |
HTU-56W |
56W |
24V DC, 85-265V AC |
5500K-6500K |
5040lm± 3% |
450× 315× 80mm |
6.52kg |
HTU-70W |
70W |
24V DC, 85-265V AC |
5500K-6500K |
6300lm± 3% |
510× 315× 80mm |
7.52kg |
HTU-84W |
84W |
24V DC, 85-265V AC |
5500K-6500K |
7560lm± 3% |
562× 315× 80mm |
8.34kg |
HTU-98W |
98W |
24V DC, 85-265V AC |
5500K-6500K |
8820lm± 3% |
622× 315× 80mm |
9.22kg |
HTU-112W |
112W |
24V DC, 85-265V AC |
5500K-6500K |
10080lm± 3% |
632× 315× 115mm |
9.92kg |
HTU-126W |
126W |
24V DC, 85-265V AC |
5500K-6500K |
11340lm± 3% |
693× 315× 115mm |
10.82kg |
HTU-140W |
140W |
24V DC, 85-265V AC |
5500K-6500K |
12600lm± 3% |
753× 315× 115mm |
11.73kg |
HTU-154W |
154W |
24V DC, 85-265V AC |
5500K-6500K |
13860lm± 3% |
813× 315× 115mm |
12.64kg |
HTU-168W |
168W |
24V DC, 85-265V AC |
5500K-6500K |
15120lm± 3% |
873× 315× 115mm |
13.55kg |
HTU-182W |
182W |
24V DC, 85-265V AC |
5500K-6500K |
16380lm± 3% |
933× 315× 115mm |
14.46kg |
Lighting Angle |
120º |
LED Luminous Efficiency |
87lm/W |
Power Factor(PF) |
0.95 |
Power Efficiency |
92% |
Input Voltage / Frequency Range |
AC170-250V/ 50-60 Hz |
Lamp' s Efficiency (%) |
92 % |
Storage Temperature |
-25 ° -65 ° |
Light Body & Lampshade Material |
Aluminum House & PC |
Working Temperature |
-35° -50° |
IP Rating |
IP 65 |
Color Temperature |
5500K-6500K |
Color Rendering Index(CRI) |
Ra 80 |
Junction Temperature |
70 ° C ± 1 0% ( Ta= 25 ° C ) |
Working Life |
50, 000 Hrs |
Installing Size |
Φ 61mm |
Tianjin Hanteng Energy Saving Equipment Co., Ltd, founded in 2008, Specialized in solar street lighting, LED lighting and solar power system. We provides an economic and environmental choice to help people live a low-carbon life with highly efficient. Our products are CE and RoHS certificated, we are renowned as one of China's leading providers of high quality. Let the sun shine our life!
