| Prod Model: |
TF12018 |
| IP Rating: |
IP65 |
| Switch Type: |
Sensor Switch |
Product Description
Product Description:

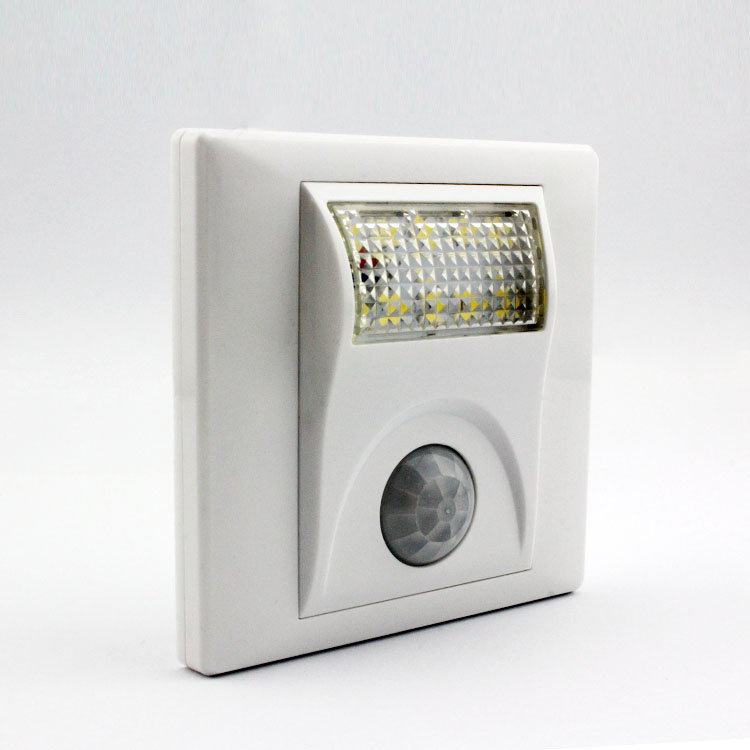

[Product Features]:
With a PIR sensor, Induction distance 3-5meters.
EU and USA standard size, can be installated in standard size, product size 86*86*35mm
When people or car get in a 5 meters distance range will turn on 100% brigtness, when leave after 1.5 minutes, it will be turn off in auto.
[Product Parameters]
Model TF12018 TF-XX
With Sensor or not yes No
Sensor Distance 3-5meters No
Cover Options wave cover
Operating Voltage AC 85V-265V
Power Efficiency ≥ 91%
Power Factor 0.95
System Power 3W
Luminous Flux of Lights
Epistar 100LM/W
300LM
Sensor Brand TASTEFUL
Temperature of Junctions(TJ) <70° C
Peak Lighting Angle 125°
Color Temperature 3000K/5000K/6000K
CRI Ra70± 5
Lighting Source Epistar, Taiwan
Working Environment Between-40° C~+50° C, 10%~90%RH
Storage Temperature Between-40° C~+50° C
LED life span >50000 Hours
Body and shell materials PC
Dimensions(mm) 86*86*35mm
Packing size(mm) 470*345*355mm 10pcs in a carton
Tunder Protection 10KV
Net Weight 0.2kg
Certificates CE / ROHS
Wind Index Force 12
IP Protection Grade
IP44
Quality Assurance /Warranty 3years
Remarks Technical factors will be changed accordingly
Based on the LEDs used in the lights.
If you're interested in this products or have doubts about it, feel free to contact us.
