| Prod Model: |
LED 114 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Waterproof: |
Not Waterproof |
| Shell Material: |
Aluminium Alloy |
| Electric Current Type: |
AC |
| IP Rating: |
IP20 |
| Life: |
50000h |
| Emitting Color: |
Full Range |
| Certification: |
LVD |
| Type: |
PAR64 |
| Diffuser: |
Tempered Glass |
| Input Voltage: |
220V |
| LED Chips: |
CREE |
| Power: |
30W |
Product Description

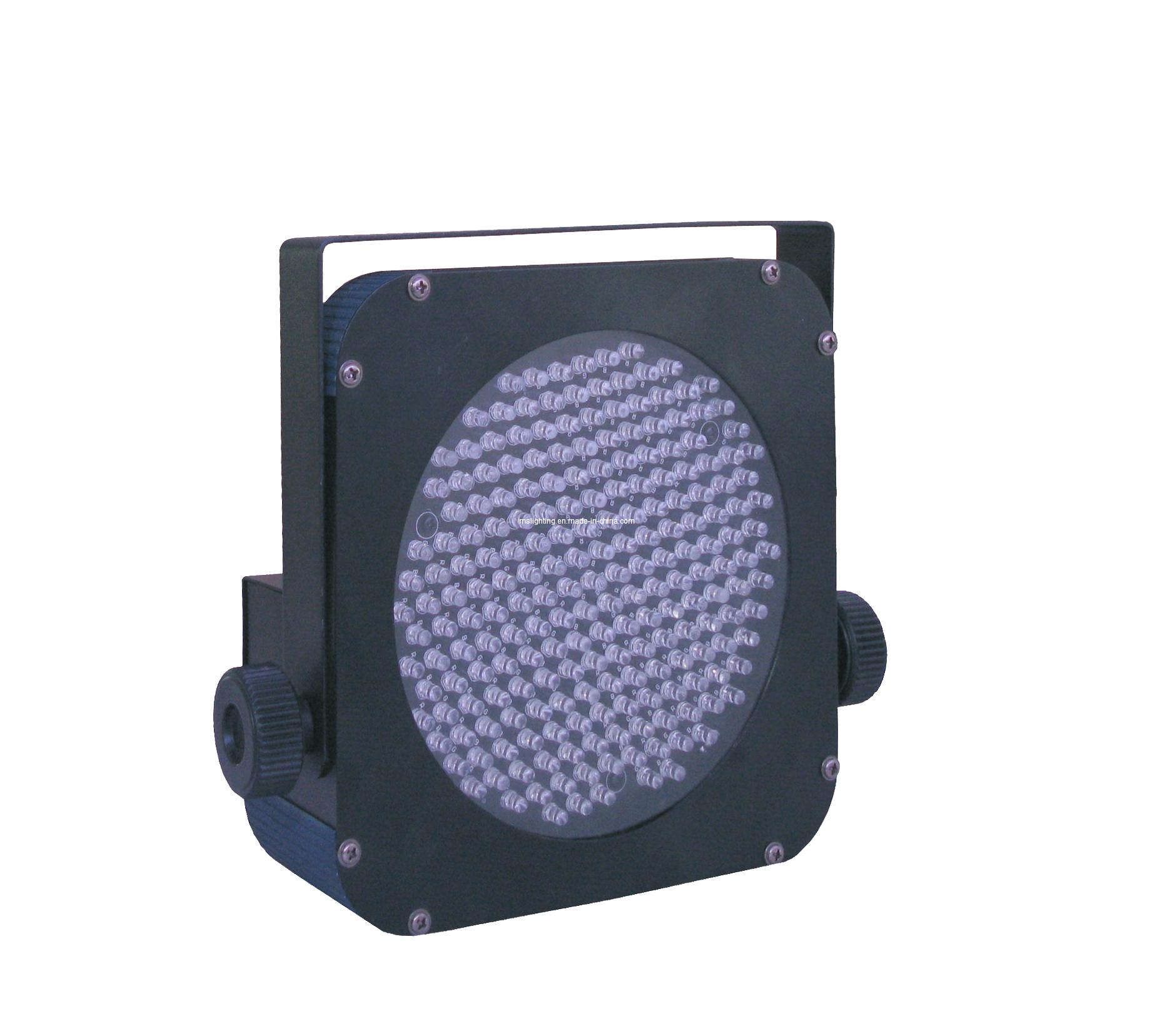

LED Disco Light, DMX LED Light, LED Effect Light, LED Stage Light
|
Specification: |
|
Model |
LED 114 (212X Ø5) |
|
DMX Channel |
6CH |
|
Control panel |
Digital 4 characters alphanumeric |
|
Housing Color |
Black |
|
Operating voltage |
100-230V AC |
|
Control Modes |
Direct DMX 512, Master/slave. Stand alone. Sound Activity |
|
Connector |
3-PinXLR (In and Out) |
|
NO.of LED |
212*F5MM LED LAMP(72R/ 70B/ 70G) |
|
LED Life Time |
80000-100,000 hours |
|
Beam Angle |
25°/30° |
|
Power Consumption |
20W |
|
Light Projecting Distance |
10-15M |
|
IP Rating |
Indoor |
|
Operating Temperature |
-20°c-+45°c |
|
Packing Dimension |
23*13*24cm |
|
Gross Weight |
1.30KGS |
|
Compatibility: |
|
1. Color Range: 16.7 million additive RGB colors; continuously variable intensity (256×256×256=16777216) |
|
2. Dimming 0-100%with regulated constant color control |
|
3.Strobe: 10 Flashed per second (any color) |
|
4. Function: it is max mix color, color change, flash, speed/luminance the adjustable |
|
5. 6CH Mode DMX Value |
CH 1_ Red (1-255, Dimmer, from dart to light) |
|
CH 2 _ Green (1-255, Dimmer, from dart to light) |
|
CH 3_Blue (1-255, Dimmer, from dart to light) |
|
CH 4_RGB Mixing (1-255, Dimmer, from dart to light) |
|
CH 5_ Strobe (1-255, from slow to fast) |
|
CH 6 _ Dimmer |
|
6. Thermal |
Maximum ambient temperature: 40° |
|
Maximum housing temperature: 60° |
MS Lighting is a professional stage lighting manufactory in China, Our products are LED Light, moving head light(spot/wash, 150W-1200W), DMX scannner, effect lights, disco lights, laser etc.
Our products are very popular by professional from all walks of life; It makes the perfect stage effect with the others stage lighting products. We have excellent quality products and the best after-sales service.
The aim of our work is your satisfaction
This is the good factory that your first choice.
