| Prod Model: |

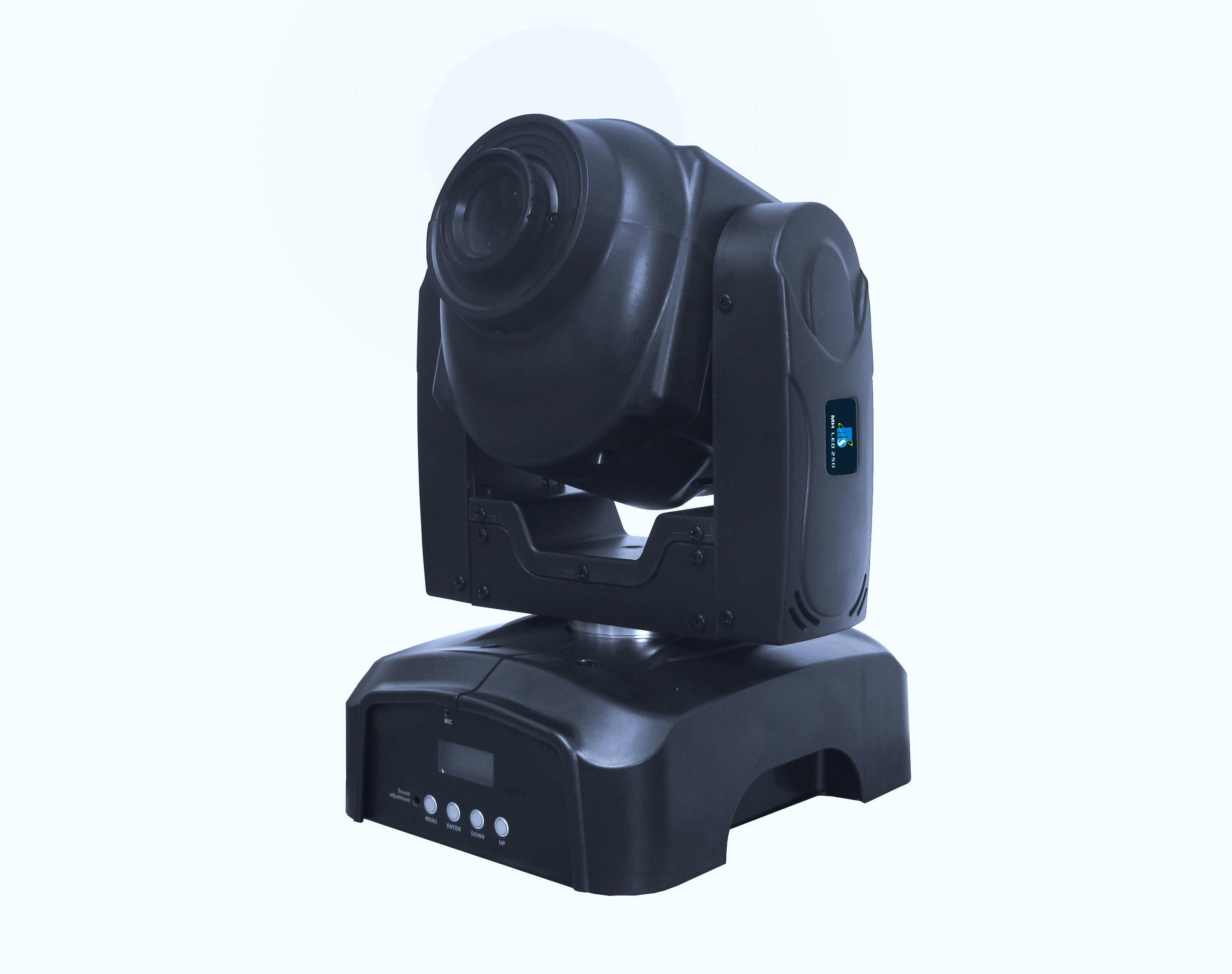

MH LED 25D/MHLED 50D |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Power: |
50W/25W White Lamp |
| Control Signal: |
DMX 512/Master-Slave / Auto/Custom/Sound |
| Rated Power: |
75W/50W |
| Custom Program: |
255 Steps |
| IP Rating: |
IP20 |
| Strobe: |
Electronic Strobe |
| Certification: |
SGS |
| Light Source: |
LED |
| Control Channel: |
12CH |
| Control Mode: |
DMX512, Master /Slave Mode, Sound, Auto |
| Voltage: |
AC 100-240V, 50-60Hz |
Product Description
Performance:
9 dichroic-filters+Open Rainbow-flow effect
Mechanical linear DIMMER 0-100%, and 1-10 times/s, 0-20Hz high speed Strobe effect
PAN 540° Tilt 270° , Pan/Tilt speed user-selectable, Pan/Tilt rangest reverse, Pan/Tilt movement, Blackout
Precise adjustment on horizontal and vertical position
Precise speed adjustment on horizontal and vertical position
2-motor motivated on both pan and tilt movement
Stopper function on the rotating effect wheel and position moving
Gobo 7 goibo (insterchangeable), Gobo-flow effect Gobo shake, Bi-directional roation
Pattern internal light rotating function, freely adjusting fast, low speed, clockwise and anticlockwise
Manual linear focus
3-facet prism
Cooling: Forced air convection
Flame-retardant plastic housing
Built-in over heat protection and high voltage protection
Compatible with DMX 512 international digital signal
According to various kinds of safety standards, IP20 protect grades, The cable accords to the CE20/22 standard
DMX CH:
CH 1: Pan
CH 2: Pan Fine
CH 3: Tilt
CH 4: Tilt Fine
CH 5: X/Y Speed
CH 6: Color Wheel
CH 7: Rotating Gobo
CH 8: Gobo Rotation
CH 9: Prism
CH 10: Dimmer
CH 11: Strobe
CH 12: Function
