Prod Model: |
78856 |
Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
Light Source: |
LED Light |
Power Supply: |
Solar |
IP Rating: |
IP65 |
Certification: |
RoHS |
Product Description
Basic Info.
Model NO.: BTSL1851
Charging Time (H): 8
Usage: Street
Voltage: 12/24V
Certification: CE, RoHS, CCC
Place of Origin: Shandong
Brand Name: Bortome
Model Number: Btsl1851
Lampshade Material: Toughened Glass
Lighting Bulbs & Tube: Energy Saving
Working Time: 10 Hours/Day
Controller Voltage: 24V
Guard Level: IP66
LED Light Source: 120W
Export Markets: Global
Additional Info.
Trademark: BOETOME
Packing: Standard Sea Paacked
Origin: Shandong Qingdao
Product Description

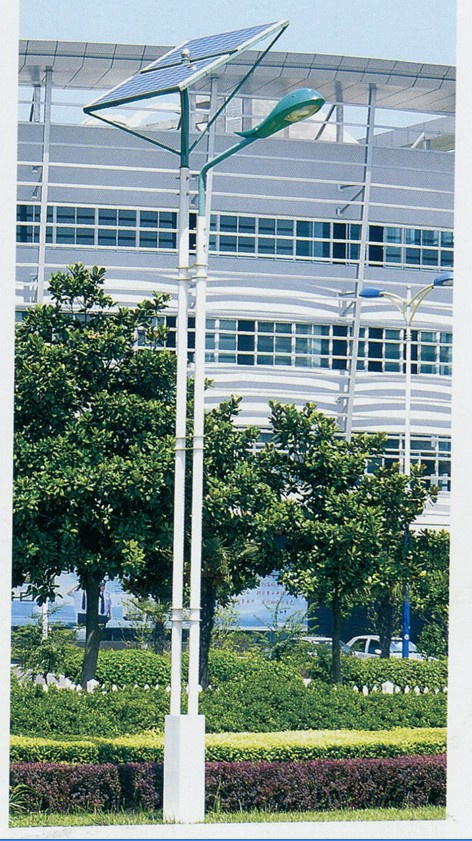

40W-280W Solar LED Street Light with 6-12m Pole
Solar Street Light Features
Solar street light energy saving
Solar steet light
Environment friendly
Easy installation, safe
Long life design
Free of maintenance
How does Solar Street Light work?
The solar energy is converted into electricity stored in the battery by the solar panel through the day time, the solar panel voltage will decrease gradually in the dark time. When the voltage is lower than stipulated voltage, the controller will make the battery supply electricity to lload;
When the day become bright, the solar panel voltage increase gradually.
After the voltage is larger than stipulated voltage, the controller will stop the battery supplying the electricity to load.
We can design and make the OEM according to your requirements.
Half-Power working is available for Energy-saving and Cost-saving.
Item |
Specification |
Mono Solar Panel
|
1. Solar Panel: 1pcs*240W
2. 240W/24V
3. Light Source: 60W DC24V; LED street lamp, 110~120LM/W
4. Warranty:5 years |
Gel Battery
|
1. 2pcs*12V120AH , maintenance free
2. About Weight: 32kg±0.5
3. Design Life Span: 5-7 years
4. Warranty: 3 years |
Battery Box
|
1. Engineering-plastics molded, waterproof
2. Excellent heat preserving performance
3. Warranty: 5 years |
Solar Controller |
1. 12v/24V /20A
2. Time and optical control
3. IP68, Waterproof
4.LED driver is built in |
Led Lamp |
1. LED street lamp, 110~120LM/W
2. Luminous: 100-110 lm/w
3. IP6
4. Ambient Temperature: -25 degree_75 degree
5. Warranty: 2 years |
Pole, Panel Bracket, Base Flange, Underground Fittings, and Nuts |
1. Hot dipped zinc galvanization + spraying powder coated
2. Material: Q235 steel
3. Pole Height: 6m (from 6m to 12 m ,and customize for u ) 4. Pole Thickness:3.00 mm
|
Wire |
1. One spool
2. Length of each spool: 13 m
|
Yangzhou Anding Lighting Manufacturing Co. Ltd. Is located in Guoji industrial zone in the north of Yangzhou city, Jiangsu province, and enjoys highly convenient communications and smooth traffic access.
Under the leadership of Mr Anlin Chen, ANDING has been advocating a corporate spirit of good faith, high efficiency and moving with the times. After over ten years of hard work it has grown into a big enterprise with registered capital up to 2 018 million yuan, annual sales of over one hundred million yuan and covers an area of 40, 000 square meters. ANDING has over 50 high level intellectuals, experts and technical staff and boasts over 120 sets of large and medium-sized equipment. It has set up long-term corporation with Shanghai Yaming, Nanjing Sanle, Shenzhen Gaolite and Wuxi Zhenfa in the transmission and distribution lines and solar panels. So far ANDING has over ten patent technologies. The ANDING1 lamp series and solar powered lamps have been widely used in the industry.
In order to build up the brand name "ANDING" and keep the company growing, ANDING stresses the concept of quality. ANDING has established a full series of rules for labor management, production management and quality management, has formulated technological flows, quality criteria and rules of encouragement and discipline on the basis of different work positions and maintains real time control over the production process by means of a CCTV monitoring system. The Q. C. Department of the company maintains strict discipline in controlling product releases to ensure all the products delivered are 100% qualified to achieve zero returns. Based on goodwill, advanced technology, excellent product quality and reasonable prices we have won abroad market share and trust from our customers. ANDING has been involved in national key projects many times. "ANDING" brand lamps have been used in Beijing, Shanghai, Tianjin, Shanxi, Yunnan, the sea-spanning bridge of Quanzhou in Fujian province and the seaside Bath site on Huludao island, in Liaoning province. The lamps have also experienced the test of severe cold, wind and snow in Harbin and Lhasa. At the same time Baode products have been sold in Europe, America, South-east Asia, MID-Asia, Australia and Africa and received high praise from overseas customers.
For many consecutive years, ANDING has been appraised as a "faithful and trustworthy enterprise", "the enterprise with the top credit rating of AAA", "an excellent company in standard implementation" and "an outstanding enterprise in quality management". It has received accolades as a well-known brand of Yangzhou and of Jiangsu province and is recognized for the certification of its high-tech solar street light. It is also successfully certified with ISO9001: 2000, ISO14001: 2004, CQC and has been granted the permit for the use of high mast lamps at airports, issued by the CAAC. ANDING has also been granted the "Permit for safety production" and the"Qualification of road lighting construction", "Certification of transformation of steel tubular structure products", "Radio communication towers and mast production certificate" and "Traffic lights certificate" among others.
ANDING is ready to work with old and new customers in full sincerity to make the night of the world more colorful.
