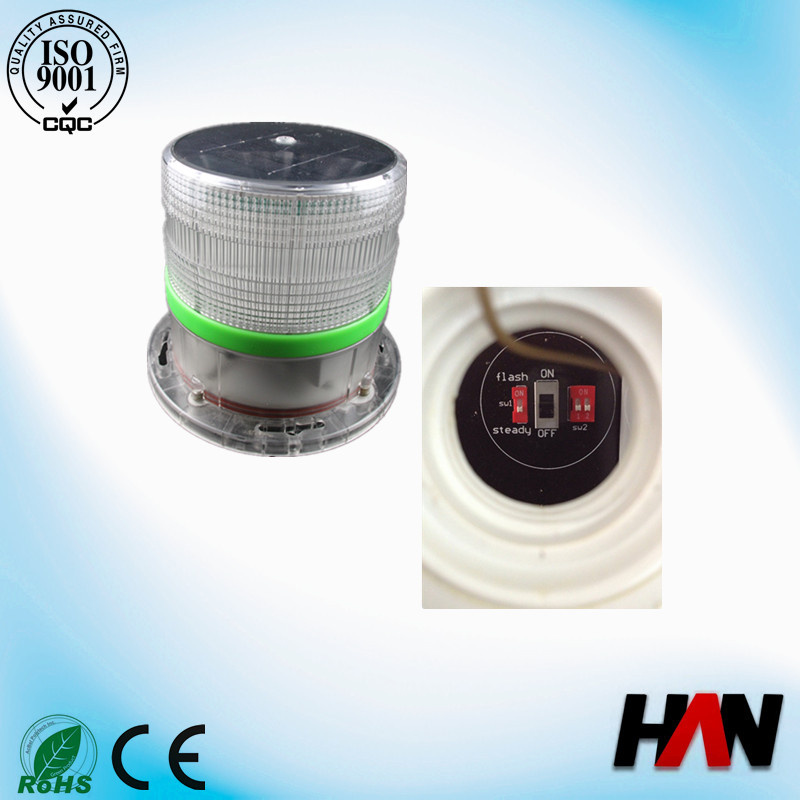

Led Solar Obstruction Aviation Lights
Main functions and features
1).Nominal night visibility:4.5km-6.6km (2.5nm-3.7nm)
2)Compliance with IALA color(red,white,yellow,green,blue).Turn on at dust and turn off at dawn automatically.
3)Completely self containt,no cables,no people management.
4)Waterproof and shock resistant
5)Nearly recharge themselves at nearly all kinds of conditions.
6)Automony time:steady on model:150 hours; flashing model:300hours.
7) Can be ordered in steady-on or flash patterns.
8)With built in NiMH battery, easy for replace
9)Integrated design, enabling a rugged and completely waterproof seal capable of prolonged and deep immersion (IP68).
10)Based on LED technology, and its color complies to IALA Recommendations E-200-1.
11)256 kinds of flashing rate are available, comply with IALA
12) Manufactured to ISO9001:2008 Quality Assurance standards .
13) manual switch
14)Extremely Reliable and cost saving
Application
Aviation
Runway Edge Threshold Lighting
Taxiway Apron Lighting
Elevated Runway Guard Lights
Airfield Barricade Lights
Helipad Lighting
Marine
Port Lighting; Boat houses
Mooring and researching Buoys
Marine floating signs
Marina and Dock Lighting
Marine Aids to Navigation
Oilgas Offshore Platform Marking
Traffic
Barricade markers
Security markers
Crosswalk Flashing Lighting
24 Hour Flashing Lighting
Specifications:
Light Characteristics |
Intensity | Upto 26cd |
Visible Range | >3.7nm |
Available colors | Red, amber, green, blue, white, infred LED |
Vertical degree | > ±3.5° at 50% intensity |
Horizontal degree | 360 |
Light source | LED |
LED life | ≥100,000 hrs |
Electrical Characteristics |
Autonomy | >21 days(12hour darkness,12.5%duty cycle) |
On/off level | 60/100 Lux |
Flashing rate | complies to IALA Recommendations, total 256 available flashing rate(available steady burning) |
Latitude Rang | 55°S to 55°N |
Power Supply |
Solar module type | Multicrystalline, Potted with UV-protected Efficiency 16% |
Output | 2 Watts |
Battery type | High grade Ni-MH-Environment friendly |
Battery capacity | 5AH |
Physical Characteristics |
Integrated housing | UV resistance PC |
Waterproof | IP68 |
Weight | 1.5 KG |
Ambient temperature | -40°C ~ +70°C |
Size | H: 212mm, D: 227mm |
Mounting dimension | 160-4XM6 |
Customized | External power |
Quality control and Patents |
Quality Assurance | ISO9001:2008 |
CE,CCC,UL certificate | YES |
Warranty time | 5 years for light; 3years for battery |
Note | when the light is in storage, please put it outside to charge the battery every 3 months |
about product
Solar warning light using the solar power supply .automatic recharge battery storage battery by solar energy during the day, warning signal,Without manual management and the replacement of the battery, and can be longterm continuous use (20 years solar battery life 15 ~), safety and save money. Without increasing any cost, use cost is low, is the ideal products to replace the original battery warning lamp. Mainly used for safety warning device for road transport, highways, urban streets, railway crossing, road building construction field cooperation as the signal indication.
The lamp has the advantages of small volume, light weight, low energy consumption, highintensity, anti lightning, no other power supply, safe and reliable, the characteristics ofconvenient installation and maintenance etc.. Widely used in aviation, navigation, communicationtower, broadcast and television tower, many high-rise buildings and so.
Overview:
Solar warning light ,also called solar powered warning light,is a warning light which uses solar power.
How to choose a solar warning light?
Choose the flash style,flash in turn or flash staedy
Choose the size of the warning light
Choose the fix mode of the solar warning light
Choose the color the solar warning light
Choose the visual distance in darkness of the solar warning light,over 400meters for exapes
Ensure the continue working time without solar power,over 200hours for examples
Choose the reflective tap's quality
Xi' An Greenwood New Energy Technology Co., Ltd. is the subsidiary of Han Industrial Group Limited. We are specialized in the research, development and manufacture of LED lights, solar lights and solar generating systems and so on. Our products are widely applied to lighting, sea navigation, energy saving, coal mine, gas station and other professional industrial fields.
Our main products:
Solar marine light /solar navigation light /solar aviation light
Solar vehicle warning light /solar road/traffic warning light
Solar road stud
Solar water Pump
LED underwater boat light
We have a professional and experienced technical development team. We staff 300 personnel, including 50 professional engineers with high education and 100 skilled workers with strict training. They are willing to design and manufacture products with various designs and specifications. Meanwhile, we can design and manufacture products according to your special requirements
Quality control is more an action than a slogan. Strict quality control is implemented in all aspects of operations to meet the high standards of top-tier customers. The philosophy has permeated all levels of the production process, covering: 1) incoming material inspection; 2) inspection of work-in-progress; 3) finished products inspection; 4) random inspection in warehouse.
With high quality products, excellent service and good reputation, we have won great supports from customers and become more powerful. Thus, our company scale has been expanded.
