high brightness 72 leds 5050 of LED Rigid Strip
DC12V,
White or Warm White,
SMD5050,
72pcs / M,
1000*12mm,
16-18lm LED

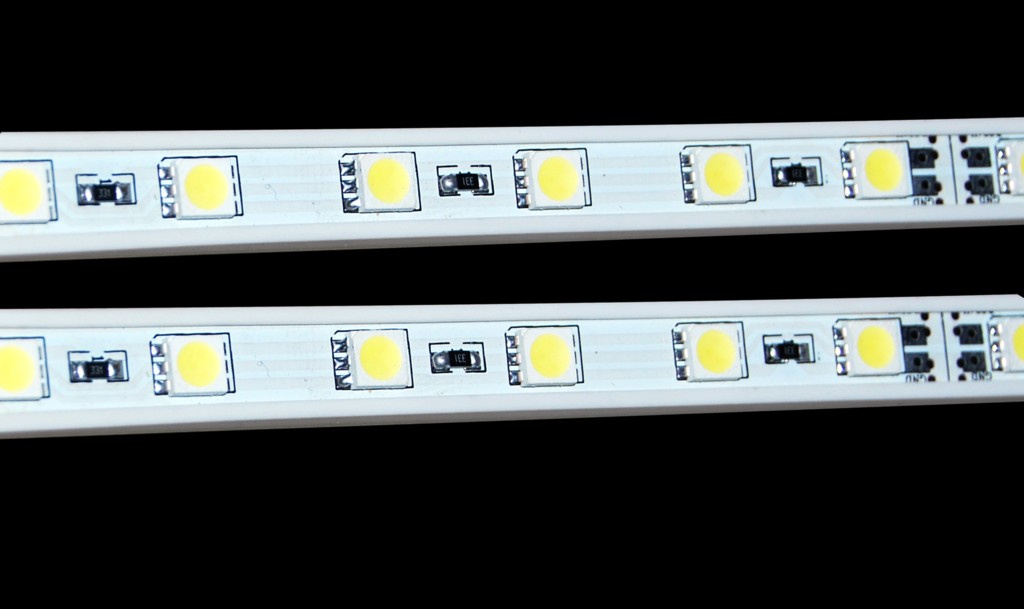

The rigid strip ,which its material is aluminum .Just like led flexible strips ,it is three led on group ,so it have 20 groups,one group can be cut .Its working voltage is DC 12V.
The rigid strip can be used of advertising the lighting in the cabinet ,without other accessories .Also can be used of Local lighting inside the car .
The rigid strip with U aluminum groove and glue waterproof,or with U aluminum groove and PC cover,can be used of Outdoor overall outline lighting .
As to the soldering , can solder two wire in two side ,so if need them in series ,you can connect them in wires with some Waterproof tape .
Part No. | Color | LED Type ( LED ) | LED Qty | Unit PCB size | Waterproof Protect Range | Power | Lumen |
|
DX-5050W72D-12MM-12V | White | SMD5050 | 72LED / Piece | 1000*12mm | N/A | 17.2W | 12-14 |
DX-5050WW72D-12MM-12V | Warm White |
