| Prod Model: |
JM-X7075A |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Size: |
1000*70*75mm |
| Number Of LED: |
36 |
| Pixel: |
1/3/6 |
| Control Model: |
DMX512 |
| Power: |
108W |
| Material: |
Aluminum Alloy |
| Emitting Color: |
RGB |
| Diffuser: |
Tempered Glass |
| Base Material: |
Aluminum Alloy |
| Lifespan: |
50000 hours |
| IP Rating: |
IP65 |
| Certification: |
CCC |
| Electric Current Type: |
AC |
| Input Voltage: |
220V |
| Beam Angle: |
45 15 30 60 120 |

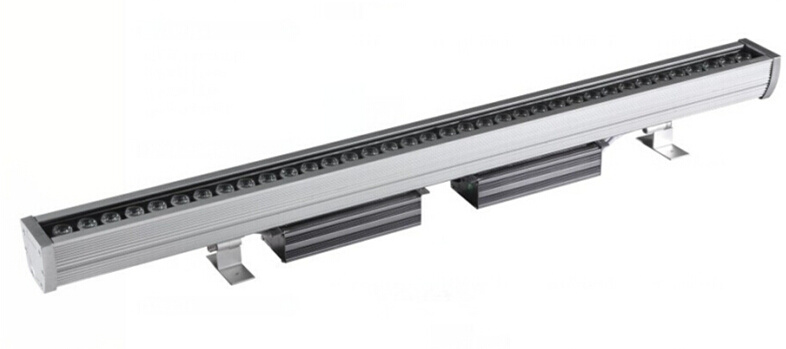

Product Description
High quality aluminum lamp body,spraying under high temperature,impact resistance,toughened glass cover.
Integrated design, good heat dissipation,IP65 protection grade, whole glue sealing,waterproof.
High luminous efficiency,balance light,long projection distance,color temperature can be selected.
140° adjustable angle,anti-glare cover can be added.
Description
The line between the master control and sub-control must be "CAT-5E",and the line can't exceed 40m
Each channel of the controller can control 512 pixels
Each power source of lamp must have aseparated voltage input
Every 30 lamps need a signal amplifier.A 120Ω resistance should be added to each branch terminal
| Specification of Goods |
|
| Model | JM-X7075A-1 | JM-X7075A-2 | JM-X7075A-3 |
| Size of Goods | 1000*70*75mm | 1000*70*75mm | 1000*70*75mm |
| LED Type | 3W LED | 3W LED | (3W LED) |
| LED Number of LED | 36 | 36 | 36 |
| Pixel | 1 | 3 | 6 |
| Color | RGB | RGB | RGB |
Max Power W/PCS | 108W | 108W | 108W |
| Input Voltage | AC220V | AC220V | AC220V |
| Material of Body | Aluminum Alloy+Tempered Glass |
| Adjustable Angle | 15° 30° 45 60° 120° |
| Working Life | 50000H |
| Operation Temperature | -20ºC~+45ºC |
| Protection Rate | IP65 |
| Control Model | DMX512 |
