| Price: | US $ 1-960/Piece |
|---|---|
| Trade Terms: | FOB,CIF,EXW |
| Min Order: | 5/Square Meter |
| Pay Type: | L/C,T/T,Western Union |
| Prod Model: | P6, P10, P12 |
|---|---|
| Markets: | North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Outdoor: | IP65 |
| Display Type: | LED Video Display |
| Tube Chip Color: | Full Color |
| IP Rating: | IP65 |
| Pixel Configuration: | 1R, 1G, 1B |
| Certification: | ETL |
| Pixel Pitch: | 20mm |
| Display Function: | Video Display |

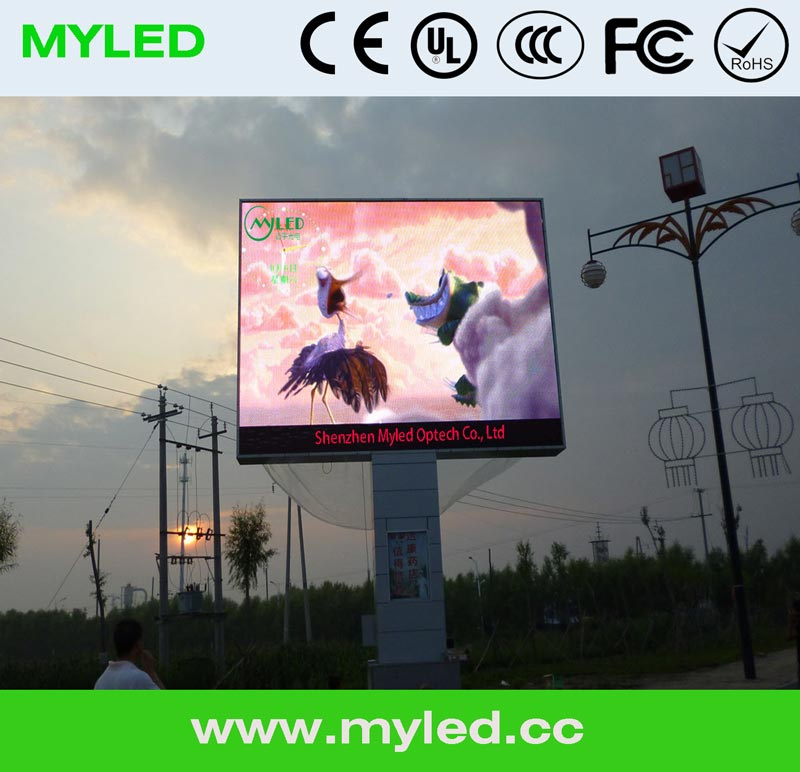

| Application: | Advertising |
| Scanning Mode: | Static Scan |
| Average Power Consumption: | 220W / m² |
| Pixel Density: | 2500 |
Main Parameter | ||
Category | Parameter | |
Pixel Pitch | 20mm | |
Optimum Viewing Distance | 20-50m | |
Density of Pixel | 2500pixels/ | |
Brightness | ≥6500nite | ≥7000nite |
Module Resolution | 16*16 | |

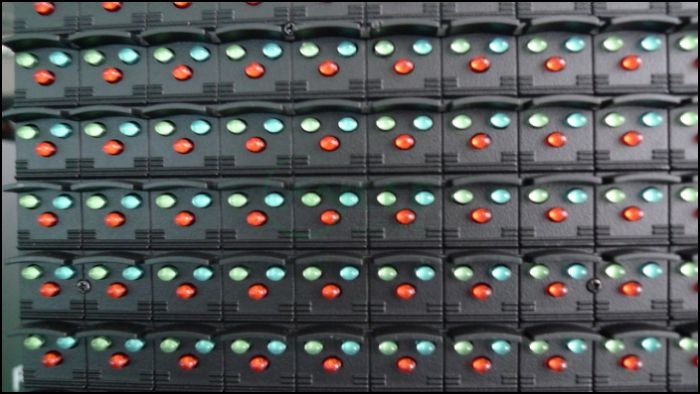

LED Encapsulation | DIP346 2R1G1B | DIP346 1R1G1B |
Driving Method | Virtual Static | Real Static |
Optimum Viewing Angle | H: 110°V:50° | |
Module Size | 320*320*27.7(mm) | 320*320*33.4(mm) |
Module Power | 44w | 50w |
Module Weight | 1100g | 1200g |

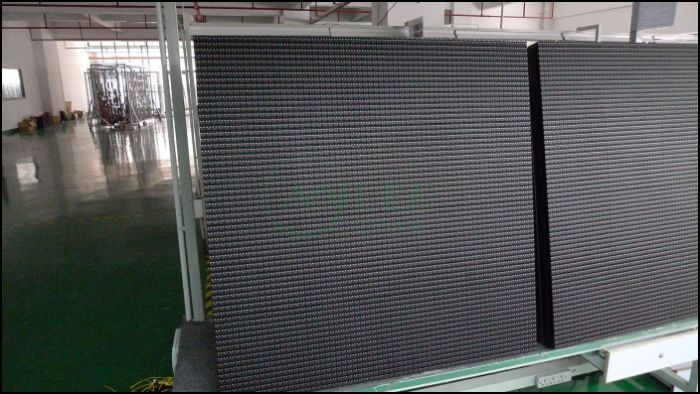

Cabinet Size | 1280*960*178(mm) | 1280*960*183(mm) |
Cabinet Resolution | 64*48 | |
Cabinet Power | 1320w | 750w |
Cabinet Weight | 59kg | 59kg |
IP Rating | Front/Rear:IP65/IP43 | |
Refresh Rate | 1000-4000Hz( Different according to the different Driving IC ) | |
Luminance Consumption | Less than 5% after 1000 hours Ageing test, testing current 30mA, under normal temperature25ºC. | |
MTBF | >5000hours | |
Defective Dot Rate | <0.0001 | |
Life Span | >100000hours | |
Working Voltage | 110-240 AC±10% 50-60Hz | |
Working Temperature/Humidity | -30ºC - +50ºC/10-90%RH | |
Storage Temperature/Humidity | -40ºC - +60ºC/10- 90%RH | |
Input Signal | RF,S-VIDEO,RGBHV,YUV,YC & COMPOSITION,etc | |
Connector | CAT5 Cable(Length≤1430m),Optical link( Length≤20km,Optional) | |
Note: The above parameter is just for reference. Changes can be made according to customers' requirements | ||
