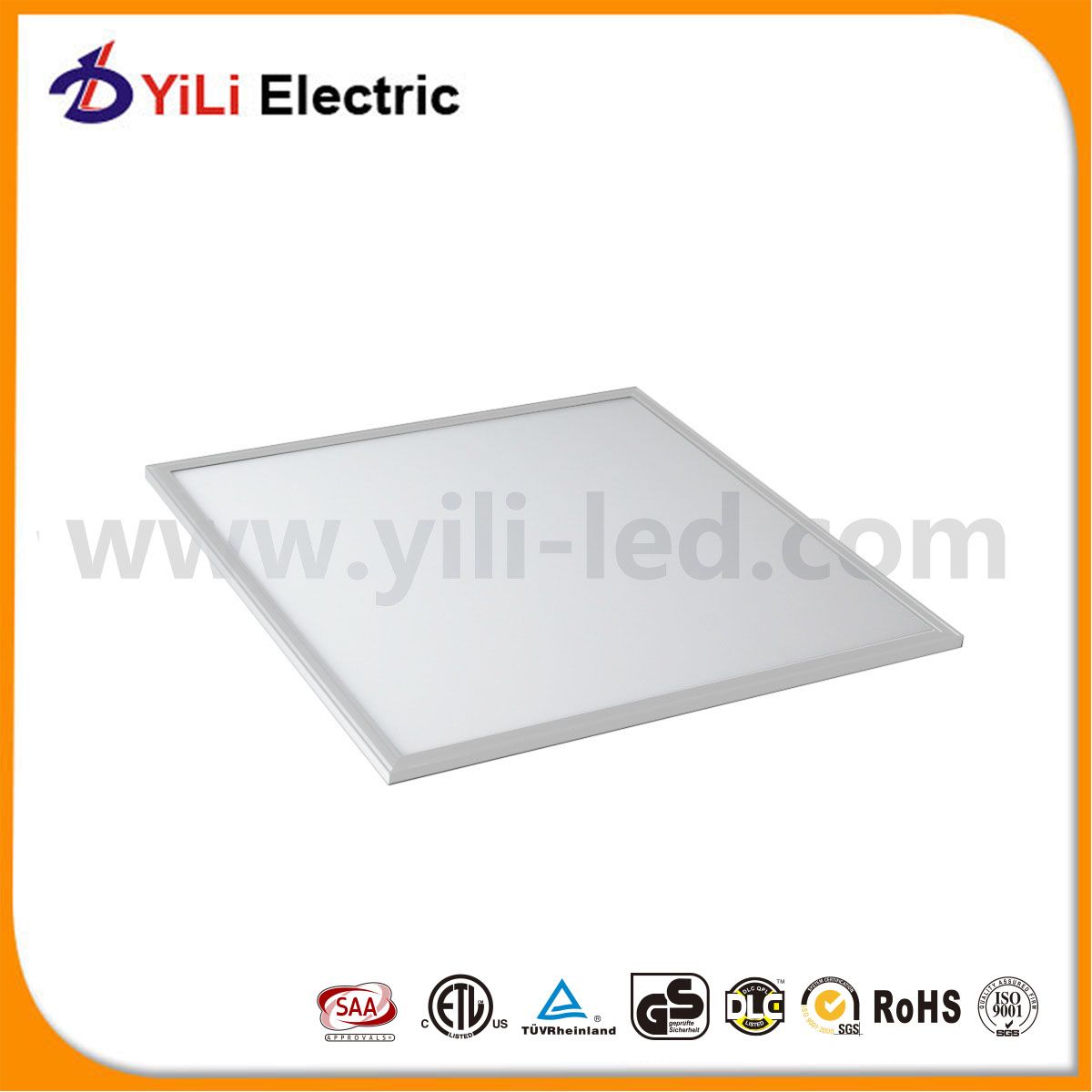

Certificación UL, Diseño Ultra Delgado, 6063AL,
UL approved ultra-thin designed 6063 AL.
Alta luminancia and eficacia de luminosidad con uso de SMD 2835 LED chip(CRI>80,LM80).
Eficacia: >140LM/W, Ra: >80, SCD<4.
LED: SMD 2835 2016 4014
TH: 7.5mm, 9.5MM
Regulable tanto en su direccionamiento, como en el color de luz.
Potencia: 72W
Lumens(lm): 7200
Ángulo de Haz: 120°
CCT(K): 2700/4000/6000
CRI(Ra): >80
Eficiencia de Energía Classes A+
PF: ≥0.95
Voltaje(V): AC180-240/AC180-277
Frequencia(Hz): 50/60
Tiempo de Vida: 25,000 horas.
Operatividad en Temperaturas(ºC): -20~40
Temperatura de Almacenamiento(ºC): -20~85
Material: Aluminio.
Color: Plateado y Blanco.
Dimensiones: 600 x 600mm/595 x 595mm
Certificaciones: CE, GS, RoHS, UL
Parameter
Model | PL-72W-66-28-FTG-01 | PL-72W-66-28-FTG-01 | PL-72W-66-28-FTG-01 |
| Watt(W) | 72 | 72 | 72 |
| Lumens(lm) | 7200 | 7200 | 7200 |
| Beam Angle(deg) | 120 | 120 | 120 |
| CCT(K) | 2700 | 4000 | 6000 |
| CRI(Ra) | >80 | >80 | >80 |
| Energy Efficiency Classes | A+ | A+ | A+ |
| PF | ≥0.95 | ≥0.95 | ≥0.95 |
| Efficiency Lm/W | >100 | >100 | >100 |
| Voltage(V) |
AC180-240
AC180-277 |
AC180-240
AC180-277 |
AC180-240
AC180-277 |
Frequency(Hz) | 50/60 | 50/60 | 50*60 |
| Lifespan(hrs) | 25000 | 25000 | 25000 |
| Working Temperature(ºC) | -20~40 | -20~40 | -20~40 |
| Storage Temperature(ºC) | -20~85 | -20~85 | -20~85 |
| Parameter | PL-40W-66-28-FTG-01 | PL-40W-66-28-FTG-01 | PL-40W-66-28-FTG-01 |
| Model |
| Watt(W) | 40 | 40 | 40 |
| Lumens(lm) | 4000 | 4000 | 4000 |
| Beam Angle(deg) | 120 | 120 | 120 |
| CCT(K) | 2700 | 4000 | 6000 |
| CRI(Ra) | >80 | >80 | >80 |
| Energy Efficiency Classes | A+ | A+ | A+ |
| PF | ≥0.95 | ≥0.95 | ≥0.95 |
| Efficiency Lm/W | >100 | >100 | >100 |
| Voltage(V) |
AC100-240
AC100-277 |
AC100-240
AC100-277 |
AC100-240
AC100-277 |
Frequency(Hz) | 50/60 | 50/60 | 50/60 |
| Lifespan(hrs) | 25000 | 25000 | 25000 |
| Working Temperature(ºC) | -20~40 | -20~40 | -20~40 |
| Storage Temperature(ºC) | -20~85 | -20~85 | -20~85 |
