North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Luminous Flux:
8000
Power Factor:
>0.95
Lamp Body Material:
Aluminum Alloy
IP Rating:
IP67
Irradiated Area:
≥30㎡
Input Voltage:
110v
Power:
60-100w
Color Temperature:
Cool White
Emitting Color:
Cool White
Certification:
CQC
LED Chips Brand:
CREE
Product Description

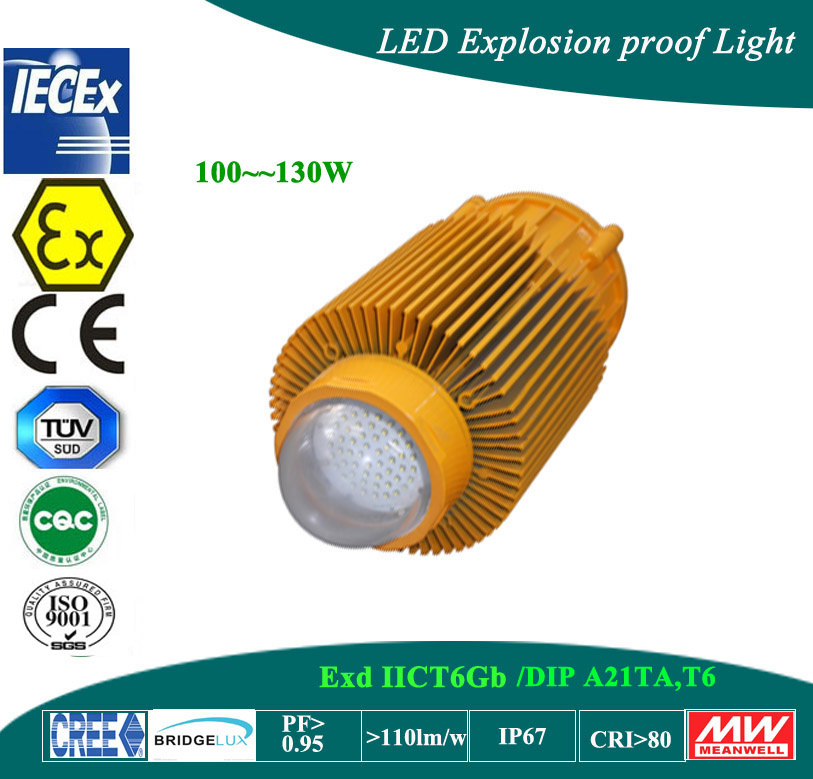

LED High Bay Explosion Proof Light for oil, chemical and military base
Shandong Huading Weiye Energy Technology Corp.,Ltd. is a high and new enterprise, specialized in LED explosion proof light, LED high bay light,LED flood light, LED street light and etc.Possessing 10-year experience in LED business, 9-year experience in LED lighting, rich experience in operating, stable production period and complete after-sale service.

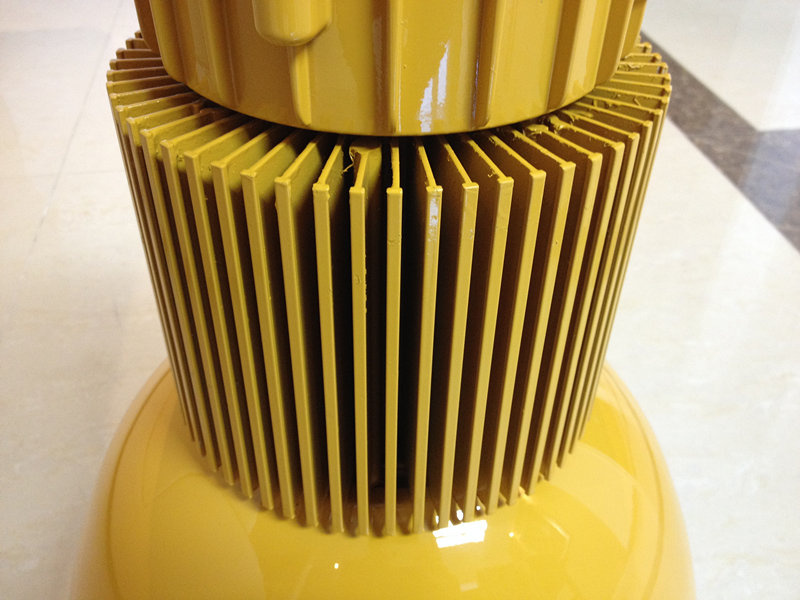

Characteristics 1,Copper-free Aluminum housing with high voltage electrostatic spraying surface. 2,Stainless steel exposed fastener with high anti-correction performance. 3,Toughened glass cover stands 4J impact and resistant to temperature changes ,with high lighting transmittance . 4,Power driver and led source are in different cavity which assure heat of led source will not transmit to the power driver cavity. 5,Entire explosion proof structure and spigot flameproof joint, assure reliable explosion-proof performance. 6,Professional optical design and quadratic light distribution ,special design of reflector(90°&120°) result in high uniformity of illumination and reasonable distribution. 7,Special constant current power driver can assure wide voltage input and output constant current. With short-circuit and overvoltage protection, over-temperature protection etc. 8,Adopted imported LED chips, reasonable arrangement ,soft and uniform lighting, longer working time and eco-friendly. 9,Patent sunflowers heat-dissipation structure increased the heat-dissipation surface area. Air convection slot design can make use of air flow to assure high quality heat-dissipation performance and longer working time .
Main application and applicable scope This kind of LED lighting is suitable to explosion area zone1,zone2 and IIA,IIB,IIC explosive gas atmospheres. Parameters:
Type
BHD9100-60
BHD9100-70
BHD9100-100
BHD9100-120
Rated power
60W
70W
100W
120W
Rated voltage
AC90-264V
PF
≥0.95
Lamp efficiency
≥90lm/w
Color Temperature
2700-6500K
CRI
>80
IP
IP66
Size
Φ415*520mm /Φ195*350mm
Weight
7.0kg
Working Life
>50000h
Ex-mark
ExdIICT6Gb/ DIP A21TA,T6
Ex-certificate No.
CE13.1381/CE13.1382
Company Profile:
Shandong Huading Weiye Energy Technology Corp., Ltd. was established under the historical period when the global energy crisis is more and more obvious and people's sense of environmental protection is more and more strong. It is founded by several students from Tsinghua University, with the Tsinghua spirit of"Self-improvement, Social Commitment". Trough our ever-accelerated development, now we have been the listed company in China.
Our Tenet: In the business objective of "More Cares to the Staff, More Benefits for Customers, More Returns to the Society", pay close attention to the technical innovation, long-term development, customer value and social value.
Company Team & Cooperation: Our company has first-class lighting designers and R&D professionals with the average education level of bachelor. We established the R&D center for constant flow source and inverter and light testing center with Automation Research Institute of Chinese Academy of Science. Our company is the only LED lighting engineering R&D center in Yantai, and established technical personnel practice bases, R&D centers and mobile post-doctoral stations with many research institutes and universities. Moreover, our company is also the partner of Foxconn in LED project. We are SNPC, CNPC, SHENHUA GROUP constant supplier in China.
Main Business: The R&D, production and selling of LED &HPS explosion proof light, (solar )street light, industrial light, high bay light, mining explosion proof luminaries etc.
