North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Production Time:
15 Days
Display Type:
LED Video Display
Tube Chip Color:
Full Color
IP Rating:
IP65
Pixel Configuration:
1R, 1G, 1B
Certification:
ETL
Pixel Pitch:
10mm
Display Function:
Video Display
Application:
Shopping Guide
Scanning Mode:
1/2 Scan
Pixel Density:
10000 dot / m²
Average Power Consumption:
600W / m²
Product Description
Advantage:

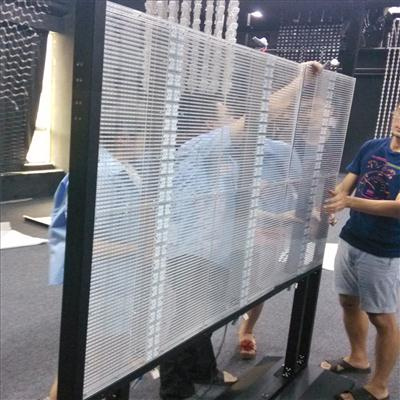

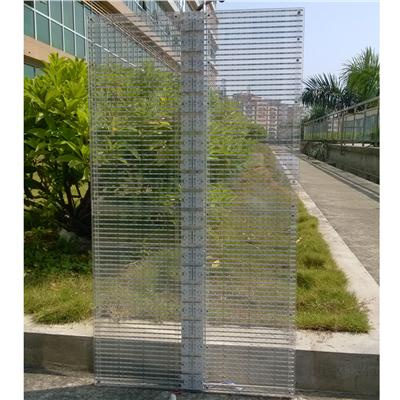

60% transparency, backside visible.
Lightweight, easy installation and disassembly.
Individually removable and replaceable.
Nice appearance.
Item
G10
G10C
G12
G12C
Pixel Pitch
10.416mm
10.416mm
12.5mm
12.5mm
LED Type
RGB 3in1 SMD3528
RGB 3in1 SMD3535
RGB 3in1 SMD3528
RGB 3in1 SMD3535
Brightness
900 nit
4000 nit
900 nit
4000 nit
Pixel density /sqm
9216
6400
Resolution
48x48 / 48x96
40x40 / 40x80
Cabinet size
500x500x54mm / 500x1000x54mm
500x500x54mm / 500x1000x54mm
Weight
5 kg /10 kg
5 kg /10kg
Best viewing distance
10m
12m
Maximum power consumption
400W/sqm
300W/sqm
Average power consumption
160W/sqm
120W/sqm
Refresh rate
960Hz
1000Hz
Protection Level
IP43
View angle
140°(H)/140°(V)
Gray Scale
14bit
Colors
68 billion
Input voltage
DC 36~72V
Working environment
temperature -30ºC~+50ºC, humidity 10~90% RH
Lifetime
> 50,000hours
Certificate
CE
Located in Baoan District, Shenzhen Myled Optech is an professional LED display manufacturer which is dedicated to LED display R&D; Production, sales, marketing and one stop solution for customers mainland and international. Myled provides consulting, installation, training and sales services for customers. We always regard customers as the company life line.
Shenzhen Myled Optech focus on indoor and outdoor full color LED display, LED curtain display, mesh, indoor and outdoor single and bicolor LED display manufacturing. We have established business relationship with customers in South America, Euro, and Asia etc. And win a good reputation among customers all over the world. And we provide full solution for Government, Telecom, Hotel, airport, bus station, stadium, and cinema and financial center, etc. Over the past years, we have finished some important LED display project for South American and China Mainland.
Quality is the most important theme for Myled and welcome to contact, and visit our company.
We hold the truth that better quality, better price and better sales services are our company culture.
