Prod Model: |
KHGL-033 |
Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
Working Time: |
10hrs/Day, 5-7days |
OEM/ODM: |
Available |
Light Type: |
LED |
IP Rating: |
IP65 |
Voltage: |
12V |
Material: |
Aluminum |
Product Description
Applications:

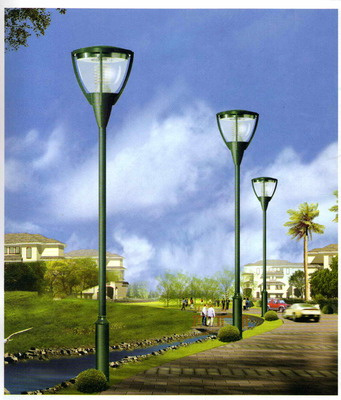

Compound wall light, Security lighting, Park lighting, Walkway lighting, Residential street lighting, Square, Garden, Highway, etc.
Advantage:
1. The pole patterns are standardized type, practical and economical, which can also be customized as per client's specific requirement.
2. Durable, shockproof; Safe: Environmentally friendly. The optimized heat sink design to ensure the LED junction temperature is below60 degrees
3. Designed to provide soft, anti-glare and effective ambient
4. Lighting using high brightness LED light source and special anti-glare design
Trade terms
1.30% advanced payment by T/T or L/C, 70% T/T payment before shipment.
2. Production lead time for 100~500PCS: 7-15days, 500~1000PCS: 15-20days
3. Sample can be delivered in 7days
4. Shipping freight are quoted under your requests
5. Shipping port: Shanghai, Mainland China
6. Discounts are offered based on order quantities
ODM & OEM WELCOMED
1. Send us drawings of your solar street lighting system, we will work out satisfactory solutions for you.
2. Tell us the consumption/lighting power or the road condition/width, we will work out satisfactory solutions for you.
Pole |
Material: Q235 or die-cast aluminum
Height: 2-6m
Thickness: 2.5mm,2.75mm, 3mm
Finish: Hot-dip Galvanize, powder coating
Fastener:Made of stainless steel with high intensity and corrosion protection.
Life span: 25years
Details see CAD drawing of poles of different cases
|
Light |
Power:5-20W
energy-saving light, LED light
Working temperature: -60 to +70 centigrade
IP rating: IP65
Working life: >50000hours |
Solar panel |
Power 15-90W
Mono-crystalline panel or Polycrystalline panel
Power tolerance : ±5%
Cell efficiency:15%-17%
Working temperature: -40°C to 85°C
working life ≥ 20 years |
Battery |
Solar Gel Battery (12V & 24V)
l Chinese leading manufacture of solar gel battery
l Maintenance-free Gel battery
l Long life span: Gel electrolyte – no acid layer, no leaking
l Echo-friendly: No Cadmium. No leaking
l Working temperature: -40 to +50 centigrade
l Easy transportation with no leaking of battery
l working life ≥ 3 years |
Battery box |
Waterproof
Anti-corrosion
Pressure resistant
Heat protection
Life span: 20years |
Controller |
Intelligent sensor of
l Light control
l Time control
l Power control
l Over charging protection
l Discharging protection
l Short Circuit protection
l Reverse polarity protection |
Input voltage |
DC12V/24V |
Light |
LED Chip: Epistar ,Bridgelux or Cree |
Light Body |
Made of Aluminum |
Diffuser |
PC or PMMA |
lampholder |
E27,E40... |
Initial Luminous flux |
6000lm~18000lm |
Color temperature |
5500K |
Color Rendering Property |
Ra>75% |
Beam angle |
>120°on 0°-180°flat surface & >60°on 90°-270°flat surface |
Illuminate range |
18lux~38lux |
Lamp lifespan |
50000hs |
