| Prod Model: |
LJ-TD011, 9W, 15W, 25W, 40W |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Color Temperature: |
2700-6500k |
| Input Voltage: |
AC100V-AC240V |
| Working Temperature: |
-20 Degrees Centigrade -+50 Degrees Centigrade |
| LED Life Span: |
50, 000h |
| Power Factor: |
≥0.9 |
| Warranty: |
2 Years |
| Light Source: |
LED |
| Installation: |
Embedded |
| Application: |
Engineering |
| Lamp Installation: |
Plug Lamp |
| Source Number: |
Single Plug |
| Material: |
Al+PC |
Product Description
Features:
1. Cold light, high efficiency, it is 70% energy less than incandescent lamp and fluorescent lamp;
2. More than 50, 000h life long, reduce the fees of changing light and repair;
3. Use high quality LED chip, precise LED package, high Color rendering index and suitable to high requirement of lighting;
4. Use high quality optoelectronical PC cover, light concentration, high center illuminanc and can meet the certain requirement of lighting;
5. Use high capability costant current driver power source, can protect short circuit, broken circuit, over temperature; Long life, high stability;
6. Green and evironmental protection, no Hg, mercury or other harmful element, no infrared ray or ultraviolet ray, no stroboflash; Can make sure that it is suitable and safe to use;
Applications:
Replacement for conventional fluorescent tubes in
1. Hotels
2. Conference / Meeting rooms
3. Factories & Offices
4. Commercial Complexes
5. Residential / Institution Buildings
6. Schools, Colleges & Universities
7. Hospitals

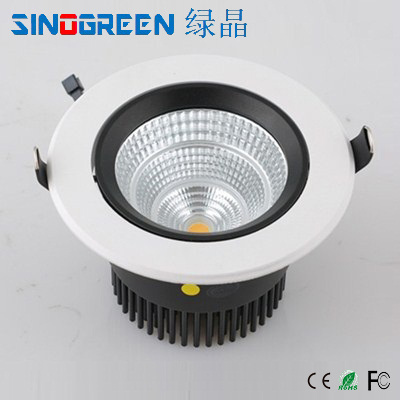

High quality LED Down Light series
Product No.
LJ-TD011-3F-9W
LJ-TD011-4F-15W
LJ-TD011-5F-25W
LJ-TD011-6F-40W
Diameter A
φ110*71mm
φ140*86mm
φ160*97mm
φ190*132mm
Diameter B
φ115*84mm
φ145*101mm
φ170*115mm
φ200*132mm
Hole Size
φ95mm
φ125mm
φ140mm
φ140mm
Output Power
9W*1
15W*1
25W*1
40W*1
LED light source
CLL020-1202
CLL020-1203
CLL030-1205
CLL030-1208
CITIZEN COB
Input Voltage
AC100V-AC240V
Working Frequency
50-60Hz
Power Factor
≥0.9
Beam Angle
24°/26°
Ra
≥80(3000K),≥75(6000K)
Material
AL+PC
Working Temperature
-20 Degrees Centigrade-+50 Degrees Centigrade
Lamp Temperature
≤50Degrees Centigrade
LED Color Temperature
2700-3500K(Warm White), 4000-5000(Natural white)5500-6500K(Pure White)
LED Luminous Flux
630lm
1050lm
1750lm
2800lm
Qty/Ctn (pcs)
50
30
20
20
Certification
CE\FCC\RoHS
