Rubik series is our newest product in 2013. It's ever-changing like a Rubik's cube. This kind of LED display has some very special features: light weight, excellent pixel density, high definition, and varied combination. It looks like a book when folded and is similar to a painting after upfold. Because it's soft, it can be used for any shape LED display. Even better, the remarkably slim and light design makes installation and transportation wonderfully easy. A refresh rate of more than 10,000Hz produces an incredibly vivid, lifelike video and superior performance for all kinds of professional applications.
Features :

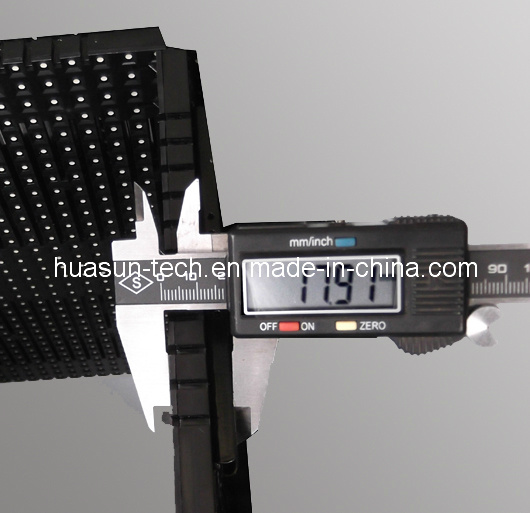

1. Unique body design, slim, light, and semi-transparent (is less than 25mm thick and
weighs less than 10kgs/sq m)
2. A refresh rate of more than 8,000Hz, outstanding image quality and elegant, good for
all kinds of professional uses
3. Flexible and foldable! Any irregular-shaped LED display is available
4. Reliable, built to the highest standards
5. Fast and easy to assemble, no tools
6. Modular for easy serviceability Specifications: Model No Rubik 10 Pixel pitch 10mm Density 10000pixe/m2 Pixel configuration RGB 3-in-1 SMD Brightness(White) 2050 nit Optima visual distance 7m Transparency 17% Max.power consumption 185W/ m2 Average.power consumption 65W/ m2 Recommendation size (Size can be customized) W=320mm L=1280mm T=25mm Weight 9.7Kg/sq.m Work voltage DC 24V Brightness level 16 levels Bit depth per color 16 bit Bit depth per pixel 48 bit Visual angle Horizontal:120 degree ; Vertical:120 degree Refresh rate More than 7000Hz Display mode 1280X1024 Drive mode Constant current Signal type AV,S-Video,VGA,CVBS,HDMI,DVI Control distance HSYV; less than 100m Body structure Plastic,Metal Ingress protection IP 54 Ambient temperature -20~+50 degree Relative humidity 10%~90% Installation Hang Power system Power-600,Power-1200,Power system tions:
Huasun Technology Co., Ltd. is a high-tech enterprise that is engaged in the researching, developing, producing, marketing, and engineer service of LED display and LED lighting. It has been grown in Beijing, capital of China, for over ten years. The main products and services include LED display system, LED digital stage system, LED lighting system. With a business principle of technological innovation and professional service, the company commits to provide high-quality LED products and solutions for all clients.
The company has a R&D team made up of senior engineers. Taking advantage of the technological and cultural resource in the Capital of China, working together with experts in mechanism, optics, and electronics from the main universities, the team is devoted to the research and application of multimedia technology and has gained the leading position in product design, software development, mechanical design and optical application. The company has own many national invention patents in LED display technology. Flexible LED display, one of our patents, is a landmark product in the development of LED display. It is widely used by the clients from all over the world for the advantages of compact size, light weight, and easy installation. We always keep in mind that the mission and responsibility of the enterprise is to change the world by pioneer spirit and innovative product in a technology high speed age. We are always proud of it.
