North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Height:
3m 4m 5m 6m
Style:
Modern simplism style
Technics:
Electroplating
IP Rating:
IP65
Warranty Period:
10 Years
Certification:
UL
Light Type:
Sodium Lamp/Metal Halide Lamp
Material:
Galvanized Steel Q345 S355 A36
Voltage:
110V 220-240V
Product Description

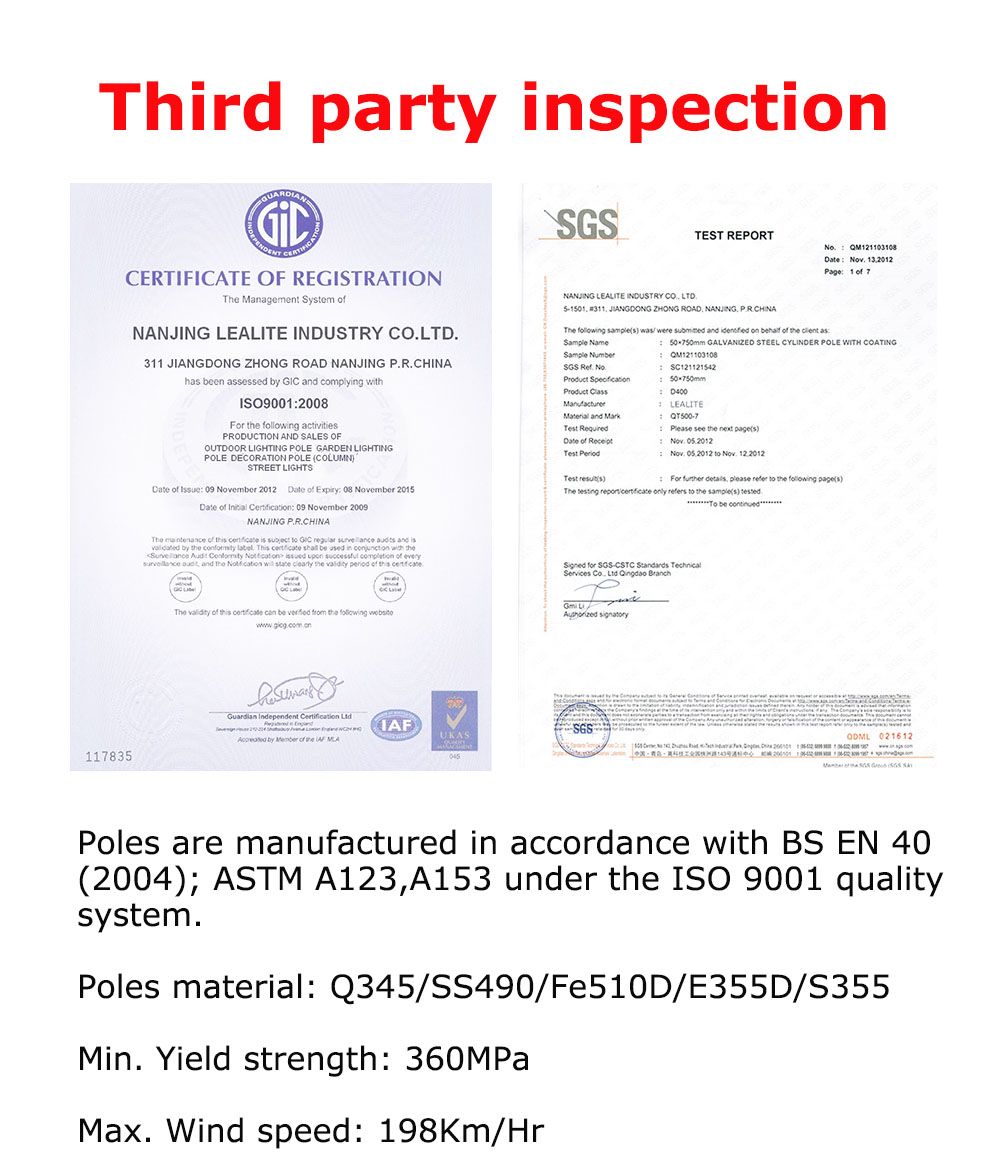

Outdoor lighting pole is manufactured of Q235/Q345/A36 grade steel in accordance with BSEN 40/ASTM A123 standard under the ISO9001 quality system. Galvanized outdoor lighting poles are with spigot mounting,floodlight mounting,decorative lantern arrangements and highmast.
Lealite standard pole, supporting a luminaire with a wind surface of 0.20m²,will not have a pole top deflection of more than 5% of its height above ground when subjected to a basic wind pressure of 500 Pa. A safety factor of 2.5 times the total maximum wind-load is applicable.
To meet demands, complete with terminal block and DIN rail for a miniature circuitbreaker, will be provided and mounted to a bolt provided in opening door.
Poles for direct embedment in the ground will be provided with a 300x300x1.6mm hot dipped galvanised baseplate complete with 2 x hot dipped galvanised steel hookbolts and nuts. Base mounted poles will have a hot dipped galvanised flange plate that can be bolted to a foundation which shall be designed to withstand the forces the pole will experience in service.
Type and accessories, spare parts
Description
Drawing No.
SPIGOT MOUNTING
Mounted into straight pole, hot dipped galvanized
Single side entry spigot
LD-01SA series
double side entry spigot
LD-01DA series
triple side entry spigot
LD-01TA series
Quadruple side entry spigot
LD-01QA series
FLOODLIGHT MOUNTING
Hot dipped galvanized
Floodlight mounting for single floodlight- Type of floodlight to be specified
LD-FLSA series
Floodlight mounting for double floodlights- Type of floodlight to be specified
LD-FLDA series
HIGHMAST MOUNTING
Hot dipped galvanized
Mounting height from 16 meters to 30 meters
LD-HM series
DECORATIVE LANTERN
Hot dipped galvanized, painted in the colour to be specified
2 arm version
3 arm version
4 arm version
5 arm version
FLAG POLE
Completer with rope and rope attachment
BASE PLATE
For rooted mounting pole
Base plate assembly 300*300*3mm Base plate assembly 400*400*5mm
Anchor bolt kit
MINIATURE CIRCUIT BREAKER
5A/10A
LEALITE address lighting needs in a full range of environments-indoors (shops offices hotels factories) as well as outdoors (public places residential areas and sports areas). We also meet people needs on the road by providing safe lighting in traffic (street lighting)
LEALITE lamps offer more light per watt, longer life and feature a compact point source similar to incandescent, allowing good optical control. Main light bulbs include high pressure sodium lamp, metal halide lamp, mercury lamp. All lamps have CE certificated standard accessories: ballast/ starter /fixed capacitor.
LEALITE steel poles are manufactured of Q235/Q345/A36 grade steel maintain a minimum wall thickness of 120 inch; and are circumferentially welded to the base. Aanchor bolts per ASTM A576nuts washers and threaded portion of bolts are hot DIP galvanized. Poles are finished in a premium polyester powder coat for superior weather-ability characteristics.
LEALITE roadway lights is ideal for roadways parking areas/ residential neighborhoods and bridge. Structures suitable for 2G vibration conditions. We deliver a range of innovative and reliable indoor and outdoor lighting and controls solutions specially designed to maximize performance energy efficiency and cost savings. The lighting business serves customers in the commercial industrial retail institutional residential utility and other markets.
LEALITE will support you fruitful products and satisfied service. Free samples can be sent for your evaluation
