North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Base Material:
Aluminum Alloy
Body Color:
Aluminum Alloy
LED Source:
72PCS RGBW 4in1 LEDs
Feature:
Long Lifetime, High Brightness
Cool Sytems:
Natural Convection Heat Transfer
DMX Channel:
4/8CH
Using Place:
Building Dyeing Effect, City Night Scene Lighting
N.W.:
25.3kgs
G.W.:
32kgs
Packing Size:
725*460*705mm
IP Rating:
IP65
Certification:
RoHS
Warranty:
1 Year
Electric Current Type:
AC
Beam Angle:
25 Degree
Power:
720W
Lifespan:
More Than 100.000hours
Input Voltage:
90V-240V
Emitting Color:
10W RGBW 4in1

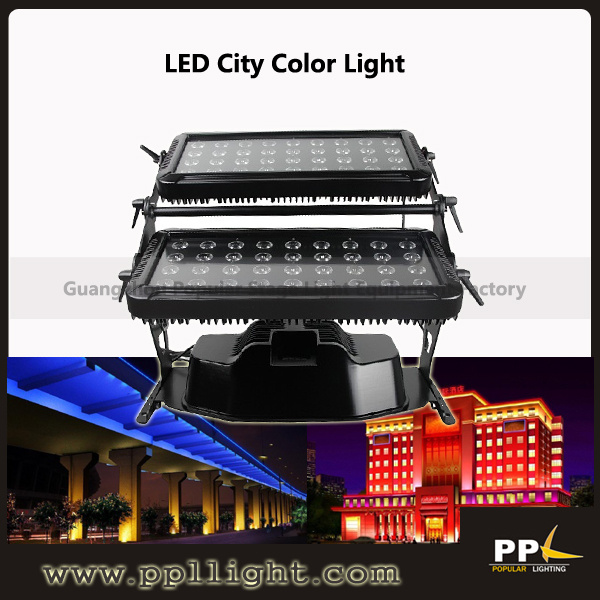

Product Description
Feature: 1. High brightness RGBW 4in1 10W leds 2. Perfect wash effect, Long lifetime 3. Using in professional stage/ Studio/ Theatre/ Building dyeing effect / City night scene lighting
Specification: Item No.: LED-CW205 TECHNICAL PARAMETER Voltage: AC90-240V, 50/60Hz. Power: 720W. Lighting: 10W. LEDs: 72PCS LEDs (RGBW 4in1). Life time: More than 100 thousand hours Dimmer: 0-100%. Strobe: 1-20 times/ second. Bean angle: 25º Display board: Digital Control: Standard DMX512 signal, 3 core interface, master-slave, auto-running. DMX channel: 4/8CH Cooling system: Natural convection heat transfer. Tempreture: -20º C ~ 40º C. Used in professional stage/studio/theatre/dyeing/effects. Net weight: 25.3KG Gross weight: 32KG Packaging: 725*460*705mm(1PC/CTN)
DMX Channel:
Ch1
RED
CH 2
GREEN
CH 3
BLUE
CH 4
WHITE
CH 5
RED,GREEN,BLUE,WHITE 0%--100% DIMMER
CH 6
STROBE CONTROL (1-255 MORE FASTER)
CH 7
001_031 RED 032_095 GREEN 096_192 BLUE 193_254 WHITE 255_255 RGB
CH8
COMBINATION,STAND-ALONE,COLOR MIXING.
Guangzhou Baiyun Popular Stage Light Equipment Factory is a professional stage lighting manufactory which provides integrated services of research, production, marketing, after-sales inquiry, repair and maintenance. Our equipment are widely used in professional theater, entertainment centers, bars, parks, clubs, nightclubs and multifunctional units of conference halls. Compliant with CE and RoHS standards, our products main involve LED moving head lights, LED PAR lights, controllers, Moving head light, etc.
with strong beliefs in "Practical, Professional & Powerful" to the products, the company provides remarkably superb lighting Performance to all Professional Audience.
