LED Cinema Display/P6 3-in-1 SMD Indoor Full-Color LED Display

Name: LED Cinema Display/P6 3-in-1 SMD Indoor Full-Color LED Display
Brand: yourledlight.com
SKU: 686211822
Availability: InStock
Rating: 4.5 (52 reviews)

Price:	US $ 700-1300/Square Meter
Trade Terms:	FOB,CFR,CIF
Min Order:	1/Square Meter
Pay Type:	L/C,T/T,Western Union

Contact Supplier

Guilin Hivision Technology Co., Ltd.

Showroom Product Company Profile

Prod Model:	P6
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Cabinet Size Is Custom Made:	Like 975X975mm
Tube Chip Color:	Full Color
Display Function:	Video Display
Scanning Mode:	1/8 Scan
Application:	Shopping Guide
Pixel Configuration:	1R,1G,1B
Pixel Pitch:	6mm
Certification:	CCC
Pixel Density:	27,777 dots / m²
System Operating Platform:	WIN XP
IP Rating:	IP31

Product Description

High deifnition indoor led screen / led display/led sign/ full color display

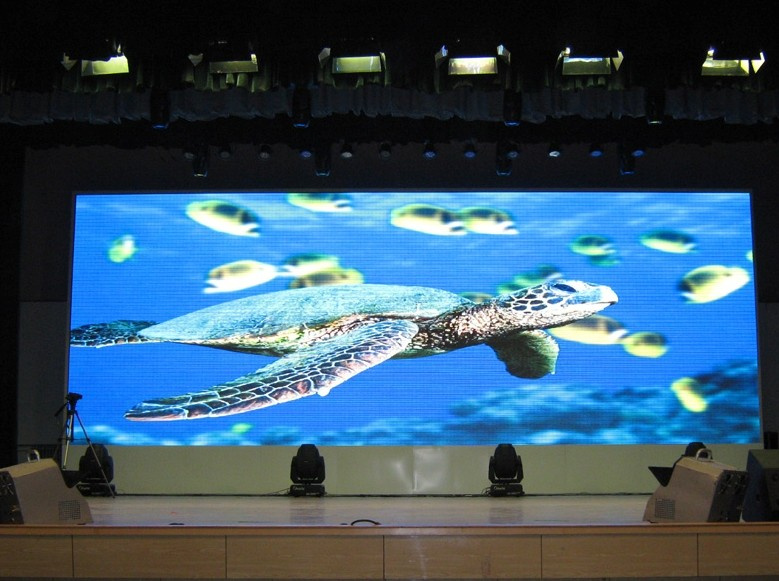

Backdrop stage LED screen
1. CE, FCC, RoHS, C-tick, ISO9001: 2009;
2. Brightness: >1700CD/sqm;
3. High Refresh rate: 3000Hz-4800Hz;
4. Viewing angle: 120degree in vertical and 120degree in horizontal;
5.2 years warranty.
6. Long time techical support

P6 3-in-1 SMD indoor full-color LED display
Item	Details	Parameters
Pixel	Physical pixel pitch	6mm RGB 3-IN-1
	Color	Full color
	Red chip: Sanan	Blue and green chip: Silan
Module	Module resolution	32×32 pixels
Module	Module Size	192×192 mm
Cabinet	Physical resolution	128×128 pixels
	Cabinet Size	768×768 mm
	Physical density	16384 pixels/cabinet
	Module quantity	16pcs=4(H)×4(W)
	Material	Steel or aluminum
	Power supply (50V40A) Quantity	3pcs
	Average power consumption	250W
	Max power consumption	600W
Electricity Parameter	Brightness	2500 nits
	Brightness adjusted	100 grade by software, or by Auto-optic induced
	Color processing	8 - 16 bit
	Display color	16 million - 281 trillion
	Color temperature	6000---8000K
	Physical density	27778 pixel/M2
	Whole display flatness	<1mm
	Best view distance	4 - 28m
	View angle	Horizontal>160°, Vertical>160°
	Storage temperature	40 degree to 60 degree
	Working temperature	20 degree to 50 degree
	Driving Method	Constant driving current, Scan: 1/8
	Refresh frequency	Up to 3000 Hz
	Frame rate	75 Hz
	Humidity (RH)	10% - 90%
	Protection grade	IP31
	Working voltage	DC 5V
	Power supply	AC 110V±10%/ 220V±10%
	Average power consumption	400W/M2
	Max power consumption	1000W/M2
	MTBF	10000 hours
	Screen lifetime	>100000 hours
Control system	Control System	Linsn
	Signal Interface	DVI
	Communication distance	CAT5 cable<100m, optical/fiber<500m
	Signal transfer mode	dot to dot synchronized with computer monitor

About Hivision

Guilin Hivision Technology Co., Ltd. Was founded in 1994, starting as a spin-off of a Bank Database System with LED display project at Computer Science department of Guilin Electronic Engineering University. Through the years, Hivision has grown from a small startup to a full-fledge LED sign and light manufacturer.

Hivision is an ISO9001 certified LED manufacturer with extensive in-house R&D capabilities.

Why choose Hivisi?

In-house LED package ability

We complete the entire LED manufacturing process in-house. Our fully automated LED production process includes from die and wire bonding to package, populating, wave soldering and so on.

Three-step QC process with 1st class inspection equipments

Our strict QC process involves 3-step:

1. Incoming Quality Assurance -BOM

2. Inspection Process Quality Control -Producing

3. Final Quality Assurance - Finished product

Throughout these process, we conduct brightness, white balance, vibration and turning-in tests starting with modules, then panels and completed displays. Once finished, we perform high-pressure water resistance assessments to conform to IP65 standards.

Lastly, we assemble the LED cabinets for video aging and on-site simulations, as well as aesthetic inspections on cabinets and internal components. And prior to shipment, all spare parts are evaluated one last time.

Backed by heavy investment and a strong R&D team composed of 20 professionals with average ten years' experience covering software, firmware, hardware, and mechanical engineering, we are able to provide to you customized need.

Aftersales service

When you receive your shipment, you will find an array of materials to assist you with installation and operation. Documentation and user manuals, as well as software will provide you with all the information that you need to get your LED displays up and running.

Technical support

Free training for operation, maintenance and trouble shooting before the shipment in factory

Life-long free Technical support through Skype and Teamviewer (remote operating your computer).

We strive to understand, inspire and enable our customers and partners to turn their large image dreams into results with known outcomes. We are keeping the aim to add value, through our industry leading competence, with a complete range of high impact screens for permanent installations as well as the rental and staging markets. If you are looking for a reliable partner to realize your project, Hivisi is the right man for the job.
