2015 HOT selling product!

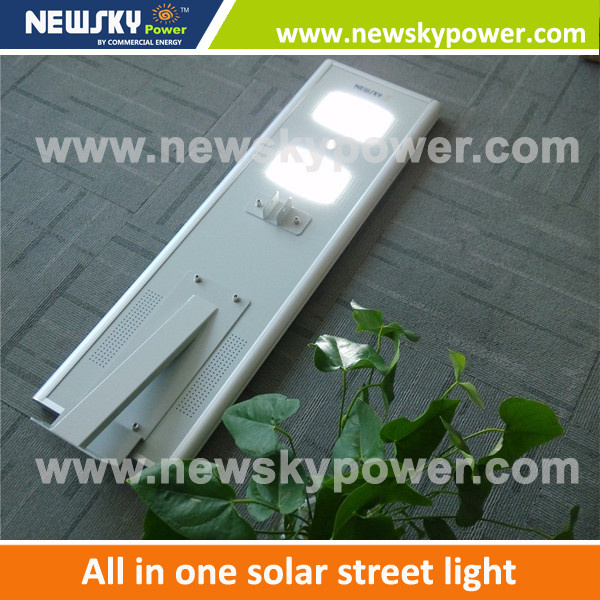

led all in one design solar integrated street light
-------------------------------------------------------------------------------------------------------------------
Models
5w(portable),8w,12w,15w,20w,25w,30w,40w,50w,60w
Features
1. All in one/ integrated design
2. PIR motion sensor, auto work with solar power
3. Easy installation without wires
4. Lithum-ion LiFePO4 battery, Modularity design and easy to replace.
5. Work temp from -20°C to +60°C
6. LED chip from famous brand EPISTAR, BRIDGELUX
7. Aluminium alloy shell
8. Warranty for 3 years
9. IP65/CE/ROHS
-------------------------------------------------------------------------------------------------------------------
Parameters of our 25w integrated solar powered led light with sensor
8w,12w,15w
Model | NSP08 (with sensor) | NSP12 (with sensor) | NSP15 (with sensor) |
LED Light | Max power | 12V 8W | 12V 12W | 12V 15W |
Led chip | EPISTAR, Taiwan |
Lumen (LM) | 800-880Lm | 1200-1320Lm | 1500-1650Lm |
Life time | 50,000hours |
Solar panel | Max power | 18V/15W | 18V/18W | 18V/25W |
Solar cell | High efficiency, Mono |
Life time | 25years |
Battery | Capacity | 6AH | 6AH | 10AH |
Type | Lithum-ion LiFePO4 |
Life time | 5 years |
Charging | By sun | 6-10 hours effective sunlight |
Lighting | Dimming power | >24 hours |
Work temp | Range(ºC) | Charging:0ºC~+60ºC, discharging: -20ºC~+60ºC storage:0ºC~+45ºC |
Colour temp | Range(k) | 6000-6500k |
Height | Range (m) | 3-4m | 3-4m | 4-5m |
Spacing | Range (m) | 8-10m | 8-10m | 10-15m |
Work mode | Customized available | Light on at dusk, light off at dawn auto. PIR motion sensor detection. Full power lighting when a human move in the sensors range. 30% power lighting when a human move out. |
Material | Aluminium alloy |
Certificate | CE / ROHS / IP65 |
Warranty | 3years |
Packing & Weight | Product size(mm) | 504*325*85 | 746*325*135 |
Product weight | 6.5kg | 6.5kg | 8.2 kg |
Carton size(mm) | 560*390*150 | 560*390*150 | 815*390*210 |
GW .for carton | 7kg | 7kg | 9.3 kg |
Container Load | 20GP | 915sets | 915sets | 462sets |
40HQ | 2193sets | 2193sets | 1118sets |
20w,25w,30w,40w
Model | NSP20 (with sensor) | NSP25 (with sensor) | NSP30 (with sensor) | NSP40 (with sensor) |
LED Light | Max power | 12V 20W | 12V 25W | 12V 30W | 12V 40W |
Led chip | Bridgelux , USA |
Lumen (LM) | 2400-2600Lm | 3000-3250Lm | 3600-3900Lm | 4800-5200Lm |
Life time | 50,000hours |
Solar panel | Max power | 18V/45W | 18V/50W | 18V/60W | 18V/60W |
Solar cell | High efficiency, Mono |
Life time | 25years |
Battery | Capacity | 18AH | 21AH | 21AH | 24AH |
Type | Lithum-ion LiFePO4 |
Life time | 5 years |
Charging | By sun | 6-10 hours effective sunlight |
Lighting | Dimming power | >20hours |
Work temp | Range(ºC) | Charging:0ºC~+60ºC, discharging: -20ºC~+60ºC storage:0ºC~+45ºC |
Colour temp | Range(k) | 6000-6500k |
Height | Range (m) | 5-6m | 5-6m | 6-7m | 6-7m |
Spacing | Range (m) | 18-20m | 18-20m | 20-25m | 20-25m |
Work mode | Customized available | Light on at dusk, light off at dawn auto. PIR motion sensor detection. Full power lighting when a human move in the sensors range. 30% power lighting when a human move out. |
Material | Aluminium alloy |
Certificate | CE / ROHS / IP65 |
Warranty | 3years |
Packing& Weight | Product size(mm) | 1130*330*130 |
Product weight | 17.8kg | 18.3kg | 18.7kg | 19kg |
Carton size(mm) | 1190*390*220 |
GW .for carton | 18kg | 19kg | 19kg | 20kg |
Container load | 20GP | 230sets | 230sets | 230sets | 230sets |
40HQ | 600sets | 600sets | 600sets | 600sets |
50w,60w
Model | NSP50 (no sensor) | NSP60 (no sensor) |
LED Light | Max power | 12V 50W | 12V 60W |
Led chip | Bridgelux , USA |
Lumen (LM) | 6000Lm | 7200Lm |
Life time | 50,000hours |
Solar panel | Max power | 18V/80W | 18V/90W |
Solar cell | High efficiency, Mono |
Life time | 25years |
Battery | Capacity | 39AH | 42AH |
Type | Lithum-ion LiFePO4 |
Life time | 5 years |
Charging | By sun | 6-10 hours effective sunlight |
Lighting | discharge | >12hours | >12hours |
Work temp | Range(ºC) | Charging:0ºC~+60ºC, discharging: -20ºC~+60ºC storage:0ºC~+45ºC |
Colour temp | Range(k) | 6000-6500k |
Height | Range (m) | 8-9m | 8-9m |
Spacing | Range (m) | 25-30m | 25-30m |
Work mode | Customized available | Time control, Full power +dimming | Time control, Full power +dimming |
Material | Aluminium alloy |
Certificate | CE / ROHS / IP65 |
Warranty | 3years |
Packing & Weight | Product size(mm) | 1080*450*153 | 1080*450*153 |
Product weight | 24kg | 26 kg |
Carton size(mm) | 1190*520*220 | 1190*520*220 |
GW .for carton | 24.5kg | 26.5kg |
Packs Containers | 20GP | 231sets | 231sets |
40HQ | 516sets | 516sets |
-------------------------------------------------------------------------------------------------------------------
Why choose us as your long-terms partner?
1. Over 10 years professional experience of producing and exporting solar&wind products.
2. Partner of F.A.O. (Food and Agriculture Organization)
3. Own technical team
4. High standard quality control program
5. Excellent speed service always
-------------------------------------------------------------------------------------------------------------------
Company introduction
COMMERCIAL ENERGY GROUP LIMITED
is an energy-saving technology pioneer company, engaged in develop and apply wind power generator and solar system. Located in the QINGDAO Development Zone nearby Qingdao port, the company enjoys an excellent traffic convenience.
In response the call of government concerning on energy-saving & emissions reduction, we majorly focus on the development of wind solar power system. Based on radical innovatory design concept and high-tech application, make fully use of the green, clean energy to achieve zero power consumption, zero emissions, zero pollution.
Guided by the principle of "advanced technology,exquisite product and competent manufacturing",the company is proceeding with the mission of energy saving and green planet building based on the spirit of credit,innovation,hard working and social responsibility.
-------------------------------------------------------------------------------------------------------------------
What'sled all in one design solar integrated street light?
Traditional solar system includes so many parts: traditional lamp ( or LED lamp), solar panel, lead-acid battery, controller, solar panel brackets, battery cabinets. The volume is very large, therefore freight charge is very high, and labor cost of mounting is also very high.
But NEWSKY POWER integrated solar LED street lights solve all the above problems and troubles.
Our unique design is to combine all the necessary parts in one unit. Since we use a light-weight lithium battery instead of lead-acid battery, and design the solar panel together with the LED street lamp. So our solar LED street light looks like a normal LED street light.
As no wires needed,just install light on pole,wall even trees,and press the button,that's all.Let it enjoy sunshine in day, it can bring light to you at night.
it widely used for street,path,garden,square,yard,car depot,marine...
In these two years, NEWSKY POWER integrated solar LED street light is trending and welcomed by global clients. If you are interested in our models, and if your area has abundant sunshine, please contact us and try out our integrated solar LED street light, which helps you to save money and energy.
-------------------------------------------------------------------------------------------------------------------
RFQ
1.What's the meaning of ALL IN ONE?
All quality parts includes Lithum-ion LiFePO4 battery, mono solar panel, LED chip and infrared sensor are built-in.
2. what's the operation way?
NSP8W-NSP40W: Light on at dusk, light off at dawn auto. PIR motion sensor detection . Full power lighting when a human move in the sensors range. 30% power lighting when a human move out.
NSP50W-NSP60W: Light on at dusk, light off at dawn auto .Time control.
3.How long it works at night and rainy days?
It can work all night long auto, it can work for 3-4 rainy days with full charged battery.
4. Does it work in low temperature area?
Charging:0ºC~+60ºC, discharging: -20ºC~+60ºC, storage:0ºC~+45ºC
higher than 0ºC in day and higher than -20ºC at night is OK.
5. how about works on seafront?
It's no problem used for seafront, as the shell material is aluminium alloy, all inside components are anti-corrosion. The waterproof is IP65.
6. What's the lifetime of battery and how shall we replace it?
The lifespan of battery is 5years. It is very easy to replace it. we could provide photos for your reference.
7. Could you accept OEM or ODM production?
Yes. of course, welcome contact us with your detailed inquiry.
8.Can you offer sample?
Yes, generally, sample will be delivered by international express, please let us have your postal code, thanks.
-------------------------------------------------------------------------------------------------------------------
