Lamp Cup for Wide Beam Angle6~12W LED Lamps

Prod Model:	A 65
Markets:	South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia

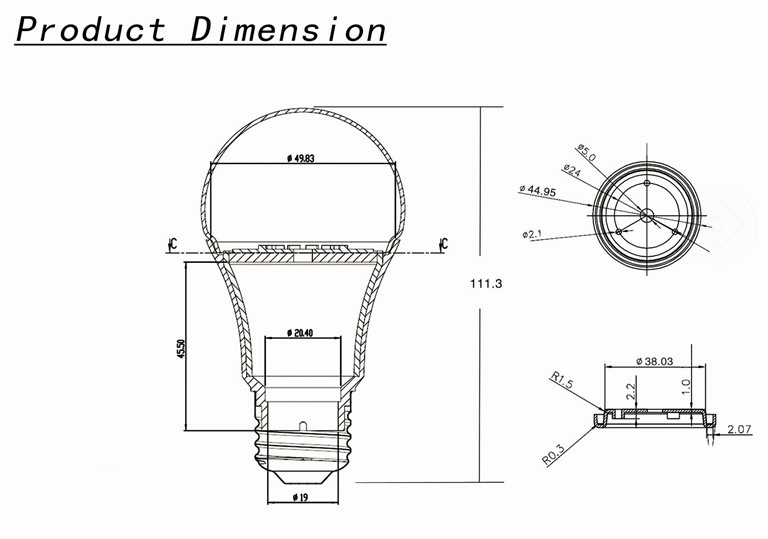

Size:	D:65mm H110mm
Pf:	>0.9
Cct:	3000k& 5000k
CRI:	80
Beam Angle:	60
Lumen Output:	500lm/660lm/840
Power Comsuption:	6W/8W/10W/12W
Life:	30000h
Base Material:	Aluminum
Lamp Holder/Base:	E27
Certification:	RoHS
Emitting Color:	White
LED Chips:	Epistar
Power:	5W
IP Rating:	IP20
Input Voltage:	85~264

Product Description

Structure asesories :

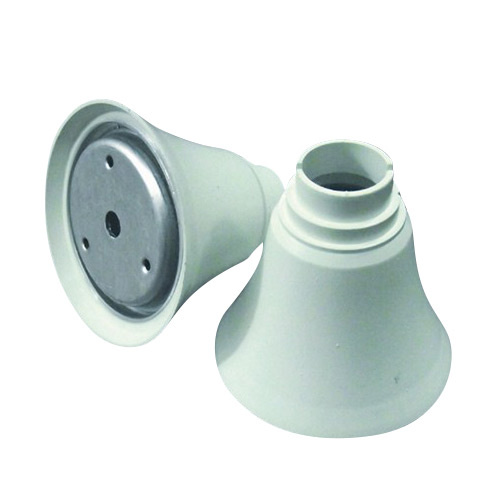

1 heat dispassion cup

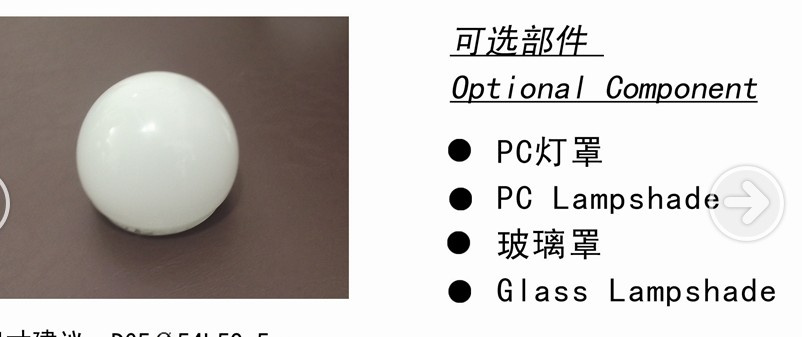

2 Lens : glass or PC
3 lamp base : e27,e26 or b22

Watt : 6W  ,8W , 10w,12 W can be choosed



Test report :
1 Tc =95 C
   Ts=75 C

  Product describle :
 ** Exellent thermal conductive and heat dissipation
 ** Safety : Good electricity performance , high pot test upto 4000V ,sfae and     reliable ;
 ** Weather fastness :Pass the hot-and-cold cycle test ,UV aging test and Good ability of corresion resistance ;
 ** Low cost on whole lamp solution  : non-isolated driver solution /linear driver IC solution /high voltage LED or COB possible .
 ** Green ,enviromental-friendish , high fire-resistance ability ;
 **Easy to pass the CE ,TUV ,UL , PSE ect. safety test .



Easily design :

1  optionals Lens ; more choices for LED chips
2. optionals base: GU10 and  Gu5.3 base available , for different use
3. Even driver , we have the advise , if needed , can provied the CE compliance parts .
4. Materials test report finished .
5. Environment temperature: -20 to 40° C


1. Different p  ower available, meeting different requirements.
2. Completely replace the incandescent bulb.
3. Professional thermal management.
4. No warm up time required and no noise and flickering
5. Without UV or IR radiation in the beam, mercury free
6. Base GU10/GU5.3available
7.2 years warranty
8. In replace of 20W incandescent lamps
9. Plastics+ Glass cover


Application:
1). Living room, bedroom, kitchen, washroom;
2). School, university, hospital, hotel;
3). Conference, meeting room, show room, showcase;
4). Commercial complexes;
5). Factory, plant, warehouse, office;
6). Supermarket, department store.


Trade Terms:
1. Payment: T/T 30% deposits before production, balance to be paid off before shipment
2. Sample can be delivered in 5 working days
3. Shipping freight are quoted under your requests
5. Discounts are offered based on order quantities
6. MOQ: 2000PCS
