Heat Sink:
Red Copper Plate + Aluminum
Light Efficiency:
120 Lm/W
Reflector:
Aluminum or Plastic
Warranty:
5 Years
CRI:
>80 or >85
LED Driver:
Mean-Well UL/ETL/GS/CE/PSE Approved
Certification:
SAA
Color Temperature:
3000k 4000k 5000k 6000k
Color:
Black & Silver
Lamp Body Material:
Copper + Aluminum
Usage:
Mine, Warehouse, Factury, Exhibition,Shipyard
IP Rating:
IP44 & IP65 for Optional
Beam Angle:
60 or 120 Deg
LED Chips:
Bridgelux
Product Description

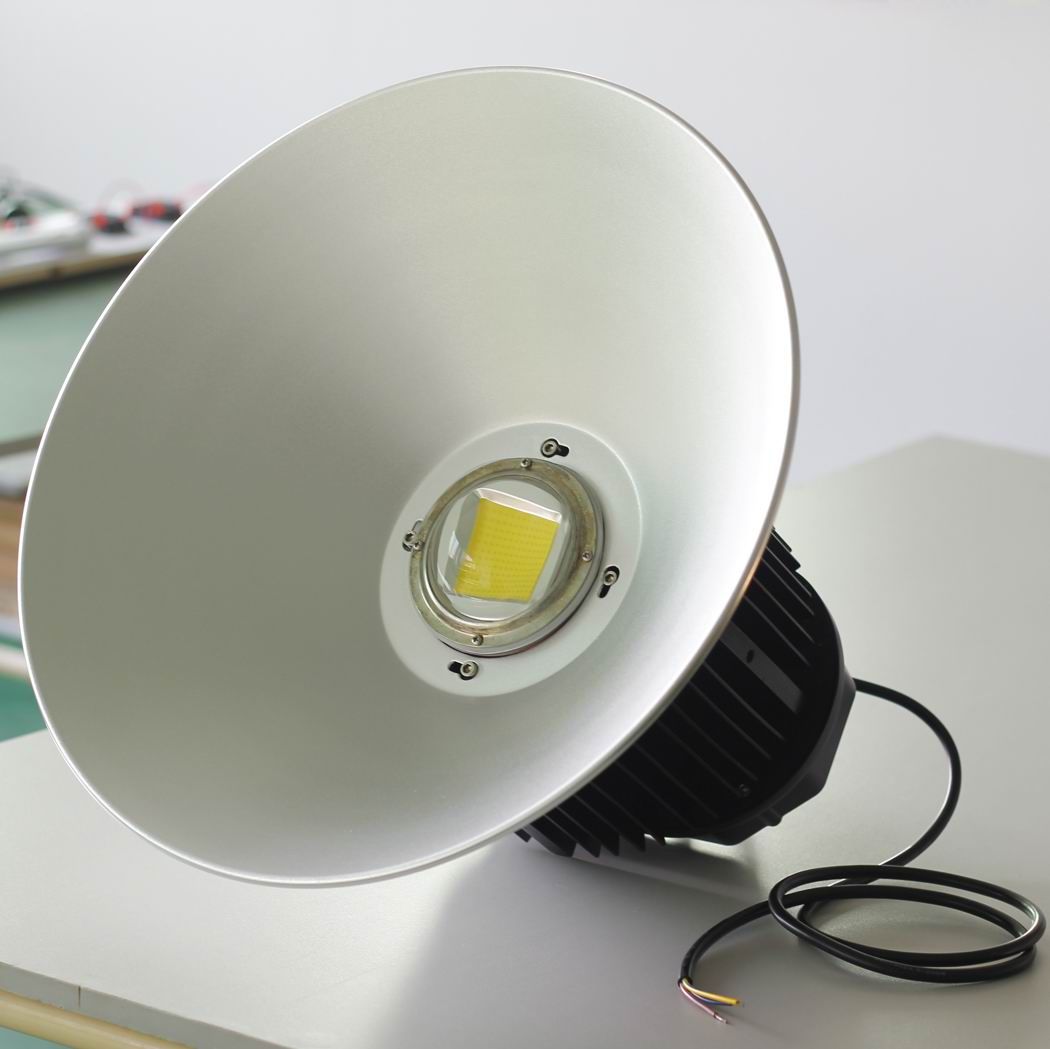

Forcate Super Quality 100W LED High Bay Light, warehouse led bay light , hot sale 100w led bay light was 100% independent design with Red Copper Plate heatsink & Heavier Aluminum Housing. Patented Oval Heat dissipation make whole light temperature less over 5ºC , longer lifespan guaranteed !
Main Features & Advantages: 1. LED Chips BridgeLux 45mil super bright led chips with 120LM/W. Whole led light bay light efficiency >85lm/W Using 500W bigger packed fixture, wider heat plate, a mor uniform distribution of light souce.
2. LED Driver Famous Mean-well UL/CUL/ETL/CB/PSE/CE approved led driver. 5 Years warranty and whole life time maintance service. Class II & DC low voltage output, safe protection. Quick connectors easier for replacement. PF>0.98, Efficiency > 91% IP 65-IP67 Waterproof VDE / TUV approved cables
3. Heat Sink 100% independent oval design, wider cooling area Aluminum Housing heat sink + red copper plate & inner red copper cylinder make high bay light temperature decrease over 5 ºC , longer lifespan guarantted.
4. LED Lens Use optical lens, made by SGS & RoHS approved PC materials, uniform lighting, no astigmatism. Light transmittance: >91%

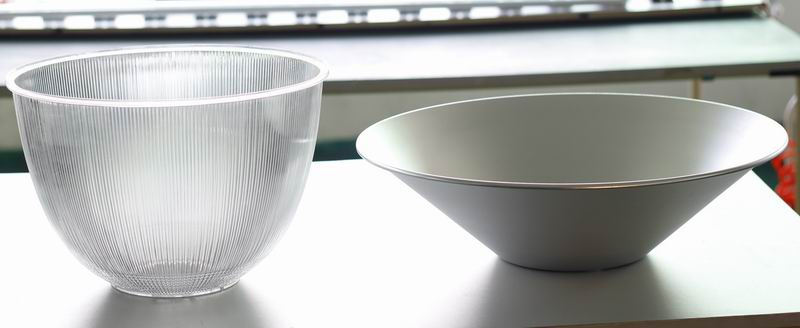

5. Reflector Both 60/120 Degs Aluminum reflector & 60 degs Plastic reflector are available.
Package: Installation:
About Forcate
Forcate Technology Company Limited has been main designing and manufacturing environmental friendly and energy saving lightings from the year of 2006. We are always focus on working hard and continually innovating on LED lighting products. Such as dimmable LED downlights, superior LED wall-washer lights, high quality LED high-bay lights, LED rechargeable floodlights, RGB underwater lights and special designed customerlized lighting solution systems. With the full of management experience, abundant research and development ability, strong productivity, sufficient enterprise foundation, we developed rapidly. Our LED products are widely used in schools, factories, subways, car parks, swimming pools, hospitals and so on. A huge range of lighting, contains domestic & commercial lighting, which have been exported to overseas and win a good reputation in the global market.
Our Products
Dimmable LED downlight, LED ceiling light, LED panel light, LED bulb, LED tube, LED spotlight.
Rechargeable LED floodlight, typical LED floodlight (project light), LED tunnel light, RGB underwater light.
LED Tri-proof light, LED wall-washer light, LED wall light, LED high bay light, LED car light, etc.
We not only supply LED lights, but also help clients to solve lighting solution system.
To improve quality as our own responsibility, to save energy and protect environment for our mission, to lead the industry as our goal. Continue innovation, perfect services and improve quality, customer's satisfaction is our eternal pursuit.

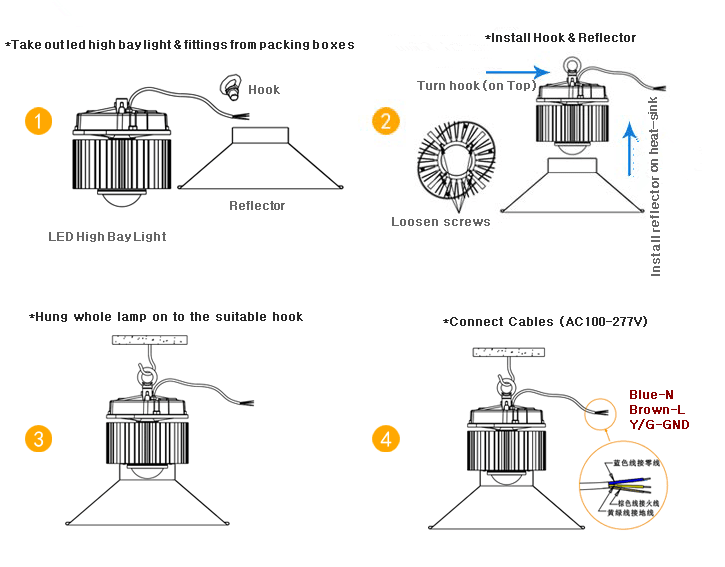

Installation:
