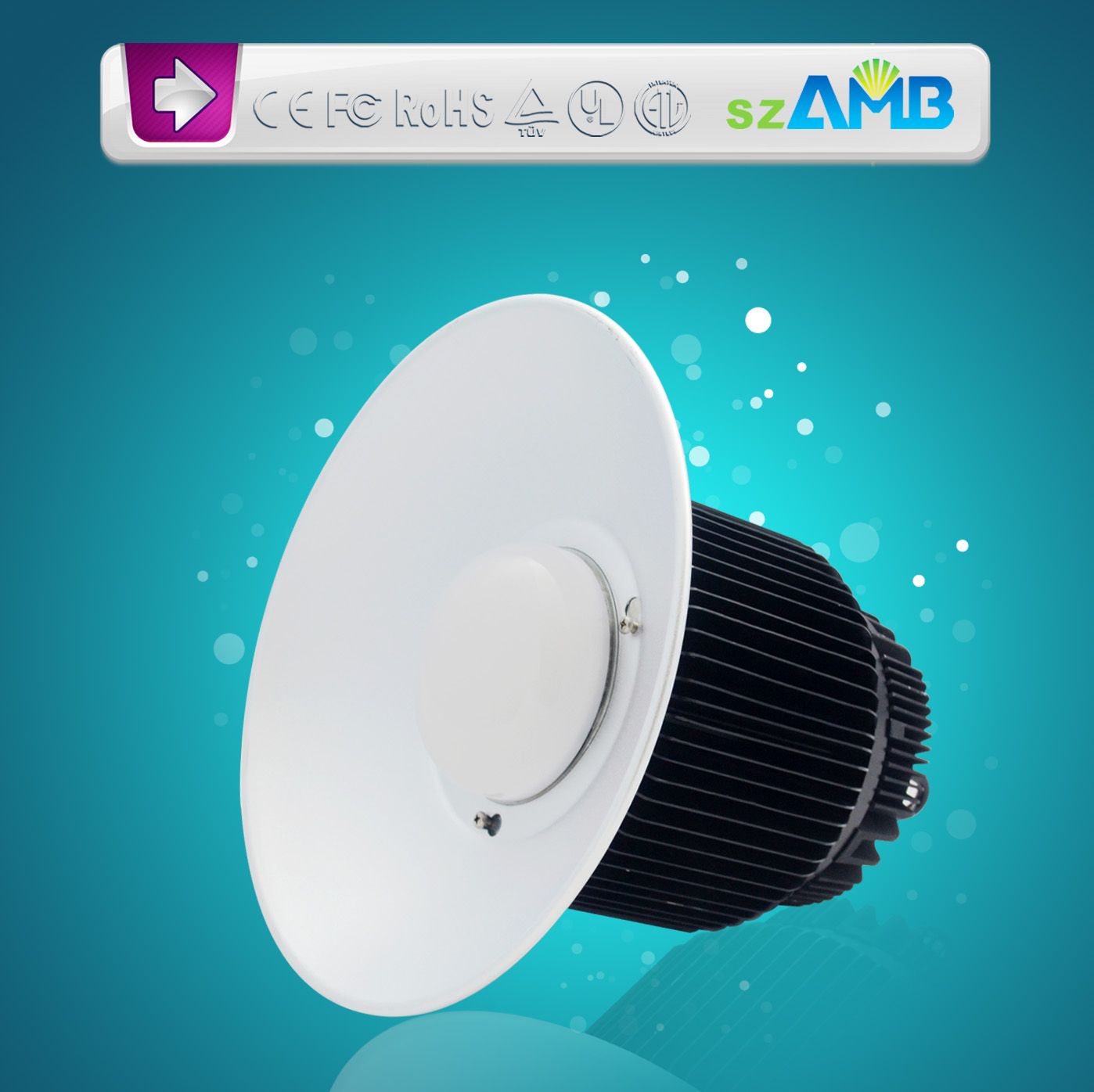

IP6200W LED High Bay with Meanwell Driver for Industrial Lighting
Price: |
Negotiable/Piece |
Trade Terms: |
FOB,CIF,EXW |
Min Order: |
2/Piece |
Pay Type: |
L/C,T/T,Paypal,Western Union |
2013 newest 200w LED High Bay IP65 with UL cert,
High quality 200W LED High Bay: 3-5 years warranty time
Meanwell HBG model driver AC85-AC305V with UL, PSE. CE. ETL. CSA. SAA RoHS, IP67
America Bridgelux LED, which is 125-130lm/w, top one in the world.
Patented heat sink made COB LED operating temperature is 38 - 52 (ambient temperature is 32 )
Copper pin fin heat sinks + Japan HDT technology+2.277 w/Kg degree unique heat sink design are suitable foe extreme cooling needs and for scenarios that require rapid heat spreading,
Model: HBG240-200w
Lumen: 18000lm
Working Voltage 85-305VAC or AC347 AC385
Life Span >80, 000 Hours
Base N/A
Certification CE, RoHS, SAA, TUV, CSA, ETL (UL Pending)
Warranty 60 Months
Packing YES
Color temperature 2800k-6500k
|
Model: AMB-3L-100W |
|
|
Power |
50W-300W |
Luminous |
4800lm-27000lm |
Working Voltage |
85-305VAC or AC347 AC385 |
Life Span |
> 80, 000 Hours |
Base |
N/A |
Certification |
CE, RoHS, SAA, TUV, CSA, ETL (UL Pending) |
Warranty |
60 Months |
Dimension |
Φ 480× 320-Φ 580× 522 |
|
Packing |
YES |
|
Warranty items |
Any quality problem AMB change free |
|
Color temperature |
2800k-6500k |
|
|
|
|
|
|
|
No. |
1 |
2 |
3 |
4 |
5 |
|
|
Model No. |
AMB-3L-50w |
AMB-3L-80w |
AMB-3L-100w |
AMB-3L-120w |
AMB-3L-150w |
|
|
Power Consumptionb
(W) |
50 |
80 |
100 |
120 |
150 |
|
|
LED Initial Flux
(LM) |
5200 |
8300 |
12000 |
12500 |
15600 |
|
|
Lamp Flux
(LM) |
4800 |
7500 |
10400 |
11900 |
13500 |
|
|
Beam Angle |
60° /120° /150° |
60° /120° /150° |
60° /120° /135° /150° |
60° /120° /135° /150° |
60° /120° /135° /150° |
|
|
Input Voltage
(VAC) |
90-305 |
90-305 |
90-305 |
90-305 |
90-305 |
|
|
Power Factor
(PF) |
> 0.97 |
> 0.97 |
> 0.97 |
> 0.97 |
> 0.97 |
|
|
Power Efficiency |
96% |
93% |
104% |
95.8% |
92% |
|
|
Color |
Warm White
Cool White |
Warm White
Cool White |
Warm White
Cool White |
Warm White
Cool White |
Warm White
Cool White |
|
|
Color Rendering Index
(CRI) |
Ra75-85 |
Ra75-85 |
Ra75-85 |
Ra75-85 |
Ra75-85 |
|
|
Working Enviornment |
Temperature: -40 to50
Humidity: 10%-90% |
Temperature: -40 to 50
Humidity: 10%-90% |
Temperature: -40 to 50
Humidity: 10%-90% |
Temperature: -40 to 50
Humidity: 10%-90% |
Temperature: -40to 50
Humidity: 10%-90% |
|
|
Material |
Aluminum Copper
PC |
Aluminum Copper
PC |
Aluminum Copper
PC |
Aluminum Copper
PC |
Aluminum Copper
PC |
|
|
IP Rating |
IP65 |
IP65 |
IP65 |
IP65 |
IP65 |
|
|
Working Life
(Hours) |
> 80000 |
> 80000 |
> 80000 |
> 80000 |
> 80000 |
|
|
Product Dimension
(mm) |
60° :
Φ 390× 290
120° :
Φ 415× 356
150° :
Φ 580× 280 |
60° :
Φ 480× 525
120° :
Φ 580× 415
150° :
Φ 580× 320 |
60° :
Φ 480× 525
120° :
Φ 580× 415
150° :
Φ 580× 320 |
60° :
Φ 480× 565
120° :
Φ 580× 455
150° :
Φ 580× 360 |
60° :
Φ 480× 565
120° :
Φ 580× 455
150° :
Φ 580× 360 |
|
|
Packing Dimension
(mm) |
Lamp Body
3kg/unit
2pcs/carton
Reflector: 30pcs/carton
610× 290× 289 |
Lamp Body
5.5kg/unit
2pcs/carton
Reflector: 30pcs/carton
610× 310× 429 |
Lamp Body
5.9kg/unit
2pcs/carton
Reflector: 30pcs/carton
610× 310× 429 |
Lamp Body
7.2kg/unit
2pcs/carton
Reflector: 30pcs/carton
610× 310× 610 |
Lamp Body
7.5kg/unit
2pcs/carton
Reflector: 30pcs/carton
610× 310× 610 |
|
|
Net Weight/
Gross Weight (Kgs) |
3kg/
3.5kg |
5.5kg 6kg |
5.9kg
6.5kg |
7.2kg
8kg |
7.5kg
8kg
|
|
Comparison of Lifetime:
Pictures
|
Products name |
Life-span compare |
Cost compare |
|
HID high bay |
6000hours |
7 pieces new HID high bay cost, replacement fee |
|
AMB LED high bay |
50000-80000hrs |
5years warranty time
No replacement fee
|
Prod Model: |
HBG240-240w |
Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
Flux: |
18000lm |
Warranty Time: |
5 Years Warranty Time |
LED Brand: |
60mil Bridgelux LED Chip |
Driver: |
Taiwan Meanwell Hbg Series |
CRI: |
>80 |
IP: |
IP65 |
Life: |
80000hrs |
Power Source: |
AC |
Electric Current Type: |
AC |
Emitting Color: |
White |
IP Rating: |
IP65 |
Certification: |
SAA, UL, CE, FCC, RoHS and ETL Certs |
SZAMB is professional smart LED high bay, Unique LED floodlight and New panel style LED tube manufacturer located in Shenzen, China
In 2005, SZAMB was founded and started Researching and Developing LED tube, LED high bay and LED floodlight,
In 2006. SZAMB put 80% energy, money to improve LED high bay series, after 9 months SZAMB LED high bay are upgraded to the top level in the world, we are the top LED high bay manufacturers. SZAMB offer 5years warranty time for LED high bay
In 2007, SZAMB cooperated with Japan Netled. Co. Jp to R&D Networked lighting system, which Optimizing the benefits of LED, NETLED allows granular control of long lasting and low power LED lighting down to the tube level through a cloud(Internet) system, By controlling illumination only when, where and to the degree needed, energy saving are optimized and lighting environment is improved
In 2008, SZAMB National dimmer LED tube set a food in the marketing. This dimmable LED tube range is from 0.2%-100%. Which was warm welcome by Canada, USA, EU distributors. Because it saved lots of money and energy for hotels. Airport. Office and commercial buildings
In 2009, SZAMB cooperated with Sweden energy. YB to R&D panel style LED tube, We know this new design LED tube will change all normal LED tube' S future, our Idea is LOF design (LED On Fixture),
Plug and play LED fixture with male and female connector and IP65 waterproof class advantages, SZAMB panel style LED tube is welcomed by for all high-level hotel, market, commercial building and outdoor garden, road project, SZAMB Saved electronic fee. Fixture fee, wireless fee and replacement fee for our customers
In 2010, SZAMB cooperated with Canada Wilcox Electric company to R&D green housing LED lighting, after 6moths testing by Columbia University, Yale university, it approved SZAMB 200W LED fixture is the best solution for fruit and vegetables growing
In 2011 SZAMB cooperated with Holland Lioris LED driver company. From 2011, SZAMB 9-40W LED tube with 50000hours warranty time set a foot in marketing, we are the only one factory can guarantee 50000hours for full tube because of the exceeding 0.99PF LED driver, , We do the testing in Germany, get TUV, VDE and CE report in Germany located testing lab, this driver tech is most 50 years progressive than other branch
In 2012, SZAMB netled WiFi control l LED tube, LED high bay finished the testing. NETLED lighting in one' S Personal Area can be controlled by iPhone, iPad or other smartphone (Android)
SZAMB cooperated with Japan Yashima company to R&D AC100-260V COB LED. Which is dimmable AC COB LED, no need driver. With this new technology, we will make more and more mini LED high power lighting. Save more money for our customers
We set up on the firm belief of offering the high quality, unique design, automatic functions and fully warranted LED tube and LED high bay to our customer at the most competitive price. We have a strong engineer team which composed of 15 individuals with perfect designers.
Our management system is strictly conducted according to ISO9001-2008, TUV, SGS standard. We always stay ahead of this field because of our talented creativeness, like Unique designed structure and attractive appearance, stable quality proved by TUV/CE/RoHS/FCC, ETL and UL certification. We have a great production group to ensure our production capability, professional LED tube SMT, Soldering machine and 102 people on the production line to make sure 30, 0000PCS of LED tubes and 100000PCS LED high bay output every month. LED technology is high efficiency, cost effective, energy efficient and environmental friendly. Our goal is to keep on researching and developing super LED tube and LED high bay, to offer a bright world. We will let the world know that "SZAMB change your light life ".
