North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Light Source:LED:
Item Type:High Bay Lights
LED Light Source:Epistar Bridgelux/Cre:
Warranty(Years):3
Input Voltage(V):AC85-265V(277V Availa:
Lamp Luminous Flux(Lm):36000lm
Lamp Luminous Efficiency(Lm/W):T90:
CRI (Ra>):T80
Working Temperature:40 - 55:
Lamp Body Material:Aluminum
IP Rating:IP65:
Certification:CE,EMC,RoHS,UL
Certification:
UL
Lamp Body Material:
Aluminum
Color Temperature:
Warm White
IP Rating:
IP65
Power:
300W
Product Description
Packaging & Delivery
Packaging Detail: The size of the radiator package size 270(mm) X 270(mm) X360(mm) The size of the reflector package 590(mm) X590(mm) X 390(mm) The weight of the radiator after packing 5.8Kg The weight of the reflector after packing 1pcs 2.38 Kg 2pcs 2.94 Kg 3pcs 3.5 Kg 4pcs 4.06 Kg 5pcs 4.62 Kg 6pcs 5.18 Kg 7pcs 5.74 Kg 25pcs 18Kg
Delivery Detail: 3-30 days
Specifications

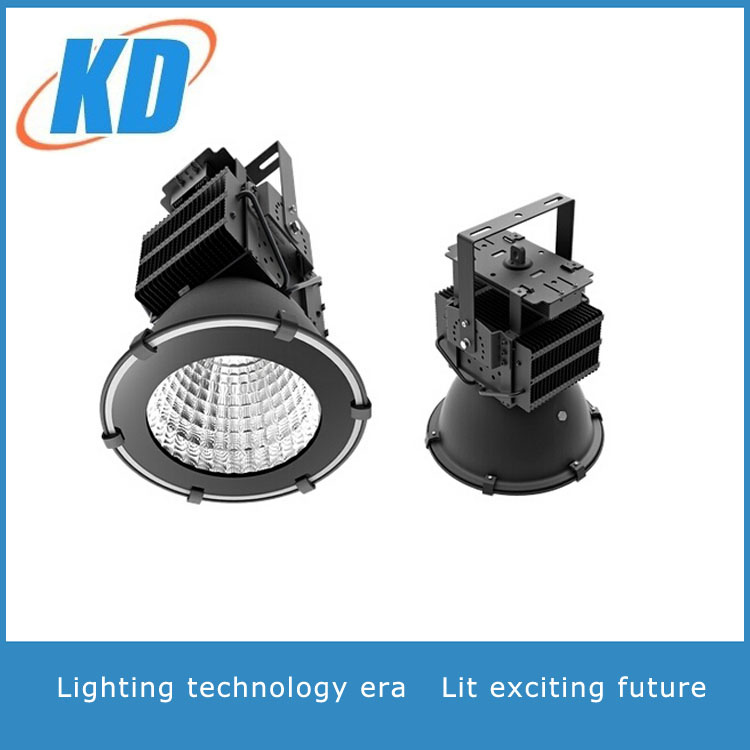

1: IP65 300W LED high bay light
2: High quality, competitive price;
3: Cree Chip, meanwell driver;
4: 5 years warranty
Warranty
Why we can supply 5 years of warranty?
1: We only adopt UL\TUV \VDE\Rohs standard materials and manufacturing technique.
2: More than 6 years of LED lighting manufacturing and exporting.
3: High responsibilites on buyer's money.
4: Just like to build good quality products.
Input Voltage
AC 90 V ~ 30 5V
Frequence Range
50Hz ~ 60Hz
Total Harmonic Distortion
≤ 9 %
Power Factor
≥0.95
Power Efficiency
> 93 %
LED Working Voltage
DC45 ~ 50V
The qty of led
1 92 pc s
Led Consumption
290 W
System Consumption
305 W
Led Luminous Efficiency
80-100 Lm /W
Led Initial Flux
280 00 Lm
lamp's Efficiency
> 91 %
Average Illuminance
10 M
262 Lux
20 M
66 Lux
30 M
30 Lux
Illuminance Area
10 M
The irradiation Are is a circular with 10 M Diameter
20 M
The irradiation Are is a circular with 2 0 M Diameter
30 M
The irradiation Are is a circular with 30 M Diameter
Illuminance Uniformity
> 0. 5
Color Temperature
Detail information refer to above LED parameters table
Color Rendering Index
Ra ≥ 75
Light Distribution
symmetric expression / circular light spot
Light Design
LED +The reflectors second light distribution
LED Junction Temperature
≤ 7 0
Working Temperature
-40 ~ +55
Storage Temperature
-25 ~ +65 ( 25 is the opti on al )
IP Grade
IP6 5
Net weight
11 Kg
Working Life-span
50000H
Power line
1mm 2 three-core cord VDE
Connect wire
Brown
L
Blue
N
Yellow/Green
G
( The color of the lamp shell )
black & Silver-White
certificate
CE ROHS
