All Pixel Pitch:
3.9/4.8/5.2/6.9mm
Pixel Configuration:
RGB3in1 SMD2121/3528
Viewing Angle:
140°/120°
Refresh Rate:
>1920Hz
Gray Scale:
>14 Bits
Protection Level:
IP43
Power Supply:
AC 110-220V,50/60Hz
Working Environment:
Temperature-10-+50 Degree,Humidity 10-90%Rh
Life Time:
>50,000 Hours(>70% Luminous Output)
Certificate:
CE,RoHS
Tube Chip Color:
Full Color
Display Function:
Video Display
Application:
Shopping Guide
Pixel Configuration:
1R,1G,1B
Pixel Pitch:
10mm
IP Rating:
IP43
Certification:
RoHS
Pixel Density:
10,000 dots / m²
System Operating Platform:
WIN XP
Scanning Mode:
1/6 Scan
Product Description
G10/12 Overview:

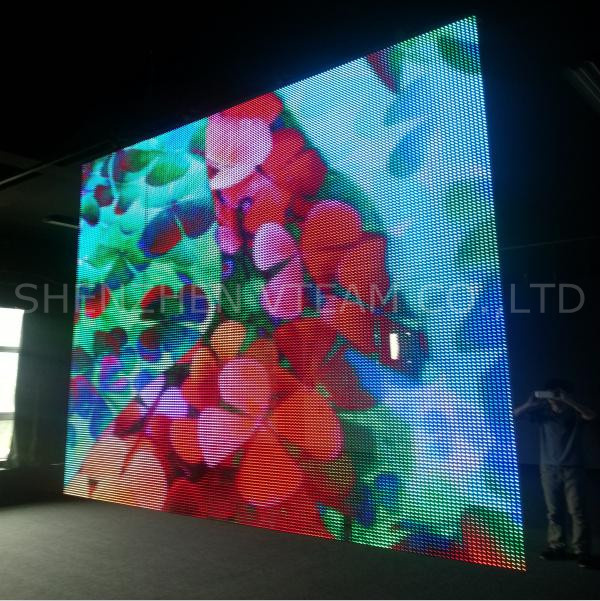

G10/12 are total clear led display screens, with super delicate outlook and fabulous video effect. It gets quick hanging installation for rental business, and you can also stick it to any window or building facade directly for advertising and decoration. 1000mmx500mm as its panel size, but very lightweight as 9kg; Max thickness including power and receiving card box is 54 mm. G10/12 are full of innovative advantages, perfectly suiting for solution designing companies.
Main Advantages:
1. Full transparency gets over 50% backsides visible; Looks like Glass if looking longer.
2. Multiple installation ways, wide using occasions.
3. Lightweight body, single-person handling, easy transportation for touring shows.
4. Can be sticked on windows directly by special glue. Glue is easy to dry, without changing or damaging for buildings.
5. Perfect solutions for window facade, good daylighting, nice decoration and great advertising board.
6. Total clear body ensures stage lights go through easily.
7 Very user-friendly operation ways.
Item Name
G10
G12
Pixel Pitch
10.416mm
12.5mm
Pixel Density
48x96 dot
40x80 dot
Pixel Matrix/ panel
9216 dots/sqm
6400 dots/sqm
Weight
9.5kg
9kg
Brightness
1200-1500 nit adjustable
900 -1500 nit adjustable
Viewing Distance
≥10m
≥12m
Max. Power Consumption
200W/panel
150W/panel
Ave. Power Consumption
80W/panel
60W/panel
Transparency
60%
65%
Panel Size
500x1000x54mm
LED Configuration
RGB 3in1 SMD3528
LED Lamp/Chip
Silar or Epistar
Viewing Angle
140°(H) X 120°(V)
Refresh Rate
1920Hz
Gray Scale
≥14bit
Colors Space
687 billon
Gamma Parameter
-5.0~+5.0
Protection Level
IP43
Application
Indoor;rental&fixed
Input Signal
DVI,VGA,HD-SDI,S-video,Composite,YUV,etc
Input Voltage
AC 90-260v, 50/60Hz
Power Supply
Meanwell or G-energy with UL certificate
Display Media
Video,graphic,animation,signage,cartoon,text,etc
Control System
YDEA(showbox),PC based dynamic capture & mapping.
System Operating Platform
WINDOW98/2000/XP/7/8
Working Environment
Temperature: -10ºC~+50ºC, humidity: 10-90%RH
Warranty
Two years
Lifetime
> 50,000 hours(to>70% luminous output)
Certificate
CE&RoHs
SHENZHEN VTEAM Co., Ltd. is a professional ODM LED Screen manufacturer in Shenzhen, China, specialized in creative indoor and outdoor LED screen with experienced R&D team who has been working in LED display field for more than 8 years.
VTEAM screen is popular with the features of light weight, ultra-thin cabinet, transparent structures and widely-used in the application of TV Station, studios, auto shows, music concerts, clubs, discos, building facade, outdoor decorative lighting projects, exhibitions, celebrations etc.
As one of leaders of LED Screen suppliers in China, All products carry CE RoHS certification, with perfect designed products, customized solution, superior product and service guarantee, VTEAM has been highly praised by domestic and overseas customers, we have been shipping qualified products and services to more than 100 countries and regions all over the world, such as in the USA, Russia, Germany, Sweden, France, Netherland, Spain, Canada, Brazil, Mexico etc. The most notable of those successful projects is that we have done the creative "Giant Football" for the opening&closing ceremony of 2014 Brazil FIFA WORLD CUP!
VTEAM Mission: To create value and profit for customers!
