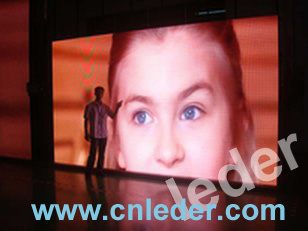

Indoor SMD Video LED Display pH10
| Price: |
Negotiable/Piece |
| Trade Terms: |
FOB |
| Min Order: |
5/Piece |
| Pay Type: |
T/T |
| Prod Model: |
PH10 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Pixel Configuration: |
1R,1G,1B |
| Pixel Pitch: |
10mm |
| Scanning Mode: |
1/4 Scan |
| Pixel Density: |
10,000 dots / m² |
| Display Function: |
Video Display |
| Tube Chip Color: |
Full Color |
| System Operating Platform: |
WIN XP |
| Certification: |
CE |
| Application: |
Stage Performance |
| IP Rating: |
IP45 |
Product Description
Indoor SMD Video LED Dislay pH10:
1) Relatively low cost
2) Stable capability
3) High brightness
4) Good after-sales
|
Pixel |
Pixel Pitch(mm) |
10mm |
|
LED configuration |
SMD3in1 |
|
LED Package |
3528 |
|
Module & Cabinet |
Module Pixel (dots) |
16× 16(W*H) |
|
Module Size (mm) |
160mm× 160mm(W*H) |
|
Standard Cabinet Size (mm) |
1280× 960× 100(W*H*D) |
|
Cabinet resolution (dots) |
128× 96 |
|
Electric Power |
Input Voltage(AC) |
220V± 10% or 110V ± 10% |
|
Current Leakage to Ground (mA) |
< 3mA |
|
Average Power Consumption (W/sqm) |
120W/sqm |
|
Max. Power Consumption (W/sqm) |
400W/sqm |
|
Control Mode |
Control Mode |
Synchronization |
|
Control System |
VAG+DVI Card+Control Cards+Transmission Cables |
|
Video Acceptable |
TV VCD DVD |
|
Display Mode |
640× 480/800× 600/1024× 768/1280× 960… 1920× 1200/2048× 640 |
|
Transmission Distance |
CAT-5E≤ 130m/Multi-mode Optical Fiber≤ 500m / Single Mode Optical Fiber≤ 10km |
|
Main Technical Parameter |
Scan Mode |
1/4 |
|
LED DriveMode |
Constant Current |
|
Brightness (cd/sqm) |
1500cd/sqm |
|
Pixel Density |
10000 dots/sqm |
|
Viewing Distance(m) |
5-350m |
|
Hor. Viewing Angle(degree) |
140° |
|
Ver. Viewing Angle(degree) |
140° |
|
Brightness Calibration |
256 grade |
|
Gray Calibration |
4096 grade |
|
Images Calibration |
Contrast/Tonality/Single Module Lightness |
|
Refresh Rate |
300---2440 frame/s |
|
Frame-changing Frequency |
More than 60Hz |
|
Display color |
17M---69G |
|
Continuous Working Hours |
> 72 Hours |
|
Using Life |
100, 000 Hours |
|
MTBF |
> 10, 000 Hours |
|
Scatter OOC Point |
< 0.01% |
|
Continuous OOC Point |
None |
|
IP Grade |
IP65 |
|
Working Temperature |
-35C---+60C |
|
Working Humidity |
Outdoor 10---90% |
|
Software |
SAGE Studio |
|
Cabinet Weight (Kg) |
49Kg/sqm |
