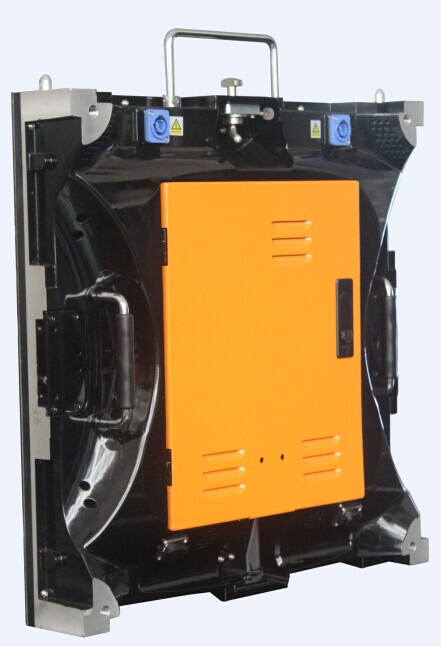

HTS SMD LED DISPLAY FOR AV RENTAL USE
4.81mm pixel pitch, indoor die-casting aluminum slim led displays
The premium 4.81mm die-casting LED display system for indoor use.
Fast & seamless assembly, superb image quality, wide viewing angles and unrivalled reliability.
Features:
1. Die-casting aluminum housing, rugged, good-looking. To ensure that the display of the seamless.
2. Super lightweight and thin, light-weight at 8.6kg/tile. Ultra-slim at 77mm depth.
3. Using E-energy universal voltage power supply, stable performance
4. Receiving card+HUB no flat cable. Stable performance, more reliable connections.;
5. No tools to assemble and dismantle, less worker and saves the cost
6. It suit for hanging-up, each hanging beam can bearing 10-15 pcs cabinets.
Specification |
LED |
|
Color |
Package |
Chip Brand |
View Angle |
Wavelength |
Test Cond. |
Red |
SMD2020 Black-face |
Epistar |
120°/120° |
625nm |
25 degree,20mA |
Green |
Silan |
120°/120° |
520nm |
25 degree,20mA |
Blue |
Silan |
120°/120° |
467nm |
25 degree,20mA |
Module |
|
Model No. |
HTS-P4.81 |
Pitch |
4.81mm |
Screen mode |
Real Pixel |
Physical density |
43264 Pixels per square meter |
LED type |
3-in-1 SMD3528 black-face |
Drive mode |
constant current |
Cabinet |
|
Resolution |
104x104pixels |
Width |
500mm |
Height |
500mm |
Depth |
60mm |
Weight |
8.6KG/cabinet |
Cabinet color |
Black |
Material |
Die-casting aluminum |
LED panel |
|
Brightness |
≥1400cd per square meter |
Flatness |
Gap≤0.5mm |
Gary scale |
65536 BIT |
Screen color |
281 trillion |
Scan method |
1/16 |
Operation power |
AC110V/220V, 50-60Hz |
Max power consumption |
250W/cabinet |
Ave power consumption |
120W/cabinet |
Control Mode |
Synchronous display with control PC by DVI |
Screen Refresh Frequency |
≥960Hz |
View angle |
Vertical: 120°, Horizontal: 120° |
Support Input |
composite, S-video, DVI,HDMI, SDI,HD-SDI,VGA |
Control Distance |
Ethernet cable≤120m or Fiber Optic>120m |
Brightness Correction |
pixel, module, cabinet |
Operating humidity |
10% - 80% RH |
Operating life |
100,000 hours |
MTBF |
5000 Hours |
Protection level |
IP40 front, IP20 rear |
Out of control rate |
0.02% |
