Cabinet Material:
Die-Cast Aluminum
LED Encapsulation:
SMD3528
Module Size:
288X288mm
Cabinet Resolution:
96X96dots
Tube Chip Color:
Full Color
Display Function:
Video Display
Pixel Pitch:
6mm
Pixel Configuration:
1R,1G,1B
Pixel Density:
27,777 dots / m²
Scanning Mode:
1/8 Scan
Display Type:
LED Video Display
Application:
TV Monitor
Certification:
FCC
System Operating Platform:
Win XP, Win 2000, 98, Nt,Win7/8
IP Rating:
IP31
Product Description
Full Color P6 Slim Indoor Rental LED Video display for background Screen with Die-casting Cabinet 576x576mm,super slim,lower power consumption, lower cost, long life span, 2 years warranty
Product advantages:
1.High resolution, High definition, Good performance
2.Slim rental led screen with panel size of 576X576mm, thickness is only 60mm
3.Die-casting Aluminum material keep strong configuration and lasting
4.Light weight, only with 10.5kgs per panel, it is portable,easy to move and transport
5.With fast locks and aviation plugs, easy to install and dismantle without any tools
6.Packed with flight case, convenient to pack and transport
7.The cabinet size also suit for P4.8, P5.33, P6 SMD 3 in 1 LED display

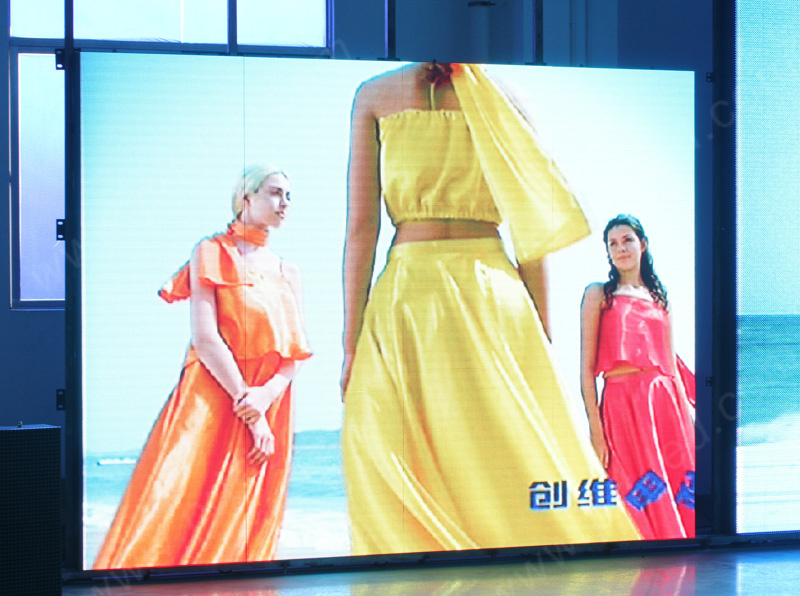

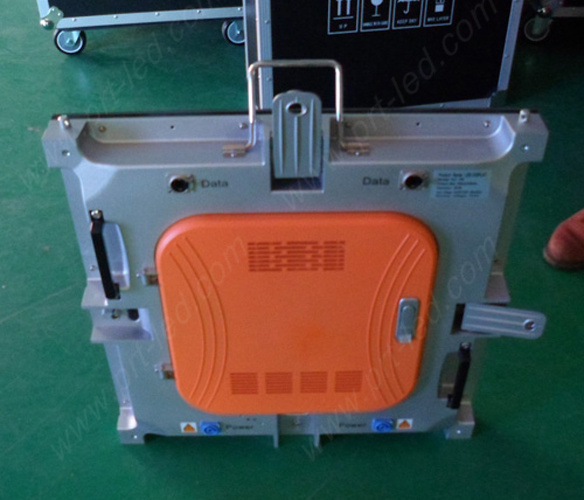

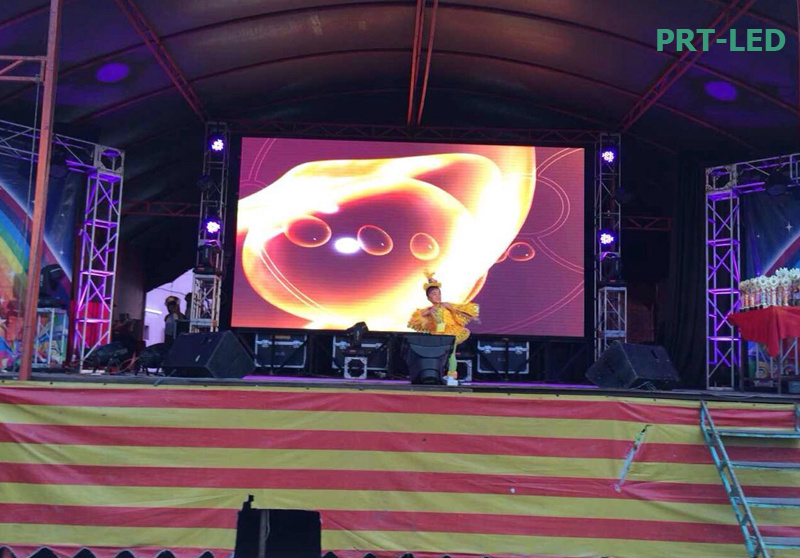

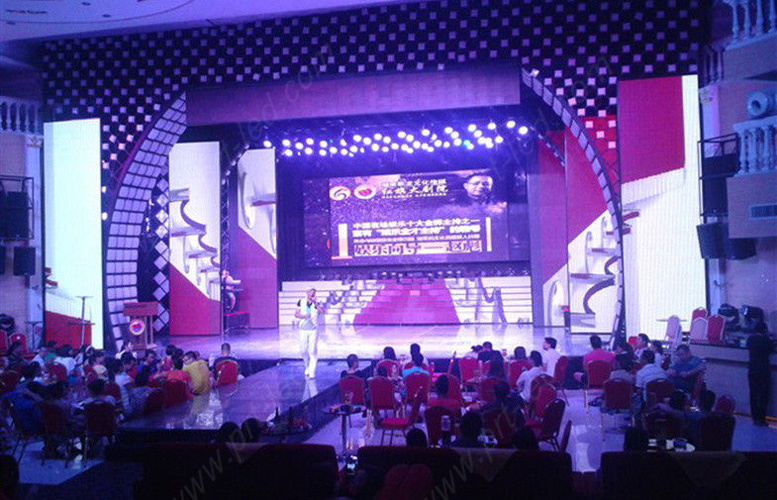

More pictures for reference:
P6 SMD3528 Indoor full Color LED Screen Specification
Pixel pitch
6mm
Pixel Configuration
1R1G1B
LED component
SMD3528
Size of module
288mm*288mm
Resolution of module
48x48
Size of cabinet
576mm x 576mm x 65mm
Resolution of cabinet
96x96
Material of Cabinet
Die-casting Aluminum
Weight of Cabinet
12.50KGS
Brightness
>1500cd/sq.m
Density
27777dots/sq.m
Best viewing angle
140 /140
Pixel Configuration
1R1G1B
Best viewing distance
5-60M
Maximum power consumption
800W/sq.m
Average power consumption
500W/sq.m
Driving method
1/8 scan
Control method
Synchronization
Gray scale
65536
Colors
256*256*256
Color temperature
3200-9300k
Uniformity
97%
Working voltage
AC220V/110V±10%
Working temperature
-20ºC~+50ºC±10%
Working humidity
10%~ 90%
MTBF
10,000 hours
Frame frequence
50/60Hz
Refresh frequence
>1920Hz
IP grade
IP31
Life Span
100,000 hours
Data transafer method
RJ45
Pratical standard
CCC TUV-CE ETL etc.
Effectivce Communication Distance(without relay)
Unshielded twisted pair net line transmission distance:100M, max transmission distance:130M; Multi-mode optic fiber: 500M; Single-mode optic fiber: 10KM
Accepting signal with video processor
PAL/NTSC/SECAM,S-Video;VGA;RGB;HDMI,DVI,Composite Video;SDI,DP etc.
Systems operating platform
WINDOWS(WINXP,WIN7/8/10), and interfaces for secondary development
