Pixel Configuration:
RGB3in1 SMD2121/3528
Panel Size:
480X480X80mm
Refresh Rate:
>1920Hz
Gray Scale:
>14 Bits
Protection Level:
IP43
Power Supply:
AC 110-220V,50/60Hz
Working Environment:
Temperature-10-+50 Degree,Humidity 10-90%Rh
Life Time:
>50,000 Hours(>70% Luminous Output)
Certificate:
CE,RoHS
Export Markets:
Global
Tube Chip Color:
Full Color
Display Function:
Video Display
Scanning Mode:
1/16 Scan
Application:
Shopping Guide
Pixel Configuration:
1R,1G,1B
IP Rating:
IP43
Certification:
RoHS
System Operating Platform:
WIN XP
Pixel Pitch:
3.75/4/4.6/5/6mm
Pixel Density:
27778-71111dots/M²
Product Description
Product Description
Fi Overview:

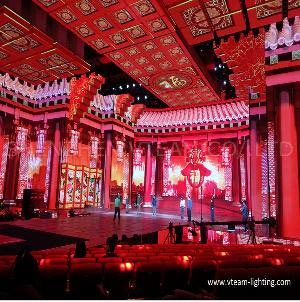

Fi is a high quality product with high definition and soft image. It takes the technology of all die casting aluminum, which is secure and nice in appearance. It's light and each module connected by the special connecting constitution to achieve the fast assembly. Fi is suitably applied in vocal concert, bars, nightclubs, DISCO and supermarket for displaying and advertising use.
Main Features:
1. All die casting aluminum, secure and nice in constitution.
2. Dust proof, IP 43
3.1R1G1B 3-IN-1 SMD, good in mixture color
4. Large viewing angle, the panel viewing angle is up to 140, the vertical angle could reach 140, the image won't be out of shape and color cast between the rang.
5. Could be exact connected and easy to install and dismount.
Item
Fi3.75
Fi 4
Fi 4.6
Fi 5
Fi 6
Pixel Pitch
3.75mm
4mm
4.615mm
5mm
6mm
LED Type
SMD2121
SMD2724
SMD2724
SMD3528
SMD3528
Pixel Matrix /pcs
128*128
120*120
104*104
96*96
80*80
Pixel Density/sqm
71111
62500
46952
40000
27778
Brightness
900nit
1000nit
1000nit
1500nit
1500nit
Driving Mode
1/16 scan
1/15 scan
1/13 scan
1/12 scan
1/10 scan
Viewing Distance
≥3m
≥4m
≥4m
≥5m
≥5m
Weight
8.5kg/panel
Max. Power Consumption
120W/panel
Ave. Power Consumption
60 W/panel
Panel Size
480x480x80mm
LED Configuration
RGB 3in1 Black
LED Lamp/Chip
Silar or Epistar
Viewing Angle
140°(H) X 120°(V)
Gray Scale
≥14bit
Refresh Rate
2880 Hz
Color Temperature
8000K±500
Colors Space
687 billion
Protection Level
IP43
Application
Indoor,rental&fixed
Input Signal
DVI,VGA,HD-SDI,S-video,Composite,YUV,etc
Input Voltage
AC 220V±10%, 50/60Hz
Power Supply
Meanwell or G-energy with UL certificate
Display Media
Video,graphic,animation,signage,cartoon,text,etc
Control System
YDEA(showbox),Nova,Linsn,PC based dynamic capture & mapping.
System Operating Platform
WINDOW98/2000/XP/7/8
Working Environment
Temperature: -10ºC~+50ºC, humidity: 10-90%RH
Warranty
Two years
Lifetime
> 50,000 hours(to>70% luminous output)
SHENZHEN VTEAM Co., Ltd. is a professional ODM LED Screen manufacturer in Shenzhen, China, specialized in creative indoor and outdoor LED screen with experienced R&D team who has been working in LED display field for more than 8 years.
VTEAM screen is popular with the features of light weight, ultra-thin cabinet, transparent structures and widely-used in the application of TV Station, studios, auto shows, music concerts, clubs, discos, building facade, outdoor decorative lighting projects, exhibitions, celebrations etc.
As one of leaders of LED Screen suppliers in China, All products carry CE RoHS certification, with perfect designed products, customized solution, superior product and service guarantee, VTEAM has been highly praised by domestic and overseas customers, we have been shipping qualified products and services to more than 100 countries and regions all over the world, such as in the USA, Russia, Germany, Sweden, France, Netherland, Spain, Canada, Brazil, Mexico etc. The most notable of those successful projects is that we have done the creative "Giant Football" for the opening&closing ceremony of 2014 Brazil FIFA WORLD CUP!
VTEAM Mission: To create value and profit for customers!
