LEDs:
Opto(Red)+Silan(Green and Blue)
Compatibility:
PC, Video Processor, Camera, I-Pad, etc.
Control:
PC Control in Real Time
Power Input:
AC 220V/50Hz; AC 110V/60Hz, ± 10%
Weight:
34 Kg
Chip Brand:
Epistar / Opto & Silan
Signal Port:
Rj 45
Resolution:
10, 000 Pixels/M2
FOB Port:
Shenzhen
Tube Chip Color:
Full Color
Display Function:
Video Display
Pixel Pitch:
10mm
Pixel Configuration:
1R,1G,1B
Pixel Density:
10,000 dots / m²
Scanning Mode:
1/8 Scan
Display Type:
LED Video Display
Application:
Conference, Live Show
Certification:
C-Tick
System Operating Platform:
Win XP, Win 7, Win 8
IP Rating:
IP 20
Product Description

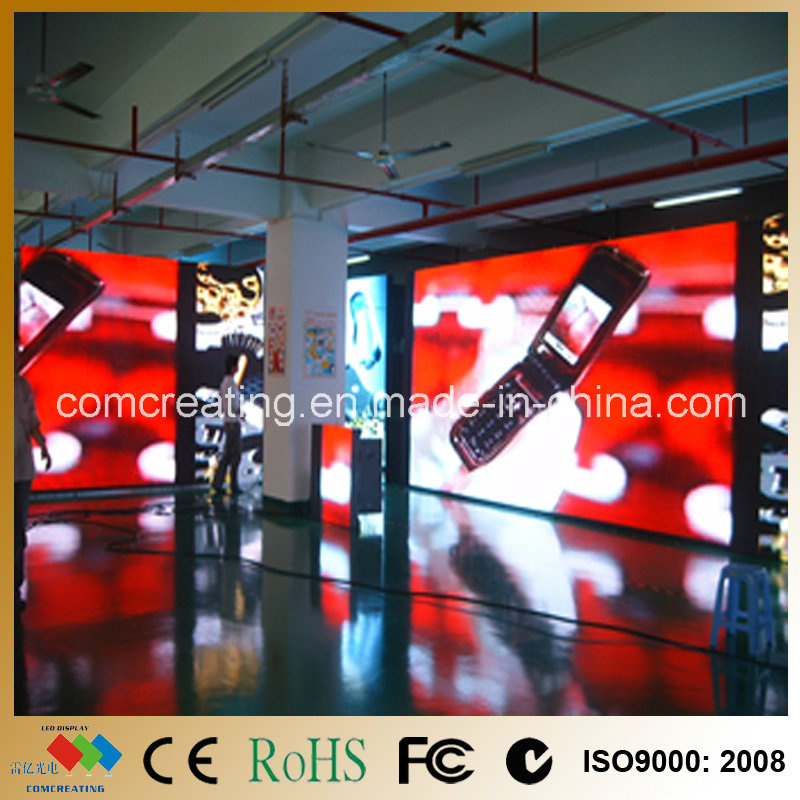

Indoor P10mm Full Color Advertising LED Display Panel
1. CE,FCC,RoHS,C-Tick approved 2. High defination, High refresh 3. Superior uniformity, Good display effect 4. 2 years warranty, best after-sales service 5.Video, flash, animation, graphic, text available; 6.Installation structure drawing offered FOC; 7. On-line remote service is available; 8.Factory visiting and inspecting is welcome; 9.OEM service offered; 10.Models available: Indoor led display-P4mm, P5mm, P6mm, P7.625mm, P8mm, P10mm, P12mm, etc. Outdoor led display-P10mm, P12mm, P16mm, P20mm, P25mm, P31.25mm, etc.
LED Specification
1
LED Chip Brand
Red: Opto / Epistar Green & Yellow: Silan
2
Wave Length (nm)
R: 625nm; G: 525nm; B: 470nm
3
Pixel Configuration
SMD 3 in 1
Module & Cabinet Specification
4
Physics Distance Between Pixels
10 mm
5
Physics Pixel Density
10, 000Pixel/m²
6
Module Dimensions (W x H)
320 mmX 160 mm
7
Physics Pixel / Module
32 x 16 = 512
8
Cabinet Dimensions ( W x H xT)
960mm X 960mm X 120mm
9
Physics Pixel / Cabinet
96 x 96 = 9216
10
Cabinet Weight
37 kg
11
Cabinet Material
Steel Cabinet / Aluminum Cabinet
12
Cabinet Frame
Standard Frame Simple Frame (without backdoor) Lifting Frame (specially for rental use)
Screen Specification
13
Brightness
1000cd/m²
14
Viewing Distance (min, max)
>10m
15
Power Consumption / Screen
MAX : 400 w/m² ; Average: 120 w/m² ;
16
Drive Mode
1/8 scan
17
Refresh Rate
300-3000 HZ adjustable
18
Frame Rate
60HZ
19
Display Flatness
0.5mm
20
Maintenance
Back maintenance, replace the module
21
Led Life Span
100, 000 hours
22
Supply Voltage
AC220V/50HZ, ± 10%; AC110V/60HZ, ± 10%
23
Operating Temperature
-20º C~+50º C
24
Operating Humidity
10%-90%
25
Storage Temperature
-40º C~+60º C
26
Viewing Angle
Horizontal: 120° ; Vertical: 120°
27
Grey Scale
Red, green, blue each 16k
28
Display Colors
4096 Billion
29
IP Rating
IP20 no water proof, no dust proof
30
Aging Time in Factory
More than 72 hours constantly
Control
31
The Software
LED Studio
32
System Supported
Win 98 / 2000 / 2003 / XP / WIN7
33
Control Mode
Real Time Control (Synchronous)
34
Display Capability
Flash, Video, Graphic, Text
35
Signal Supported
RGB, VGA, DVI, etc.
Product Features:
High quality: Use high quality LEDs with high luminous efficiency and low brightness decay to make the display stable.
Good effect: To show vivid and clear pictures with high resolution, but low cost; Has good display effect in both pictures and letters because of using real pixel technology.
Good uniformity: Brightness difference within 10% between any two LEDs, to ensure the brightness and color uniformity of the display; Good uniformity in color solve the problem of mosaic well.
Advanced technology: Advanced technology of production ensure the quality and lifetime of LED display; With a full range of anti-static measures, effectively reducing the damage to LED from the static, so as to control the death rate of LED five over one million each year.
Diversified display modes: The products support multiple display modes.
Easy operation: The products adopt popular video playing software to facilitate system operations.
Easy maintenance: Easy for maintenance, and can fix the single point to save the maintenance cost.
Available range: The indoor LED display screen is extensively used in hotel lobbies, conference rooms and retail showrooms for product display, indoor events and for the beautification of commercial as well as residental premises.
Pre-sales support 1. We offered technical advice to our customers before buying our products. 2. Help customers to choose suitable products within budget with most economy benefit. 3. Design the framework structure to install our led products with technical drawing. 4. We offered software customization for our customer's specific usage.
After- sales service 1. We promise our customers more than just two years warranty service! We provide free maintenance services including remote configuration, technical consultation, and trouble shooting for our customer. 2. We promise a life time follow-up service for all the equipment supply by our company. These include continuously improve of system functions and upgrade of system software. 3. We offered training to our customer who includes operating and maintenance of our products.

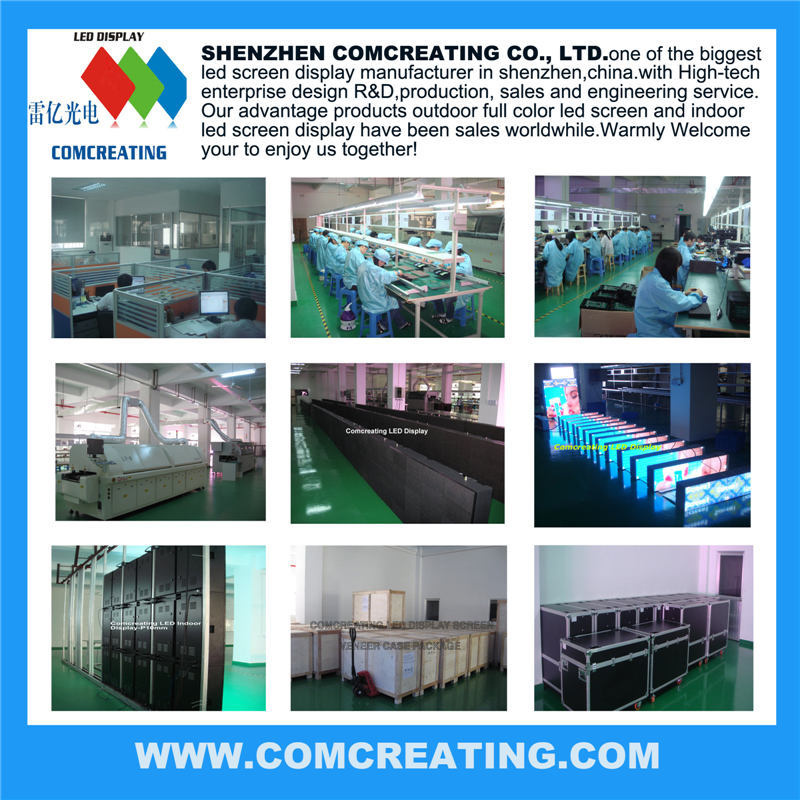

Shenzhen Comcreating Co., Ltd is a professional enterprise engaged in the LED display system research, productionn, sale and service. Our main products include outdoor / indoor LED Display. More than 200 employees work in our company. 50 sets of advanced equipments including lastest automatic optic-electronic test system are furnished in product line. The output is more than 1000 sq. M/month.
Due to our highly skilled R&D staff and the newest technology, all of our products enjoying world-wide reputation for their precise quality, competitive price and the best service guarantee. OEMs/ODMs are welcomed.
Comcreating has provided more than 3000 LED display for over 86 countries and districts. We have builded a mutually beneficail relationship with our customers. In the coming days, we will be more strictly urge our team to offer you LED display with excellent quality, competitive price and better service. Wish we can work together with you to create a win-win relationship!
