North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Tube Chip Color:
Full Color
Display Function:
Video Display
Application:
Dance Floor
Certification:
FCC
System Operating Platform:
WIN XP
Scanning Mode:
1/10 Scan
Pixel Configuration:
3in1 SMD
Pixel Pitch:
6.25mm
IP Rating:
IP31
Pixel Density:
25600 Dots/M2
Product Description

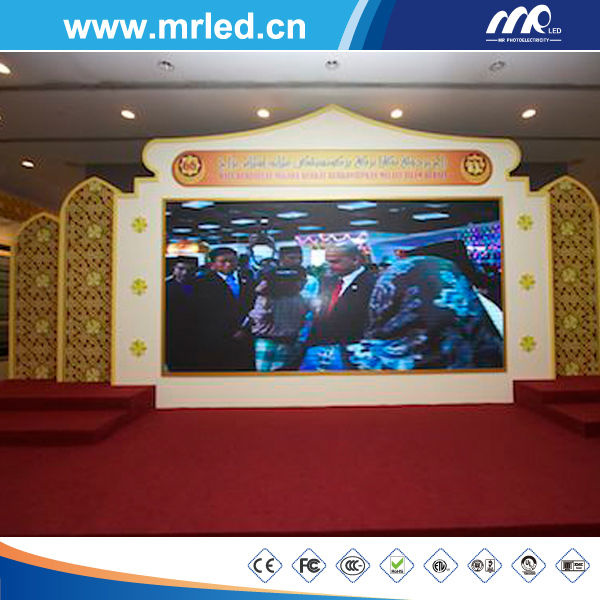

Indoor LED TV Videowall Display Specifications:
1,lower power consumption 2,high viewing angle 3,CCC, CE, TUV,RoHS 4,Warranty: 2 years at least

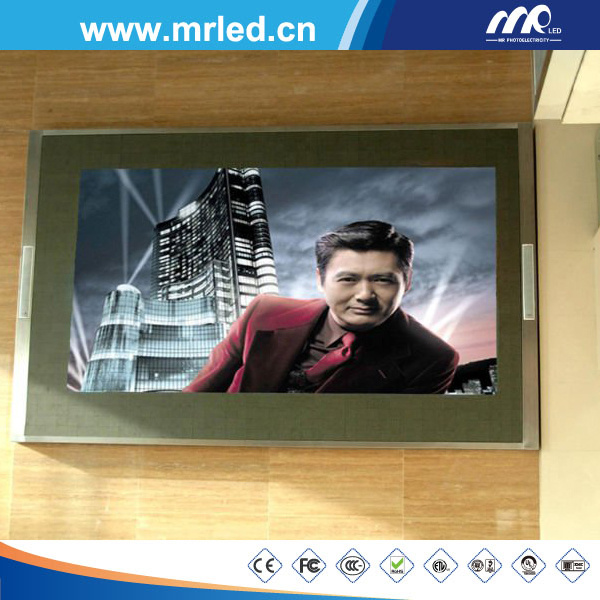

LED TV Videowall Display
Characteristic:
Free Radian Conjuction,
2 Sets of radian locators make it possible to present image in concave and convex shape at customized radians.
Ultra Thin and Light Weight
9KG/cabinet makes it easy to carry and assemble.
Status Indicator
Status indicator on backcover lets you know the working status of LED cabinet without opening backcover.
Strengthening Ribs
The ribs effectively strengthens the construction of cabinet frame, and also can be used as carry handle.
P6.25 LED TV Display Product Description:
(1)Multiplied file formats, such as AVI, MOV, MPG, DAT, VOB are comprehensive, and also we have three display mode as VGA+VIDE and VGA. There are also interfaces for Sound signal and video signal.
(2) 4096 grade grey control system and the color is over 16.7 millions, and the brightness, contrast, saturation, chroma can be adjusted by manual and sensor, whose scope is 256 grade.
(3) Show all kinds of word, text, graph, picture, video, 2-dimention, 3-dimention cartoon and other information with your PC does synchronously.
(4) Line-Double technology is adopted for the picture adjustment.
(5) Can be connected with PC and the web net and show the content, and also can be controlled remotely via VPM+ADSL.
(6) Can be used outdoor in all kinds of weather, and excellent capability of antisepsis, waterproof.
Item
P6.25 Indoor rental led mesh screen
Pixel Pitch:
6.25mm
Driving Method :
1/10
LED type :
SMD3528
Brightness:
≥1300cd/m2
Pixel density :
25600pix/m2
Viewing angle:
120°H and 120°v
Module Size(W*H):
250*250mm
Cabinet Size(W*H*D):
500*1000*68mm
Cabinet weight:
9kg
Cabinet Material:
Aluminum sheet metal
Avarage Power Consumption:
300 W/m2
Max Consumption :
680 W/m2
Refresh rate:
≥900HZ
Color Depth:
14bit
voltage :
200-240V
IP Rrating:
IP31
Operating temperature :
-20-60 degree
Storage temperature:
-40-70 degree
Operation humidity:
10-90%
Storage humidity:
10-90%
Life span (hrs):
≥50000
MTBF (hrs) :
≥3500
Control system:
Linsn/Nova
Source compatibility (with video processor):
YC, VGA, DVI, YUV, SDI, RGB,CVBS,GD-SDI
Compliant standard:
CE,FCC,RoHS,ETL,CCC
We are the leading OEM manufactures of LED Display Screens in China, which is professionally engaged in the production of Indoor, Outdoor and Semi-Outdoor LED Display screens in Single, Bi-color and Multi color for different markets such as Malls and Plazas, Traffic guiding signs, Entertainment and Stage, Shop sign boards and huge Media Bill Boards, Security Monitors etc. We are an ISO 9001: 2000 company, CE certified, RoHS certified, export licence holders.
Shenzhen Mary Photoelectricity Co., Ltd (MRLED) is a subsidiary of state-owned listed company-- Fujian FURI Electronics Co., Ltd. And was established in 2006 April, which the registered capital is 100 Million RMB. MRLED is a national level and high & new technology enterprise which specialize in designing, researching, manufacturing and selling all kinds of LED displays.

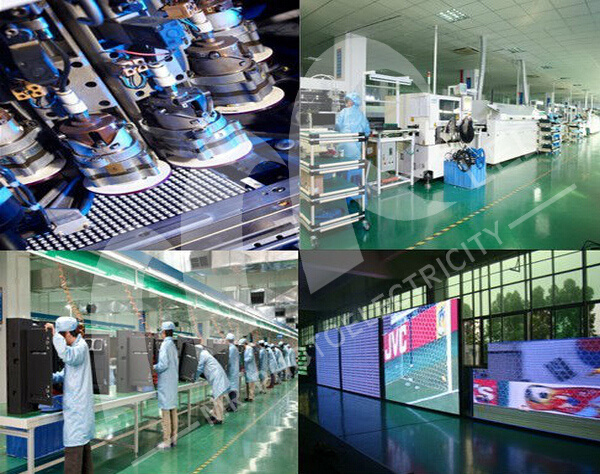

Experienced nine years of development, nowadays MRLED own its factory workshop area about 30, 000sqm, monthly capacity is 8000sqm, the number of employees more than 800. Company has the international first-class technology development talents and advanced production equipment, a comprehensive standardized management, product technology and quality is in the forefront between the similar products in domestic market. Also enjoy good reputation in the global market.
MR LED' products widely used in outdoor advertising, cultural and recreational activity, stadium, stage background rental, With its full color LED displays advantages, from the design, productions, installation to the maintenance, Use of comprehensive integration solutions, effectively reduce the overall cost for customers, so as to create more value for customers.
In past 8 years, MRLED service team almost traveled in all over the world, always uphold the core values of "Professional, Team, Integrity, Effectiveness, Communication", provide professional, caring, attentive after-sales service for global customers. Nowadays, MRLED's products selling to over 400 cities in autonomous regions and 34 provinces in China by virtue of high reliability and cost performance, earned thousands of customers, and also had built long term business relationship with the more than 90 countries' customers, like in USA, Germany, Spain, Portugal, Thailand, Korea, Poland, Italy etc. MRLED with its reliable quality, excellent service and good faith strives for realism style, won the user's high praise from all walks of life. No matter what's the major events & Competition venues in domestic and overseas, which like in the Guangzhou Asian games, the Shanghai world expo, each big TV station in domestic, railway stations, world beach volleyball tour, and Sydney autodrome, etc. All of them have a figure of MRLED.
