Pixel Configuration:
1R,1G,1B
Pixel Pitch:
6mm
Scanning Mode:
1/8 Scan
Pixel Density:
27,777 dots / m²
Display Function:
Video Display
Tube Chip Color:
Full Color
IP Rating:
IP43
System Operating Platform:
WIN XP
Certification:
CE
Application:
Advertising
Product Description

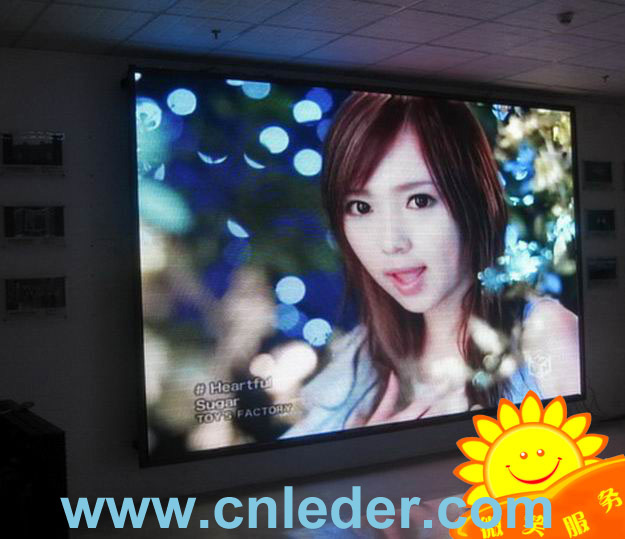

Indoor Full Color Advertising LED Screen Display (pH6):
1) Relatively low cost
2) Stable capability
3) High brightness
4) Good after-sales
5) wholesale.
ITEMS
PARAMETERS
Pixel Pitch
6mm
Size of Module
192× 96mm
Density of Pixel
27777/m 2
Pixel Composition
SMD 3 in 1
LED Encapsulation
SMD3528
Resolution of Module
32× 32
Power Consumption of Module
≤ 22W
The Optimum View Distance
7.5-20m
The Optimum View Angle
160 o (H) / 160 o (V)
Maximum Power Consumption
1950 W/m 2
Size of Cabinet
768× 576mm
Resolution of Cabinet
128× 96
Weight of Cabinet
30Kg
Driving Method
1/8 Scan Constant Driving
Frame Frequency
≥ 60Hz
Refresh Rate
≥ 300Hz
Luminance of White Balance
≥ 2500cd/m 2
Environment Temperature for Working
20-50 Celsius degree
Working Voltage
220V± 10%(or)110V± 10%
Mean Time Between Failure
> 10000(hours)
Life Span
> 100000(hours)
Out-of-Control Rate
< 0.00003
Input Signal
RF S-Video etc.
Brightness Adjustment
256 levels of each color(R G B)can be adjusted automatically and 100 levels of each color can be adjusted manually
Control System
PCTV non-linear editing card + DVI display card + main controlling card + optic fiber transmission(Optional)
Transmission Distance
Within 100m, network transmission is applied; if a relay (active) is added the distance can be 100m longer. Optical fiber transmission: single mode fiber≤ 15Km; multi-mode fiber≤ 500m
Shenzhen Leder Electronics Co., Ltd. Locates in E Building, the new world of Science and Technology Industrial Park, XiaShiJia, Gongming Street Guangming New Area, ShenZhen, Guangdong, China. LEDER is the high & new technology enterprise specializing in the Research & Development of LED displaying products, production, sales, engineering service, etc.
Based on more than 10 years of outstanding development, LEDER becomes one of the most advanced LED display manufacturers in China and also one of the biggest professional LED display manufacturers in Southern China.
With modern workshop for electronic processing, assembling, adjusting and aging, LEDER ensures the production capability of 20000 m2 LED display for all types yearly, and is able to provide one package service for our clients from consultant, production, installation, adjustment & test, training to after service.
LEDER positively practices the environmental protection and energy saving. In 2008, LEDER firstly launched OUTDOOR SMD (5050, 5060) 3IN1 FULL COLOR LED DISPLAY. Solved 3 difficult problems on outdoor SMD LED Displays successfully - brightness, heat extraction and water proofing, and made-up deficiencies of the traditional LED Display of small viewing angle, module's nonuniform color, large power consumption, overweight, and so on. In 2009, LEDER brought out LED lighting products: Flexible LED video strip, LED flexible strip, LED video pels light, LED module^^, which attracts batches eyes and gains very good comment from experts and audients.
Since the foundation, LEDER has been insisting the tenet of "Build first-class brand, win with superior quality and service", and has actively conducted the ISO 9001 system, its products have been awarded certificates such as CE, RoHS. Besides owning a few of independent core technology and patents, LEDER firstly built up the enterprise standard, which effectively promotes the healthy development of Chinese LED display industry. Successively, LEDER undertakes batches of high quality projects in domestic and oversea. Now LEDER has jumped to be the biggest professional LED display manufacturer in ShenZhen, and has set up its leading position in optoelectronic industry, and to be as sponsors at the 16th Asian Games.
LEDER's General Manager has been directly working on the management of R&D, production, engineering, and after-service for more than 15 years. He has experienced the stage of starting, developing and maturing of China's LED Display industry. He would like to cooperate with all customers, leading all of LEDER staffs, to witness the prosperity of LEDER and LED Display industry together.
"Share our successful happiness with our clients" is the business concept we always keep. With your continuing care and support, we, together enter to LED products' energy saving, colorful, and bright future.
