North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Ambient Temp:
-40 to +50
Driver:
Taiwan Meanwell
Net Weight:
7.5kg
Color Temperature:
Cool White
Lamp Body Material:
Aluminum Alloy
IP Rating:
IP66
Certification:
RoHS
Product Description

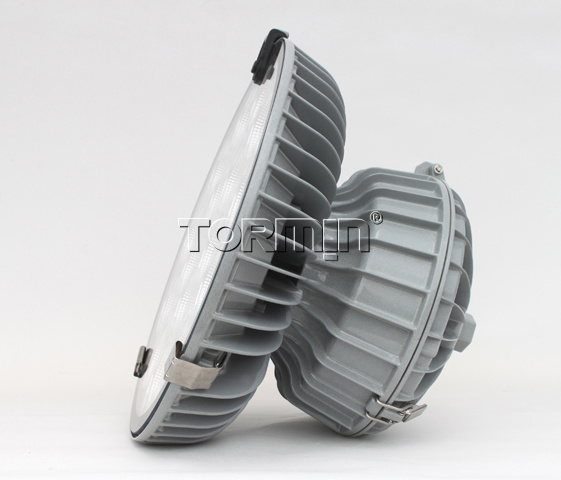

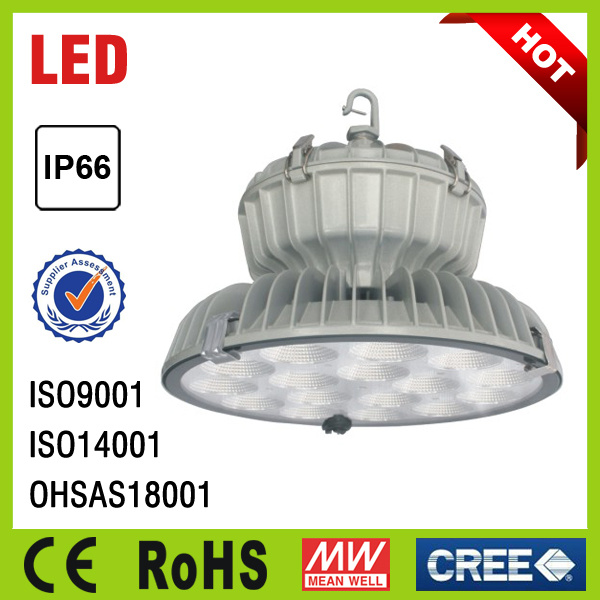

ZY8501 Series High Power LED High Bay light
IP Code: IP66 Ambient temp.: -40ºC to +50ºC

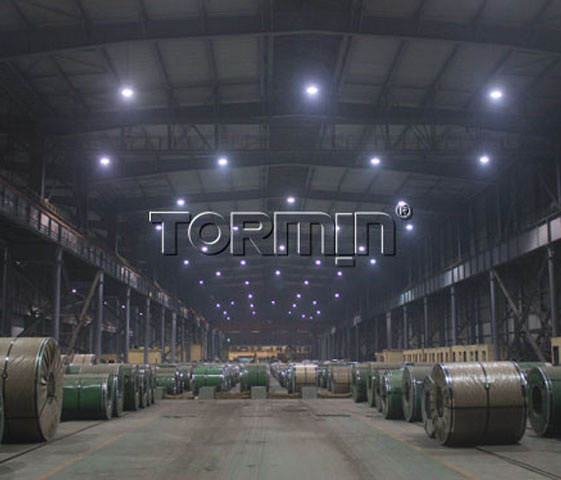

Application The product is suitable for use in power station, petrochemical industry, metallurgy and other indoor and outdoor places.
Characteristics 1. Especially designed for high bay, tall roof, It efficiently utilize the lightto 95%.Glare free, have a good performance of illuminance uniformity. 2. Floodlight or spotlight is both available according to mounting height.(8-15meters: floodlight, >15meters: spotlight) 3. It adopts American CREE LED as light source, can save 60% or moreon energy than the metal halide lamp. 4. The light source is separated from the electrical appliance. This splitstyle with the high efficiency radiator have solved the heating-upproblem so that ensure the 100,000 hours LED lifespan. 5. Equipped with world top ranking brand, Taiwan Meanwell electricalappliance with power factor 0.98, make the lamp's performance morestable and efficient. 6. The locking device on the bracket will keep the lamp from shift ortrembling during harsh vibration. 7. The shell adopts high-tech surface spraying technology, abrasionresistance and corruption, waterproof, dustproof, suitable to be used inall kinds of environments 8. Quick opening lid, easy to maintain.
Main specification
Input Voltage
90-305VAC / 127-431VDC
Output Voltage
54VDC
Frequency
50Hz / 60Hz
Ingress Protection
IP66
Anti Corrosion Grade
WF2
Insulation Grade
I
Space Height Ratio
1.8(Spotlight), 3(Floodlight)
Thread
G3/4''
Leading-in cable diameter
Φ8mm -Φ14mm
Dimension
Φ380x268.5mm
Net Weight
7.5Kg
Ordering reference
Ordering Reference
Light Source
Rated wattage (W)
Light output (lm)
Equivalent to
MH
LVD
HP
ZY8501-L60
LED
60
8,194
150W
135W
175W
ZY8501-L80
LED
80
10,016
175-250W
165W
250W
ZY8501-L100
LED
100
11,568
250W
200W
250-400W
ZY8501-L120
LED
120
13,310
250-400W
250W
400W
Metal Halide Lamp: MH Electrodeless Lamp: LVD High Pressure Mercury Lamp: HP
