LED Encapsulation:
SMD3528
Module Size:
250X250mm
Cabient Size:
500X500mm
Cabinet Material:
Die-Casting Aluminum
Usage:
Indoor Rental
Tube Chip Color:
Full Color
Display Function:
Video Display
Pixel Configuration:
1R,1G,1B
Display Type:
LED Video Display
Application:
Shopping Guide
IP Rating:
IP43
Certification:
ETL
Pixel Pitch:
6.25mm
Pixel Density:
25600dots/Sq.M
Scanning Mode:
1/10 Scan
System Operating Platform:
Win XP,Win 2000,98,Nt
Product Description
P6.25 Full Color LED Video Display for indoor /outdoor rental or fixed install, with die-casting aluminum cabinet of 500x500mm and 500x1000mm, high brightness,good performance, competitive cost, sold well and popular in the market this year
Product Features:
1. SMD led encapsulation confirm wide view angle and good uniformity,eyes friendly,close view distance
2. Low power consumption,energy saving, long life span>100000Hours
3. Aluminum cabinet ensure lightweight,easy to install and dismantle
4. Easy and quick to assemble without tools in short time
6.Widely used for stage, concert ,show, banquet, wedding background,rental led display

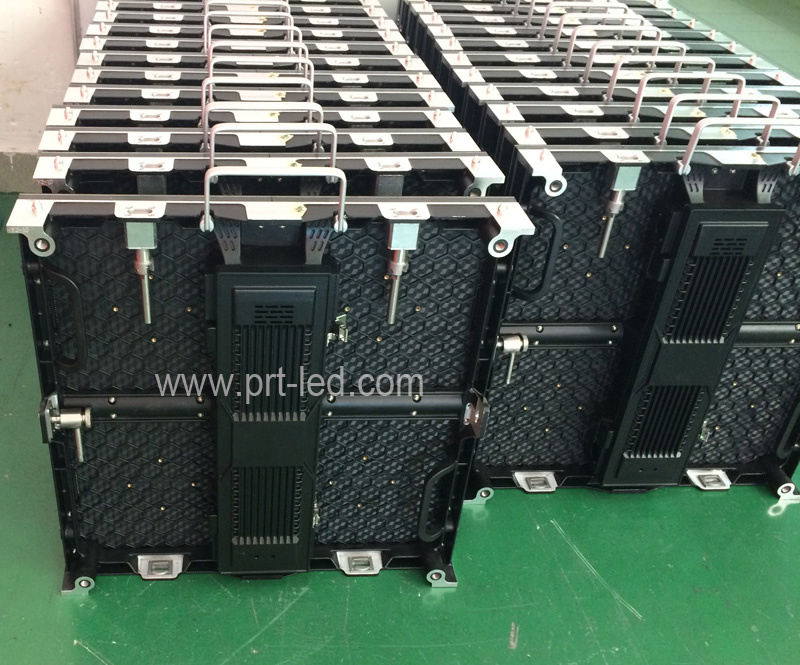

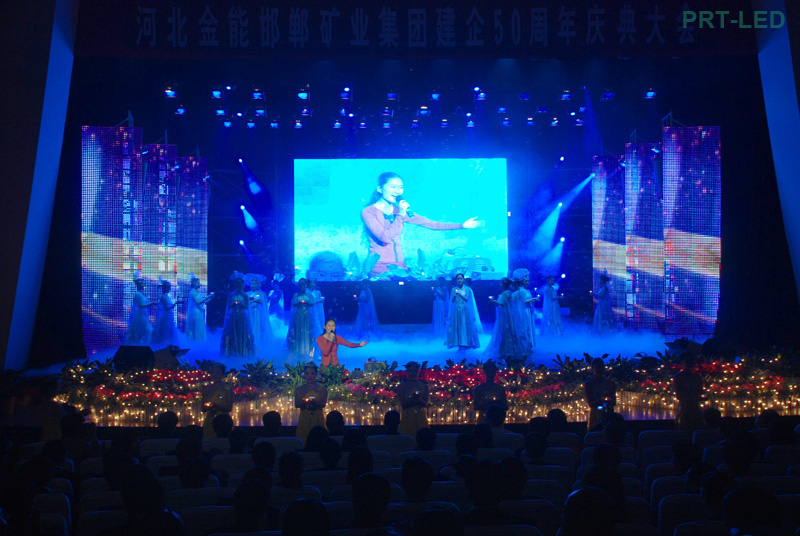

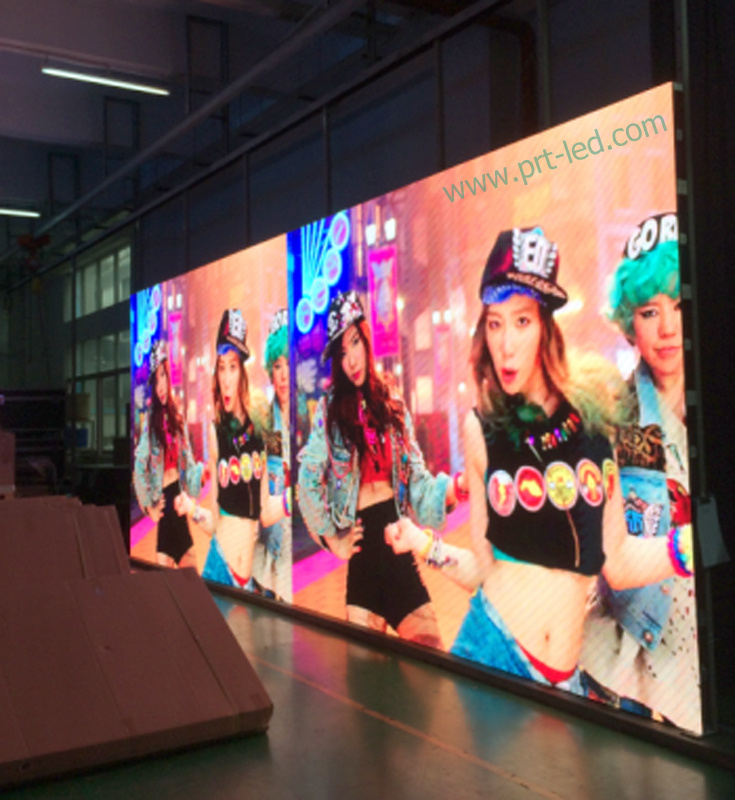

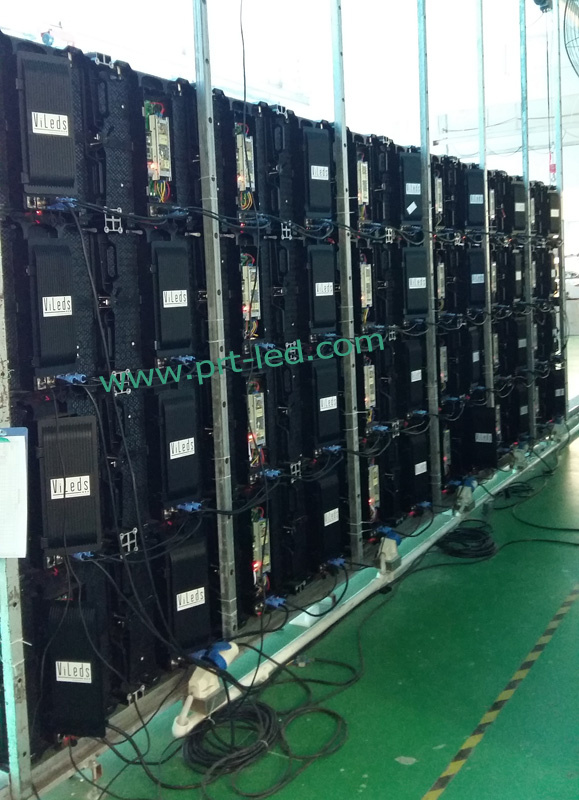

More pictures for reference:
P6.25 Indoor full Color LED Screen Specification
Pixel pitch
6.25mm
Size of module
250mm*250mm
Resolution of module
40x40
Size of cabinet
500mm*500mm*80mm
Resolution of cabinet
80x80
Weight of Cabinet
8KGS
Brightness
>2000cd/sq.m
Density
25600dots/sq.m
Best viewing angle
140 /140
Pixel Configuration
1R1G1B
Best viewing distance
4-60M
Maximum power consumption
<700W/sq.m
Driving method
1/10 scan
Control method
Synchronization
Gray scale
16 bits
Colors
10.7Million
Color temperature
6500k
Working voltage
AC220V/110V±10%
Working temperature
-20ºC~+50ºC±10%
MTBF
>10,000 hours
Frame frequence
≥60Hz
Refresh frequence
>1920Hz
IP grade(Front/Back)
IP65/IP54
Life Span
100,000 hours
Data transafer method
RJ45
Effectivce Communication Distance(without relay)
Unshielded twisted pair net line transmission distance:100M, max transmission distance:130M; Multi-mode optic fiber: 500M; Single-mode optic fiber: 10KM
Systems operating platform
WINDOWS(WINXP,WIN7/8), and interfaces for secondary development
