| Price: | US $ 650-790/Square Meter |
|---|---|
| Trade Terms: | FOB,EXW |
| Min Order: | 1/Square Meter |
| Pay Type: | T/T,Western Union |
| Prod Model: | SH-P10-OD |
|---|---|
| Markets: | North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Cabinet Dimension: | 960*640mm |
| Cabinet Material: | Die-Casting Aluminium |
| Cabinet Resolution: | 960*640mm |
| Cabinet Weight: | 22kg |
| Temperature Range: | -15~60°c |
| Humidity Range: | 10%~90%Rh |
| Tube Chip Color: | Full Color |
| IP Rating: | IP65 |
| Pixel Pitch: | 10mm |
| Pixel Configuration: | 1R, 1G, 1B |
| Display Function: | Video Display |
| Average Power Consumption: | 350W / m² |
| Pixel Density: | 10000 dot / m² |
| Scanning Mode: | 1/4 Scan |
| Display Type: | LED Video Display |
| Application: | Advertising |
| Certification: | FCC |
| Module | NO. | Item | Parameter |
| 1 | Module Model | SH-P10(Outdoor) | |
| 2 | Pixel pitch | 10mm | |
| 3 | Module dimension | 160mm*320mm | |
| 4 | Module resolution | 16*32dots | |
| 5 | LED constitution | SMD 3 in 1 (3535) Nationstar | |
| 6 | Pixel configuration | 1R1G1B | |
| 7 | Module Power consumption | 32.5W/PCS | |
| 8 | Brightness | ≥6000nits | |
| 9 | Ingress protection | IP65 | |
| Cabinet | 1 | Dimension | 960mm*640mm*80mm |
| 2 | Physical resolution | 96*64dots | |
| 3 | Module quantity | 12PCS | |
| 4 | Weight | 20kg/PCS | |
| 5 | Material | Die-casting Aluminum | |
| 6 | Driving method | Constant current+1/2 scan | |
| 7 | Brightness | ≥6000nits | |
| 8 | Max power consumption | 630W/SQM | |
| 9 | Average consumption | 320W/SQM | |
| 10 | Cabinet power consumption | 390W/PCS | |
| 11 | Refresh frequency | >1000HZ | |
| 12 | Gray level | 1021~16384 | |
| 13 | Input Voltage | AC100-120V AC200-240V | |
| 14 | Power supply | 5V/60A 2 PCS | |
| 15 | Viewing angle | 120° | |
| 16 | Working environment | Temperature: -20°C~ 80°C | |
| Humidity:10%~90%RH | |||
| 17 | Control system | Synchronous control system | |
| Linsn/ Nova | |||
| 18 | Input signal | AV S-VIDEO VGA DVI HDMI YPBPR SDI DP | |
| 19 | Ingress protection | IP65 | |
| 20 | Certificate | CE SGS FCC | |

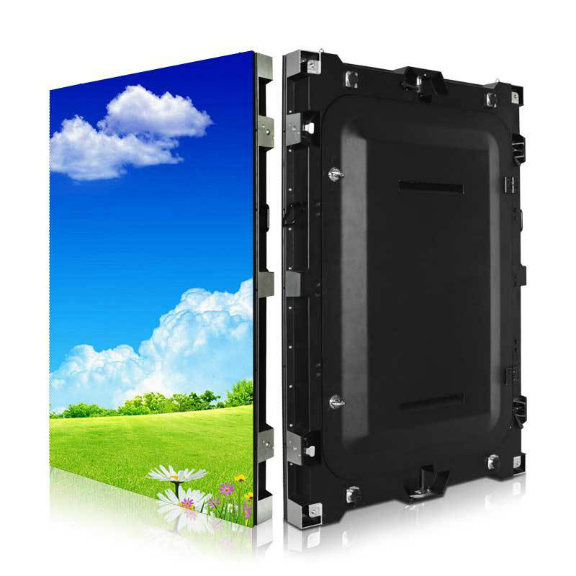

1.Cabinets are made of die-casting aluminium,can be spliced with no crack.
2.Tools isn't needed for installation.
3.The SMD three-in-one technology with high brightness makes the display have a ultra-wide view & vivid image when in use.
4. Work normally without air conditioning for low powe consumption.
5.Suitable for Outdoor application,big square,shopping malls,railway stations,Airport,stage renting,etc.
1. Package: Anti-shaking wooden cabinet, Carton package.
2. Shipping freight are quoted according to your requests.
3. Payment: T,T / West Union.
4. Shipping port: Shenzhen, Mainland China.
5.Delivery time:3-15 working days.
6.Warranty time:2 years,lifelong maintaining.
