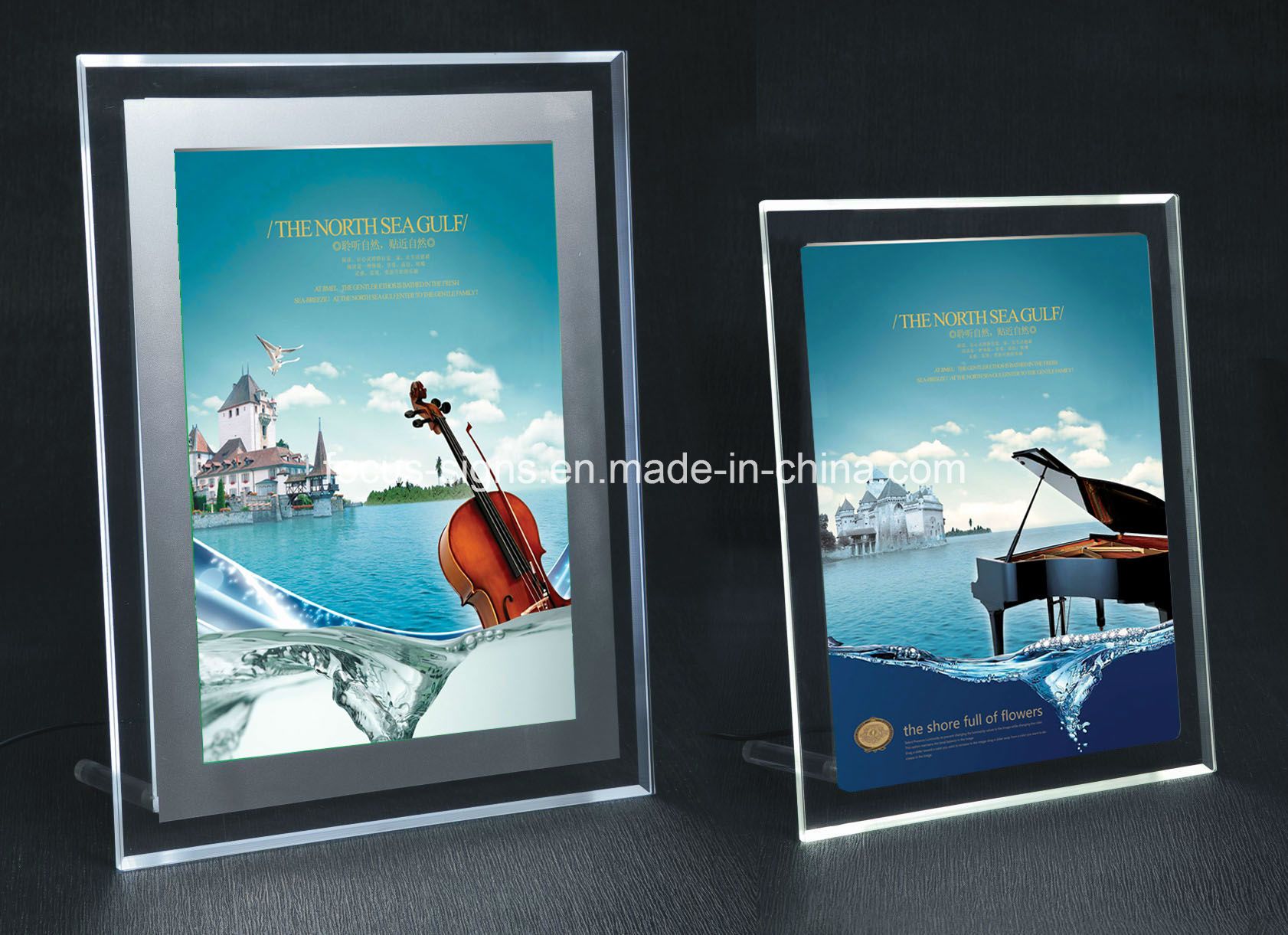

FOCUS crystal light box series are with 11 mm thickness, high quality acrylic panel used as light guiding panel ( LGP ), LED or SMD LED as light source. Transparent acrylic frame looks like a crystal, which is very popular in cafe, bar, hotel, shopping mall, etc.
Specifications: Single side Crystal LED Light Box
1) Only 11mm thickness, super slim
2) LED illuminated
3) High brightness latest SMD LED # 2835 or # 3528 as light source.
4) Very easy to change the graphics by two ways, one is with magnetic front cover, the other is
With the screws.
5) CE certificated adapter.
6) Double side or single side is available.
7) High quality acrylic sheet as LGP 3D engraved or silk screen printing
*Appears to be a panel or picture frame rather than a box on the wall.
*Clear frame, as fine as crystal, smooth, even, with a brilliant, natural light spread.
*LED optical-panel used for a great even illumination.
*Easy to change and install graphic.
*Can be mounted or hung on the wall.
*Stylish designed to grab attention and maximize promotional effects.
*Perfect for indoor promotional application: Banks, hotels, restaurants.
Mode |
Body size LxWxT(mm) |
Image size (mm) |
Visual size (mm) |
Qty/Ctn pcs |
G.W/Ctn (kg) |
Type of Tube |
Ctn.size (mm) |
Power supply |
FS-C03 |
119x157x8 |
89 x 127 ( 5" ) |
79 x 117 |
1 |
0.4 |
LED 1W |
139x177x18 |
AC 110-230V 50HZ/60Hz |
FS-C03 |
157x208x8 |
127 x 178 ( 7" ) |
117 x 168 |
1 |
0.6 |
LED 1.6W |
177x228x18 |
FS-C03 |
181x233x8 |
151 x 203 ( 8" ) |
141 x 193 |
1 |
0.8 |
LED 1.9W |
201x253x18 |
FS-C03 |
233x284x8 |
203 x 254 ( 10" ) |
193 x 244 |
1 |
1 |
LED 2.3W |
253x304x18 |
FS-C03 |
335x233x8 |
305 x 203 ( 12" ) |
295 x 193 |
1 |
1.4 |
LED 2.9W |
355x253x18 |
FS-C03 |
240x327x8 |
210 x 297 ( A4 ) |
200 x 287 |
1 |
1.3 |
LED 2.8W |
260x347x18 |
Focus Signs Industry Co., Ltd (Huiling Advertising ) established in 2003, is a leading manufacturer in indoor & outdoor illuminated sign / signage, poster stand, snap frame.
Our main markets in Middle East, Europe, South Asia and some countries in Africa.
As an original factory, competitive price and good quality price will be offered, we have a strong team in tech. Reseaching, sales, production and after-sales service.
Huiling Focus Signs people just here for you.
