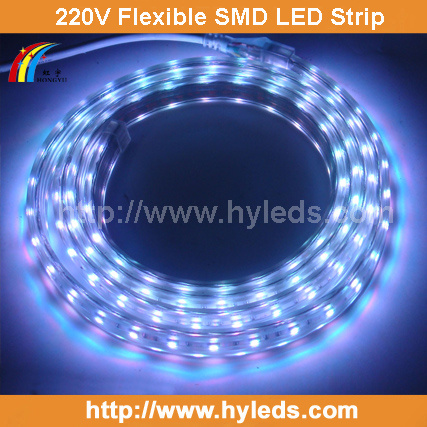

220V High Voltage Flex SMD LED Strip Light
1. High Voltage LED Strip
2. Max Length 100M
3. SMD 5050 LED Strip
4. CE & RoHS
High VOLTAGE LED FLEX STRIP
3rd Generation LED strip light
High voltage LED flex strip(220V or 110V) is the 3rd generation decorative strip light, that is made with 2 wires (RGB 4 wires) and SMD LED strip embedded in PVC tube.
Features
1. Can be run in 220V or 110V without extra adaptor or power source.
2. Can be max run 100 meter and also be cut or connected in every meter.
3. PVC tube provides good waterproof and can be used both indoor & outdoor. 4. 3528 & 5050 LED provide greater brightness compared to 3mm LED used in rope light.
5. Solid-state for high vibration resistance and good flexibility for any shape.
6. Independent LED, one LED broken will not affect next LEDs (3538 double row and 5050).
Applications
1. Architectural decorative lighting
2. Archway, canopy and bridge edge lighting
3. Amusement park, theater and aircraft cabin mood lighting
4. Emergency hallway lighting
5. Auditorium walkway lighting
6. Stairway accent lighting
7. Concealed lighting
8. Backlighting for signage letters
9. Channel letter lighting
10. Emergency exit path lighting
11. Cove lighting
Notes
High Volt LED strip is with white FPC
Actual product may vary from pictures and specifications are subject to change without notice. We are not responsible for errors or omissions regarding products on this site. Reproduction in whole or in part in any form or medium without expressed written permission of Zhongshan Hongyu EL-TECH Co., Ltd is prohibited...
SMD3528 SINGLE ROW LED series: 50LEDs/meter |
|
|
|
|
|
|
|
MODEL NO. |
Color |
Dimension |
LED QTY |
Voltage |
Current |
Power |
Water Proof |
Max Length |
Cutting Unit |
Packing Size |
Weight |
(mm) |
Meter |
(A/m) |
(w/m) |
(cm) |
Net/Gross |
HY-HV3528-50-W |
White |
10.5x7mm |
50 |
220V |
≤ 0.02 |
≤ 4.4 |
IP65 |
100M |
1M |
33.5*33.5*14/100M |
8.7/9.2Kg |
HY-HV3528-50-WW |
Warm White |
10.5x7mm |
50 |
220V |
≤ 0.02 |
≤ 4.4 |
IP65 |
100M |
1M |
33.5*33.5*14/100M |
8.7/9.2Kg |
HY-HV3528-50-Y |
Yellow |
10.5x7mm |
50 |
220V |
≤ 0.02 |
≤ 4.4 |
IP65 |
100M |
1M |
33.5*33.5*14/100M |
8.7/9.2Kg |
HY-HV3528-50-R |
Red |
10.5x7mm |
50 |
220V |
≤ 0.02 |
≤ 4.4 |
IP65 |
100M |
1M |
33.5*33.5*14/100M |
8.7/9.2Kg |
HY-HV3528-50-G |
Green |
10.5x7mm |
50 |
220V |
≤ 0.02 |
≤ 4.4 |
IP65 |
100M |
1M |
33.5*33.5*14/100M |
8.7/9.2Kg |
HY-HV3528-50-B |
Blue |
10.5x7mm |
50 |
220V |
≤ 0.02 |
≤ 4.4 |
IP65 |
100M |
1M |
33.5*33.5*14/100M |
8.7/9.2Kg |
SMD3528 DOUBLE ROW LED series: 2X50LEDs/meter |
|
|
|
|
|
|
MODEL NO. |
Color |
Dimension |
LED QTY |
Voltage |
Current |
Power |
Water Proof |
Max Length |
Cutting Unit |
Packing Size |
Weight |
(mm) |
Meter |
(A/m) |
(w/m) |
(cm) |
Net/Gross |
HY-HV3528-50X2-W |
White |
15x7mm |
100 |
220V |
≤ 0.04 |
≤ 8.8 |
IP65 |
100M |
1M |
34*34*25.2/100M |
12.1/12.8Kg |
HY-HV3528-50X2-WW |
Warm White |
15x7mm |
100 |
220V |
≤ 0.04 |
≤ 8.8 |
IP65 |
100M |
1M |
34*34*25.2/100M |
12.1/12.8Kg |
HY-HV3528-50X2-Y |
Yellow |
15x7mm |
100 |
220V |
≤ 0.04 |
≤ 8.8 |
IP65 |
100M |
1M |
34*34*25.2/100M |
12.1/12.8Kg |
HY-HV3528-50X2-R |
Red |
15x7mm |
100 |
220V |
≤ 0.04 |
≤ 8.8 |
IP65 |
100M |
1M |
34*34*25.2/100M |
12.1/12.8Kg |
HY-HV3528-50X2-G |
Green |
15x7mm |
100 |
220V |
≤ 0.04 |
≤ 8.8 |
IP65 |
100M |
1M |
34*34*25.2/100M |
12.1/12.8Kg |
HY-HV3528-50X2-B |
Blue |
15x7mm |
100 |
220V |
≤ 0.04 |
≤ 8.8 |
IP65 |
100M |
1M |
34*34*25.2/100M |
12.1/12.8Kg |
SMD5050 SINGLE ROW LED series: 48LEDs/meter |
|
|
|
|
|
|
|
MODEL NO. |
Color |
Dimension |
LED QTY |
Voltage |
Current |
Power |
Water Proof |
Max Length |
Cutting Unit |
Packing Size |
Weight |
(mm) |
Meter |
(A/m) |
(w/m) |
(cm) |
Net/Gross |
HY-HV5050-48-W |
White |
15x7mm |
48 |
220V |
≤ 0.06 |
≤ 13.2 |
IP65 |
100M |
1M |
34*34*25.2/100M |
12.8/13.5Kg |
HY-HV5050-48-WW |
Warm White |
15x7mm |
48 |
220V |
≤ 0.06 |
≤ 13.2 |
IP65 |
100M |
1M |
34*34*25.2/100M |
12.8/13.5Kg |
HY-HV5050-48-Y |
Yellow |
15x7mm |
48 |
220V |
≤ 0.06 |
≤ 13.2 |
IP65 |
100M |
1M |
34*34*25.2/100M |
12.8/13.5Kg |
HY-HV5050-48-R |
Red |
15x7mm |
48 |
220V |
≤ 0.06 |
≤ 13.2 |
IP65 |
100M |
1M |
34*34*25.2/100M |
12.8/13.5Kg |
HY-HV5050-48-G |
Green |
15x7mm |
48 |
220V |
≤ 0.06 |
≤ 13.2 |
IP65 |
100M |
1M |
34*34*25.2/100M |
12.8/13.5Kg |
HY-HV5050-48-B |
Blue |
15x7mm |
48 |
220V |
≤ 0.06 |
≤ 13.2 |
IP65 |
100M |
1M |
34*34*25.2/100M |
12.8/13.5Kg |
HY-HV5050-48-RGB |
R. G. B |
15x7mm |
48 |
220V |
≤ 0.06 |
≤ 13.2 |
IP65 |
100M |
1M |
34*34*25.2/100M |
12.8/13.5Kg |
