| Prod Model: |
Cn |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| All Pixel Pitch: |
3.9/4.8/5.2/6.9mm |
| Pixel Configuration: |
RGB3in1 SMD2121/3528 |
| Viewing Angle: |
140°/120° |
| Refresh Rate: |
>1920Hz |
| Gray Scale: |
>14 Bits |
| Protection Level: |
IP43 |
| Power Supply: |
AC 110-220V,50/60Hz |
| Working Environment: |
Temperature-10-+50 Degree,Humidity 10-90%Rh |
| Life Time: |
>50,000 Hours(>70% Luminous Output) |
| Certificate: |
CE,RoHS |
| Tube Chip Color: |
Full Color |
| Display Function: |
Video Display |
| Application: |
Shopping Guide |
| Pixel Configuration: |
1R,1G,1B |
| IP Rating: |
IP43 |
| Certification: |
RoHS |
| System Operating Platform: |
WIN XP |
| Scanning Mode: |
1/6 Scan |
| Pixel Pitch: |
10/12mm |
| Pixel Density: |
6400-10000 Dots/M² |
Product Description
Cn10/12 Overview:

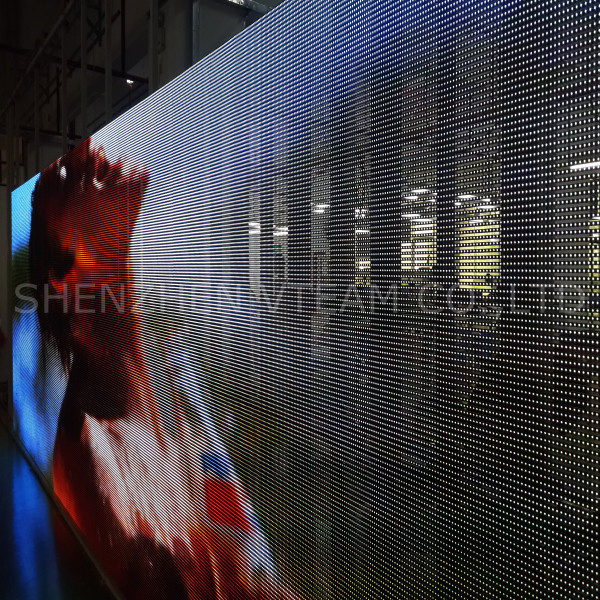

Cn 10/12 are rental led curtain displays, with lightweight, super-thin, and transparent features, suiting for large led stage background use with quick set-up and take-down. It realizes precise connection, 100 % toolfree structure and high durability. Unit size 500 x 1000 mm; Weight 8 kg; Thickest part with back box only 60 mm and high transparency 45%. Upgraded Cn ensures more safe operation, stable performance and easier front and back maintenance. So, Cn is perfectly suitable for TV Station, TV studio, concert, and various rental stage background, especially in large size application for professional AV rental companies, etc.
Main Features:
1. Lightweight, convenient shipping and transportation, suiting for touring and permanent shows;
2. Precise connection, single-person set-up and take-down, no tools needed;
3. Convenient maintenance from front and back side, single panel replacement;
4. Can be curved as +/-10° , arc-shaped available;
5. Hight transparency, go through air, light, smoke without barriers;
6. Indoor and outdoor capable; Indoor with brightness 900-1500 nit, IP 43; Outdoor with brightness 5000 nit, IP 65.
|
Item Name |
Cn10 |
Cn10A |
Cn12 |
Cn12A |
|
Pixel Pitch |
10.4166mm |
10.4166mm |
12.5mm |
12.5mm |
|
LED Type |
SMD3528 |
SMD3535 |
SMD3528 |
SMD3535 |
|
Pixel Matrix/ panel |
96x48 |
96x48 |
80x40 |
80x40 |
|
Pixel Density/sqm |
9216 |
9216 |
6400 |
6400 |
|
Brightness |
900-1500 Nit |
4500 Nit |
900 -1500 Nit |
4500 Nit |
|
Driving Mode |
1/6 scan |
1/3 scan |
1/5 scan |
1/2scan |
|
Best Viewing Distance |
≥10m |
≥10m |
≥12m |
≥12m |
|
Weight/panel |
8kg |
10kg |
7.5 kg |
9.5 kg |
|
Max. Power Consumption |
200W/panel |
300W/ panel |
150W/ panel |
300W/ panel |
|
Ave. Power Consumption |
80W/ panel |
100W/ panel |
60W/ panel |
100W/ panel |
|
Protection Level |
IP43 |
IP65 |
IP43 |
IP65 |
|
Application |
INDOOR |
OUTDOOR |
INDOOR |
OUTDOOR |
|
Transparency |
50% |
50% |
55% |
55% |
|
Panel Size |
500x1000x60mm |
|
Pixel Configuration |
RGB 3in1 |
|
LED Lamp/Chip |
Silar or Epistar |
|
Viewing angle |
140°/140° |
|
Gray Scale |
≥14bit |
|
Refresh Rate |
≥1920Hz |
|
Color Space |
687 billion |
|
Input Signal |
DVI,VGA,HD-SDI,S-video,Composite,YUV,etc |
|
Input Voltage |
AC 220V±10%, 50/60Hz |
|
Power Supply |
Meanwell or G-energy with UL certificate |
|
Display Media |
Video,graphic,animation,signage,cartoon,text,etc |
|
Control System |
YDEA(showbox),Nova,PC based dynamic capture & mapping. |
|
System Operating Platform |
WINDOW98/2000/XP/7/8 |
|
Working Environment |
Temperature: -10ºC~+50ºC, humidity: 10-90%RH |
|
Warranty |
Two years |
|
Lifetime |
> 50,000 hours(to>70% luminous output) |
|
Certificate |
CE&RoHs |
