Cabinet Size:
576X576
Cabinet Material:
Die-Casting Aluminum
Module Size:
288X288mm
Module Resolution:
60X60dots
Tube Chip Color:
Full Color
Display Function:
Video Display
Pixel Configuration:
1R,1G,1B
Scanning Mode:
1/16 Scan
Display Type:
LED Video Display
Application:
Shopping Guide
Certification:
FCC
Pixel Pitch:
4.8mm
Pixel Density:
43402dots/Sq.M
System Operating Platform:
Win XP,Win 2000,98,Nt,Win7/8
IP Rating:
IP31
Product Description
Full Color P4.8 Indoor Rental LED Display with Die-Casting cabinet size 576x576mm, slim thickness and light weight, high resolution and good uniformity
1.. Made with die-casting aluminum,strong profiles with beautiful outlooking and durable
2. Slim and small cabinet size of 576× 576× 60mm,only 10.5kgs,light weight and portable
3. No fans design, no noise created, low power consumption, energy-saving
4. Flight case package,convenient to transport and collect,can move to anywhere
5. Rental design, with fast locks and aviation plugs, easy to install and dismantle without any tools, save much time for installation and maintainance

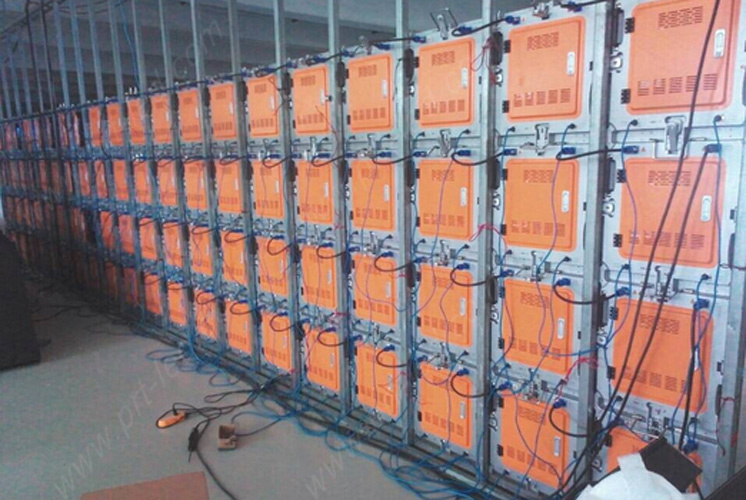

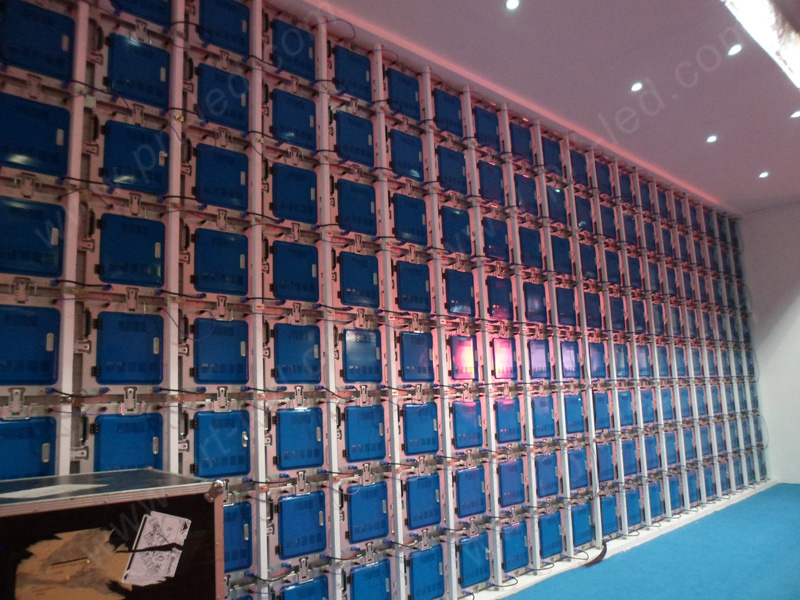

6. Can be suspend or fixed installation, Seamless splicing,perfect display effect

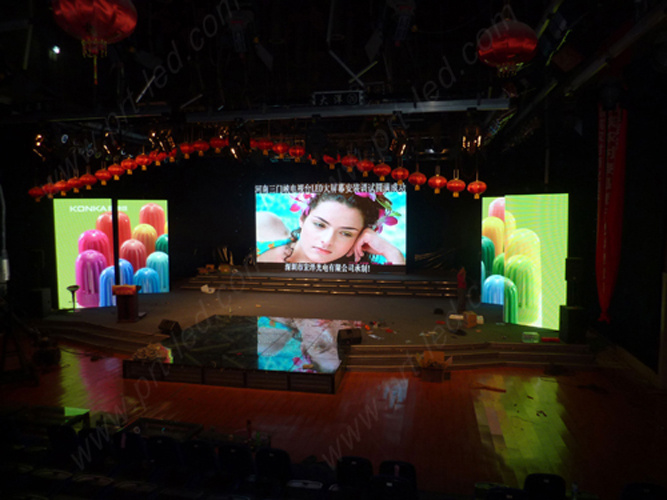

7. Widely used in public advertising, theatre, live show, live meeting, banquet, stage background etc.
P4.8 SMD3528 Indoor full Color LED Screen Specification
Pixel pitch
4.8mm
Pixel Configuration
1R1G1B
LED component
SMD3528
Size of module
288mm*288mm
Resolution of module
60x60
Size of cabinet
576mm x 576mm x 65mm
Resolution of cabinet
120x120
Material of Cabinet
Die-casting Aluminum
Weight of Cabinet
10.50KGS
Brightness
>1500cd/
Density
43402dots/
Best viewing angle
140 /140
Pixel Configuration
1R1G1B
Best viewing distance
3-50M
Maximum power consumption
1200W/
Average power consumption
640W/
Driving method
1/15 scan
Control method
Synchronization
Gray scale
65536
Colors
256*256*256
Color temperature
3200-9300k
Uniformity
97%
Working voltage
AC220V/110V±10%
Working temperature
-20ºC~+50ºC±10%
Working humidity
10% ~ 90%
MTBF
10,000 hours
Frame frequence
50/60Hz
Refresh frequence
>1920Hz
IP grade
IP31
Life Span
100,000 hours
Data transafer method
RJ45
Pratical standard
CCC TUV-CE ETL etc.
Effectivce Communication Distance(without relay)
Unshielded twisted pair net line transmission distance:100M, max transmission distance:130M; Multi-mode optic fiber: 500M; Single-mode optic fiber: 10KM
Accepting signal with video processor
PAL/NTSC/SECAM,S-Video;VGA;RGB;HDMI,DVI,Composite Video;SDI,DP etc.
Systems operating platform
WINDOWS(WINXP,WIN7/8/10), and interfaces for secondary development
