Model No.:
P3 Indoor LED Display
LED Module Size:
192mm*96mm
LEDs:
SMD2121
Brightniess:
1500mcd/Suqare Meter
LED Modules Weight:
0.2kg
Module Resolution:
64dots *32dots
Interface Type:
Hub75A
LED Modules Max Power:
18W
Tube Chip Color:
Full Color
Display Function:
Video Display
Pixel Configuration:
1R,1G,1B
Scanning Mode:
1/16 Scan
System Operating Platform:
WIN2000
Display Type:
LED Video Display
Application:
Shopping Guide
Certification:
FCC
Pixel Pitch:
3mm
Pixel Density:
111111dots/M2
IP Rating:
IP31
Product Description
Product Description

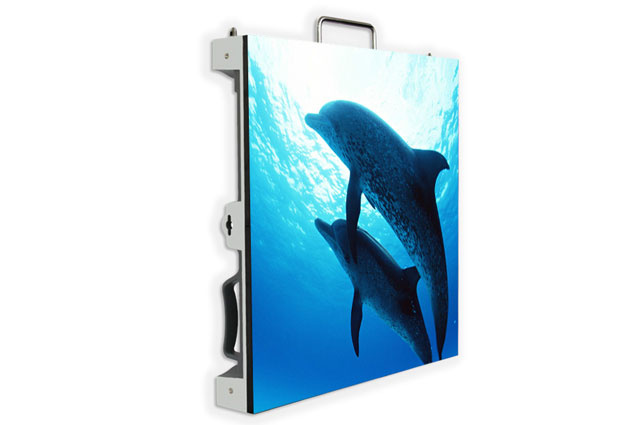

P3 Indoor Rental LED Display For Stage Video Advantages:
High resolution high precision
Large view angle
Easy to carry and fast installation
Heat dissipation and long life
Seamless tiled best results
Competative factory price
Leading rental screen enterprise in China famous brand
Famous enterprise and TV corporate enterprise
Features: 1,Super slim cabinet and maximum thickness is only 75mm. 2,Super light cabinet and it's only 9.5kg/pcs. 3,Different colors of back cover can be satisfied with people's demand in different feeling. 4,Use high-end 16-bit IC and rich and delicate color and refresh rate up to 3500HZ. 5. The cabinet has the fast rotating hanging lock and manual pressure tablets which can avoid accidental collision and dropping off and connect the screen is safer. 6,Based on unique back cover of design, according to the site conditions, it can be selected a variety of quick repairing method. 7,Cabinet is used the die-casting aluminum molding technology and beautiful and strong structure and its flatness ≤0.5mm. 8,Using Neutrik flight connector can make sure that LED screen is connected to be faster and it works more steadily. 9,Using DC cooling fan can effectively reduce the noise when it's used in indoors. 10,Support for stacking and hanging installation.
The Technical Parameters of Indoor p3 led screen SMD 3 in 1
Item
Parameter
Product model
P3-16S
Module size
192mm*96mm
Pixel pitch
3mm
Pixel density
111111dots/m2
Pixel configuration
smd 3in1
Module resolution
64dots(W)*32dots(H)
Maximum power consumption
18W
Module thickness
14.75mm
Module weight
0.16kgs
Driving method
Constant current driving
Scan mode
1/16 scan
Interface type
HUB75-A
Brightness
≥1500cd/m2
The specifications of cabinet
Cabinet size
576mm*576mm
Module quantity
18pcs
Power supply
5V/40A *3pcs
Cabinet resolution
192*192dots
Optimal viewing distance
3m~20m
Optimal viewing angle
160°(W) 120°(H)
Temperature
"Storage:-35ºC~+85ºC
Working:-20ºC~+50ºC"
System operating humility
10%-95%
The specifications of power supply
Operating voltage
AC220V±10%
Average power consumption
180W/
Maximum power consumption
≤360W/
Current
≤20mA(single LED)
The specifications of control system
Computer
Pentium4 or above
Operating system
WIN98/2000/NT/XP
Control model
Synchronization control
The specifications of the main technical parameters
Driving device
Constant current driving
Refresh rate
≥400Hz
Grey scale
RGB each 256 grade, can display 16.7M colors
MTBF
≥9000hours
Power switch
Automatic switch
Display mode
800*600/1024*768
